917319 Removing and installing control unit for reversing camera

WM 917319 Removing and installing control unit for reversing camera

Preliminary work

1. Remove side trim panel for rear luggage compartment on the right-hand side.-> 700319 Removing and installing side trim panel for rear luggage compartment - section on "Removing" Service and Repair

Removing control unit for reversing camera

1. Open the lever on the support -2- ( -A- ) and remove the control unit for the reversing camera -1- ( -B- ).





Removing control unit for reversing camera

2. Release the electric plug connection -3- ( -a- ), slide the locking mechanism to the side -C- and pull off the connector -D-.





Disconnecting electric plug connections

3. Release and pull off electric plug connections -4- ( -b- ).

Installing control unit for reversing camera

1. Plug in electric plug connections -4- until they engage securely.

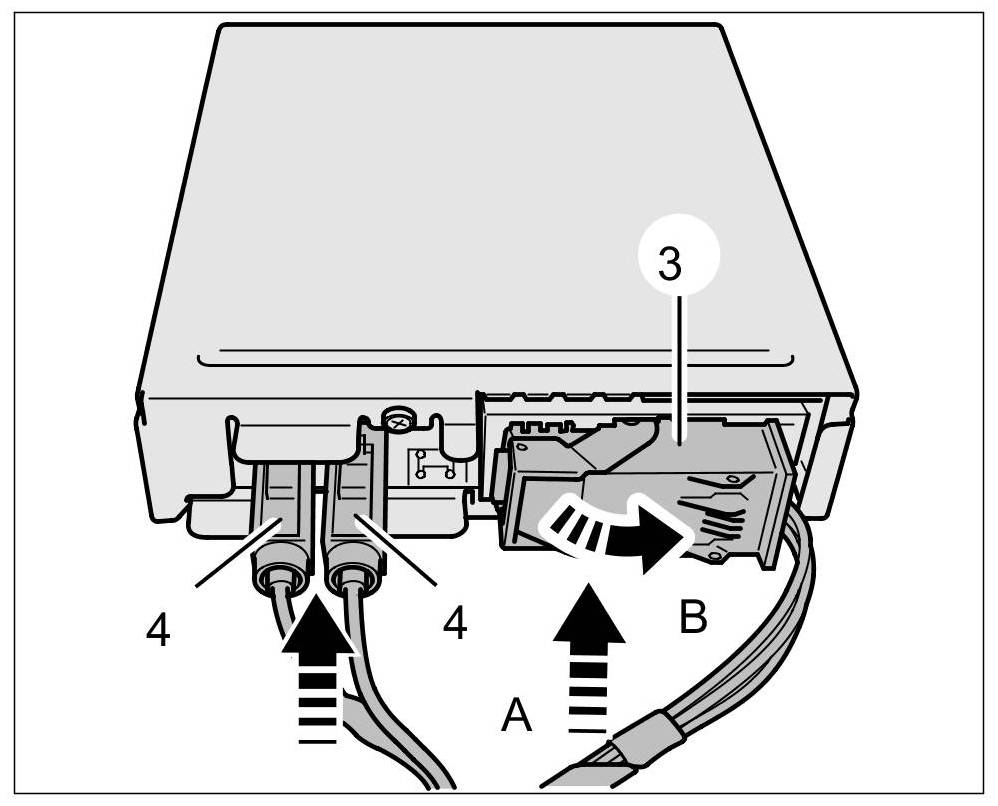

Securing electric plug connections

2. Plug in the electric plug connection -3- ( -A- ) and close the locking mechanism -B- until it locks securely.
3. Insert control unit for reversing camera -1- into the support -2- ( -C- ) and close the lever on the support -D-.





Installing control unit for reversing camera

Subsequent work

1. Secure side trim panel for rear luggage compartment on the right side. -> 700319 Removing and installing side trim panel for rear luggage compartment - section on "Installing" Service and Repair
