Control Assembly: Service and Repair

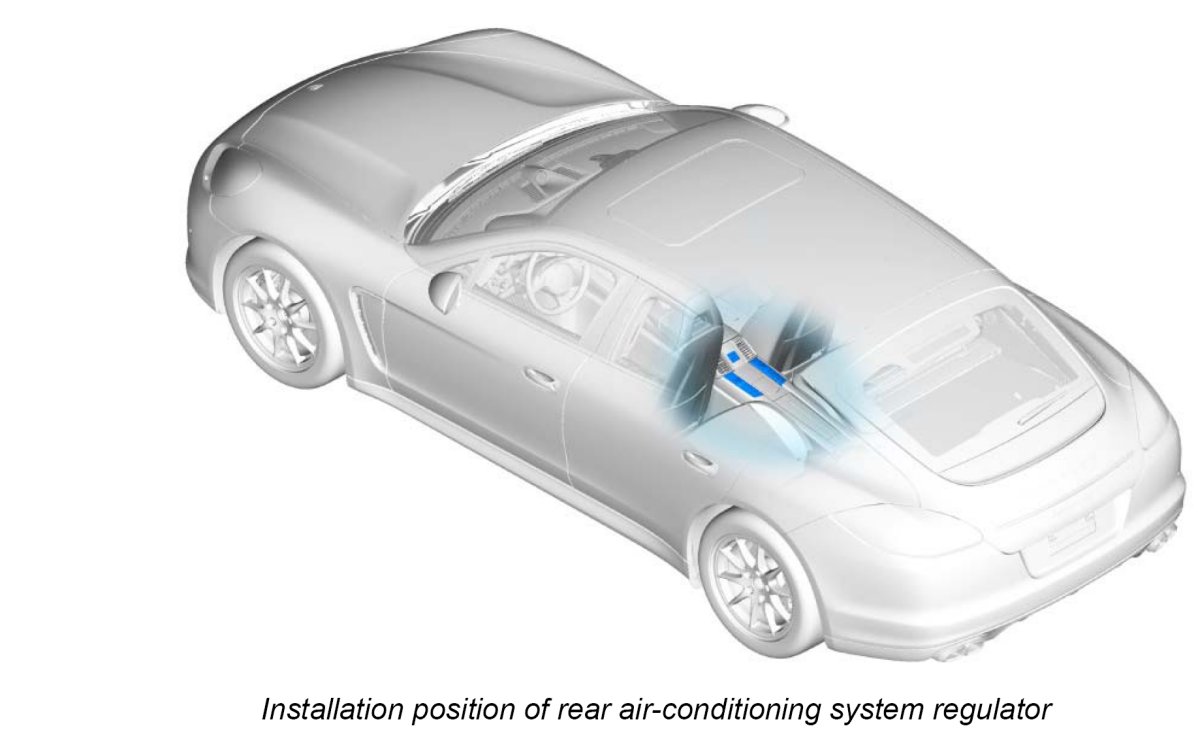

Removing And Installing Rear Air-conditioning System Regulator

Preliminary work

1. Remove air vents in rear centre console.

2. Remove cupholder in rear air-conditioning system regulator.

Removing rear air-conditioning system regulator







1. Unscrew fastening screws -1- and set them aside.

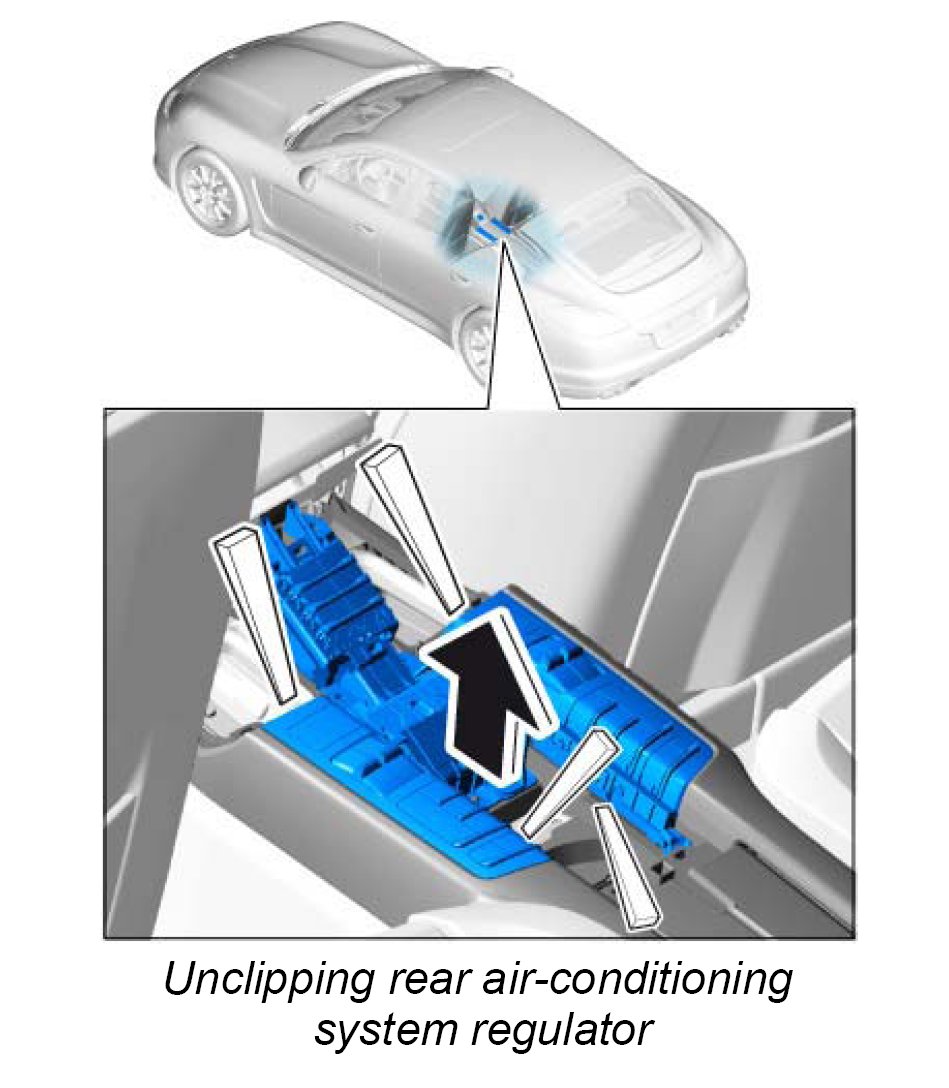

2. Insert plastic wedge at the front and sides and unclip air-conditioning system regulator -arrow-.







3. Pull air-conditioning system regulator out of the centre console.

4. Disconnect electric plug connection.

4.1. Release and pull off electric plug connection -arrow B-.

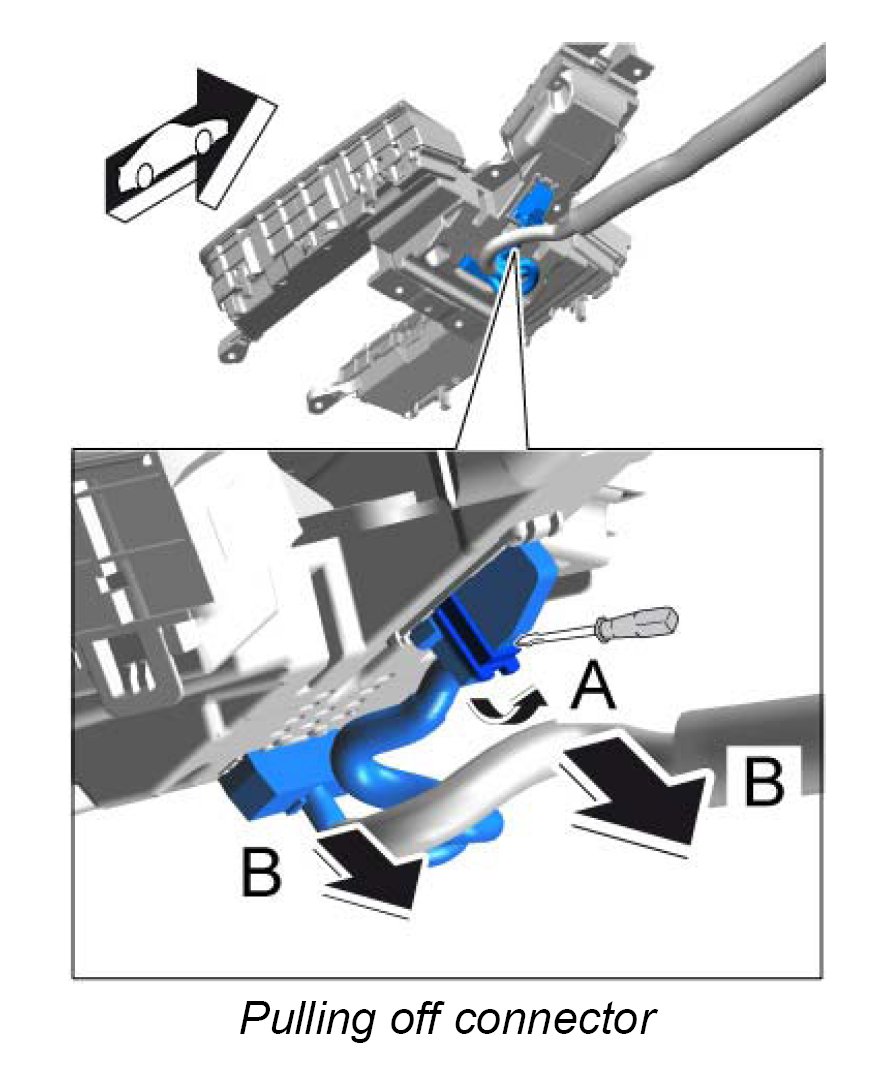

4.2. For electric plug connection with securing clip:

Release securing clip using a screwdriver.

Swivel securing clip down -arrow A- and pull off electric plug connection -arrow B-.







5. Remove air-conditioning system regulator.

Installing rear air-conditioning system regulator

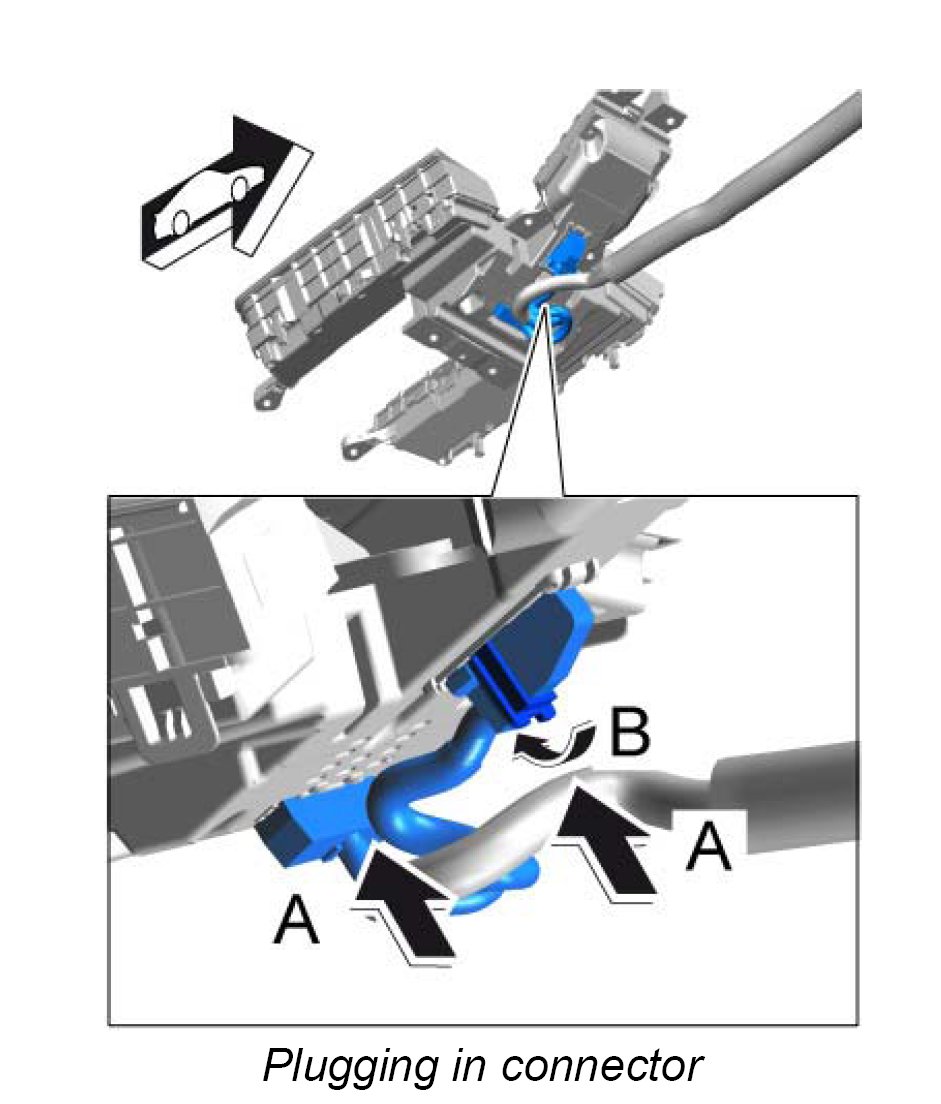

1. Connect electric plug connection.

1.1. Plug in electric plug connection with the securing clip -arrow A-.

1.2. Bend up the securing clip until the locking mechanism engages securely -arrow B-.

1.3. Plug in electric plug connection without the securing clip until the locking mechanism engages securely -arrow A-.

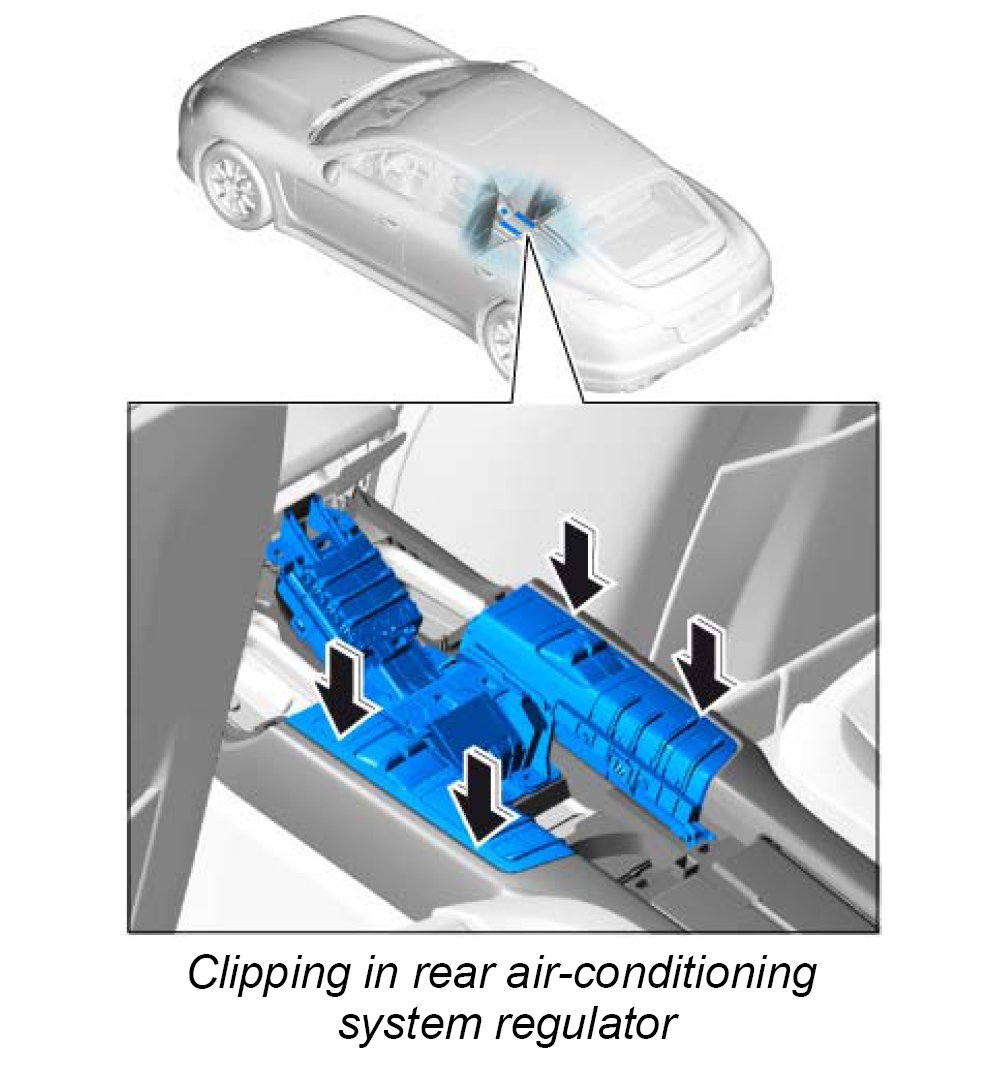

2. Position air-conditioning system regulator in the rear centre console and press it in -arrow- until the locking lugs engage securely.







3. Screw in fastening screws -1-.







Subsequent work

1. Install air vents in rear centre console.

2. Install cupholder in rear air-conditioning system regulator.
