Headlamp Washer Hose: Service and Repair

WM 927719 Removing and installing hose for headlight washer

Preliminary work

1. Remove the front apron. -> 631519 Removing and installing front apron - section on "Removing"

Removing hose for headlight washer

Removing hose for headlight cleaning system

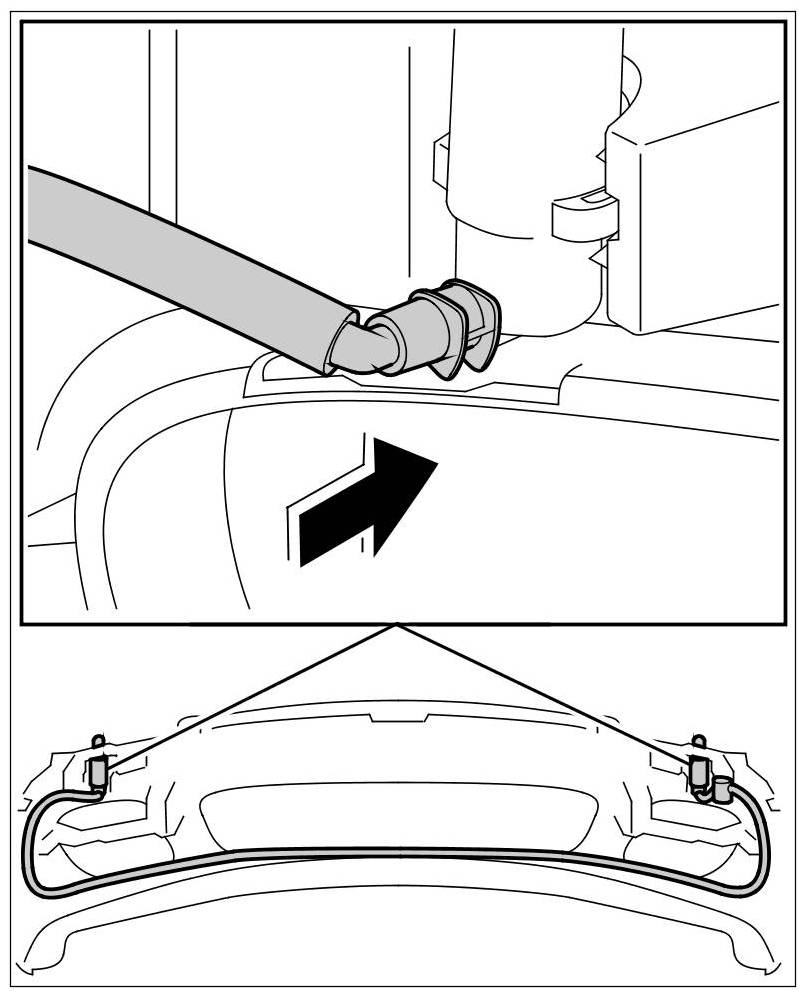

1. Pull off hose on the spray nozzles at the left and right.





Pulling off hose

2. Detach hose from the tabs on the radiator grille and the side brackets and remove it.





Detaching hose





Detaching hose at the side

Installing hose for headlight washer

Installing hose for headlight cleaning system

1. Position the hose and engage it at the tabs on the radiator grille and the side brackets.





Engaging hose





Engaging hose at the side

2. Slide the hose onto the spray nozzles at the left and right.





Sliding on hose

Subsequent work

1. Install the front apron. -> 631519 Removing and installing front apron - section on "Installing"
