Windshield Washer Pump: Service and Repair

WM 925619 Removing and installing pump for windscreen washer system

Preliminary work

1. Move right front wheel to the right.
2. Remove rear part of front right wheel housing liner. -> 505619 Removing and installing front wheel housing liner - section on "Removing" Removal and Replacement

Removing pump for windscreen washer system

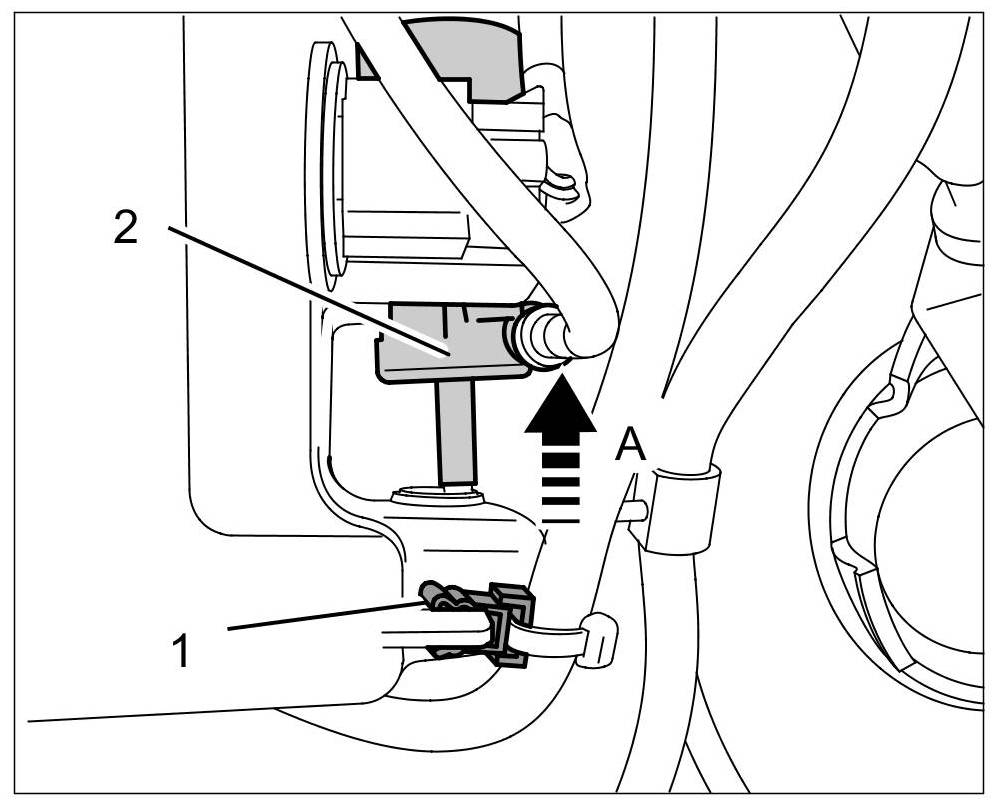

1. Remove clip on wire harness -1- and replace it if necessary.





Removing clip on wire harness

2. Pull the pump -2- up -A- and remove it from the bracket.
3. Pull off hose.





Pulling off hose

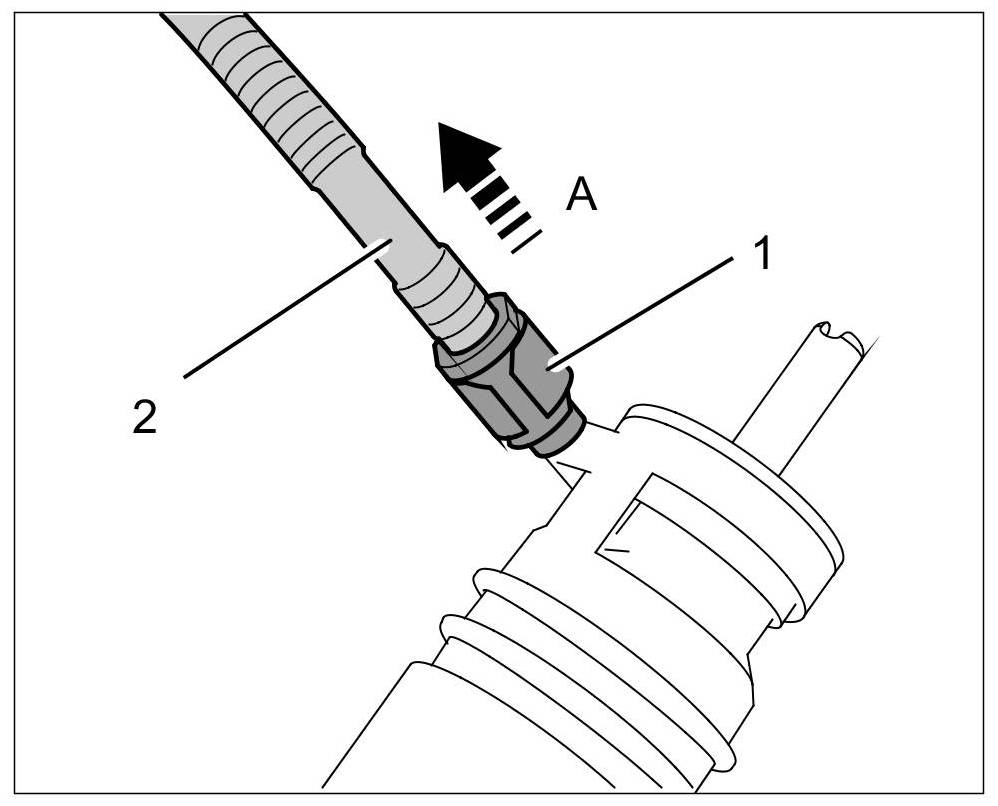

3.1. Spread the boot -1-.
3.2. Pull off hose -2-. -A-

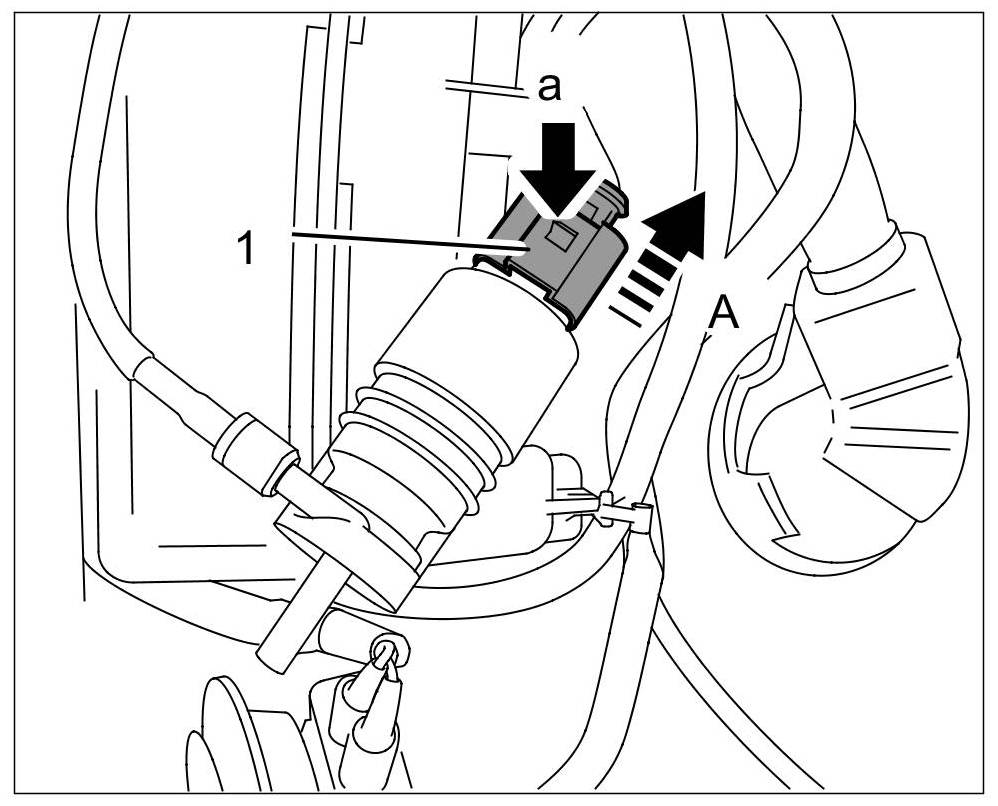

4. Release electric plug connection -1- for pump -a- and pull it off -A-.





Pulling off electric plug connection

5. Remove the pump.

Installing pump for windscreen washer system

1. Plug in electric plug connection -1- until it locks with an audible click. -A-





Connecting electric plug connection

2. Connect the hose -2-. -B-

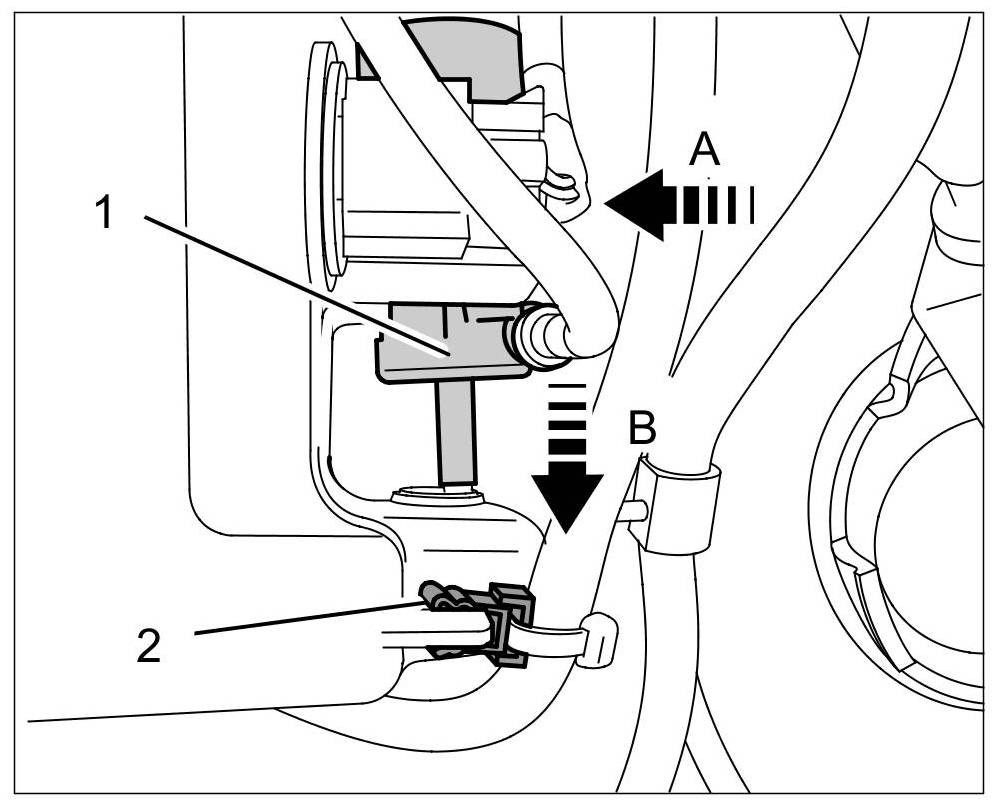

3. Clip the pump -1- into the bracket. -A-





Clipping in pump

4. Slide the pump -1- down into the rubber sleeve. -B-
5. Fit the clip -2- onto the tab on the tank. Use a new clip if necessary.

Subsequent work

1. Install rear part of front right wheel housing liner. -> 505619 Removing and installing front wheel housing liner - section on "Installing" Removal and Replacement
