Windshield Washer Spray Nozzle: Service and Repair

WM 926619 Removing and installing spray nozzle for windscreen washer system

Removing spray nozzle for windscreen washer system

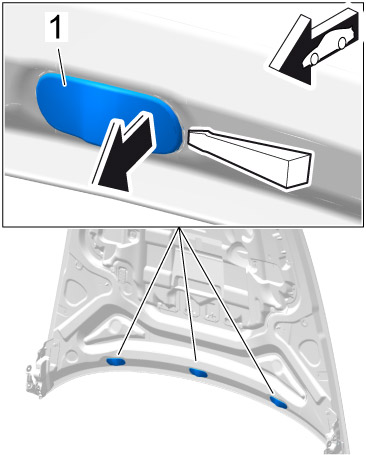

1. Lever off spray nozzle -1- using a plastic wedge.





Levering off spray nozzle

2. Release electric plug connection -1- for the spray nozzle -A- and pull it off -B-.





Disconnecting electric plug connection

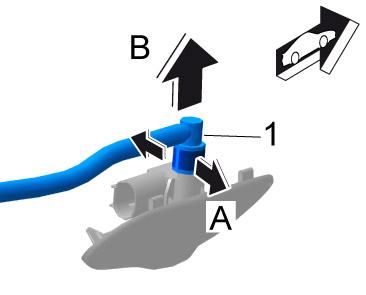

3. Release washer-fluid hose -1- ( -A- ) and pull it off -B-.





Spray nozzle connections

Installing spray nozzle for windscreen washer system

Information

The installation position ("L" for left, "M" for middle and "R" for right) is marked on the inside of the spray nozzles. The spray nozzles must be installed in the vehicle according to this marking.

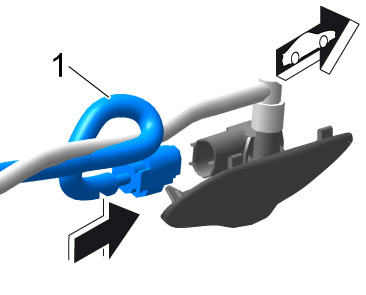

1. Plug in electric plug connection -1- for the spray nozzle until it engages securely.





Connecting electrical plug connection

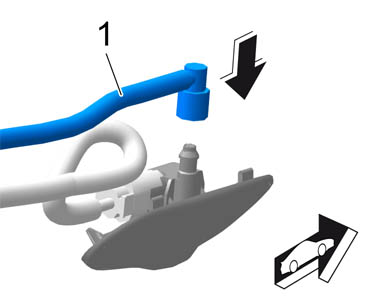

2. Attach washer-fluid hose -1- until it engages securely.





Installing spray nozzle connections

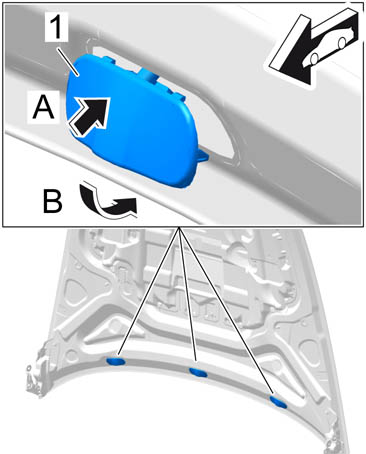

3. Fit spray nozzle -1- at the top -A- and clip it in at the bottom -B-.





Clipping in spray nozzle
