Engine

Wiring Harness Motor - Sheet 71A

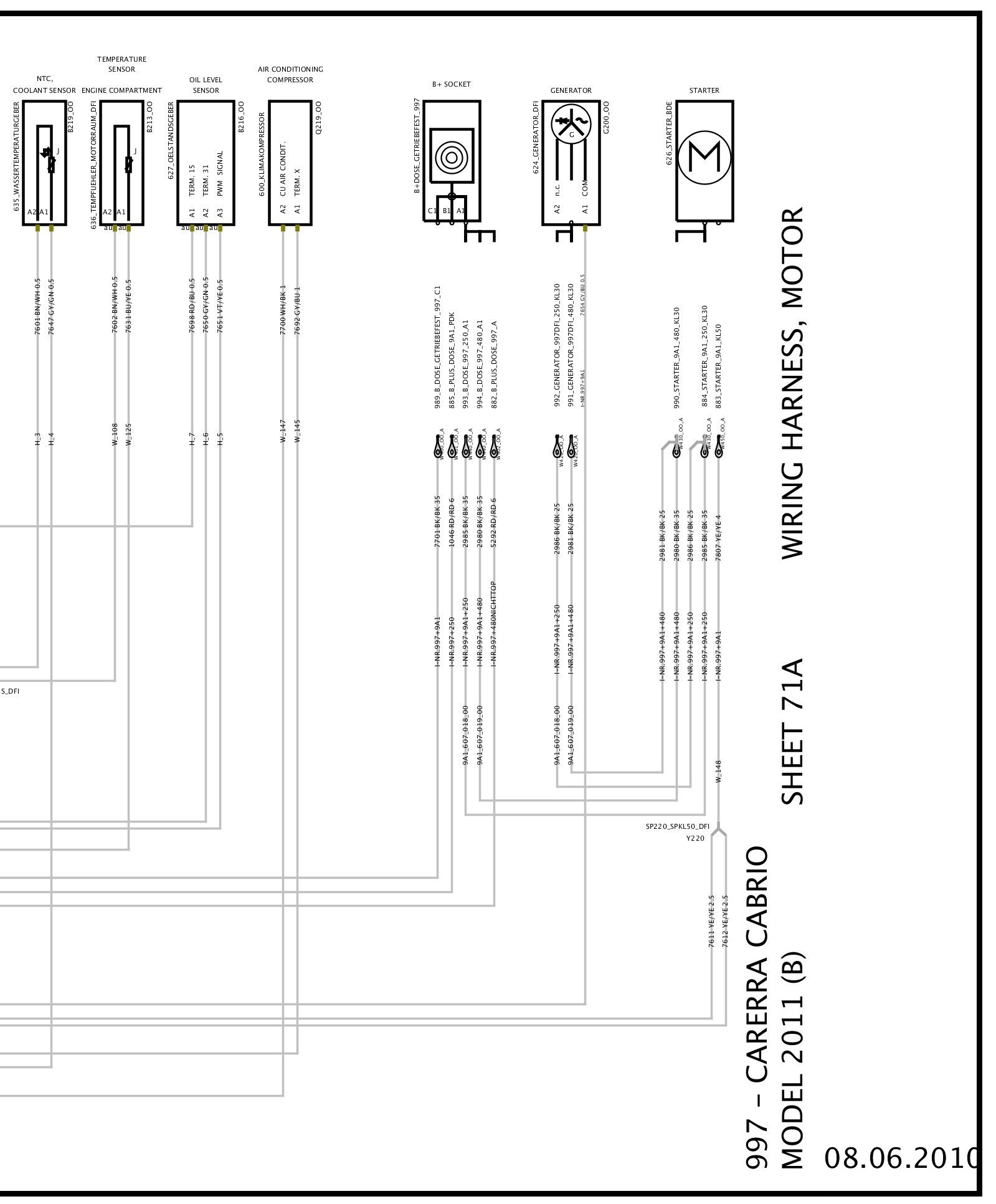

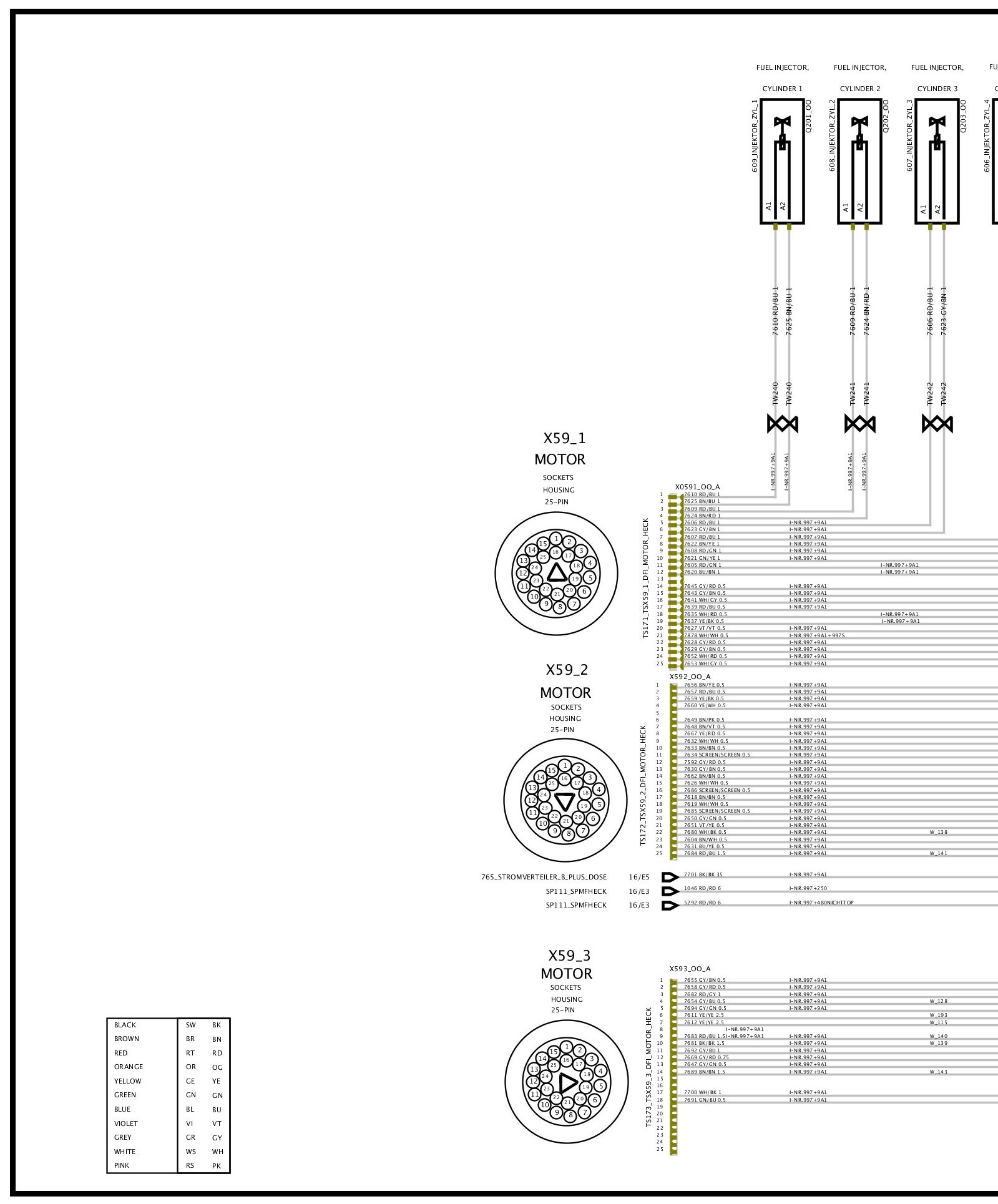

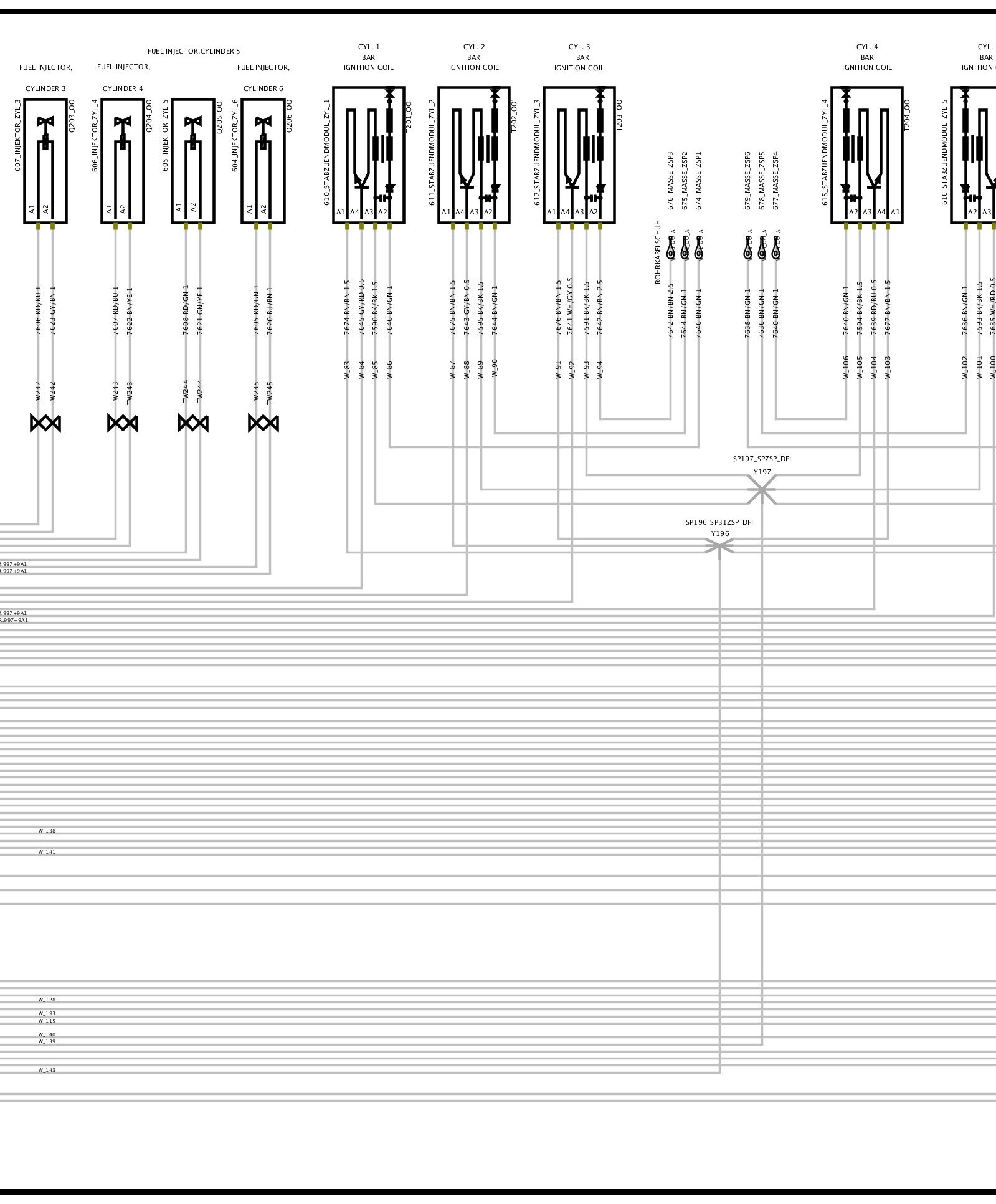

Wiring Harness Motor - Sheet 71A (Part 1):

Wiring Harness Motor - Sheet 71A (Part 2):

Wiring Harness Motor - Sheet 71A (Part 3):

Wiring Harness Motor - Sheet 71A (Part 4):

Wiring Harness Motor - Sheet 71A (Part 5):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
