705719 Removing And Installing A-pillar Trim Panel

WM 705719 Removing and installing A-pillar trim panel

Preliminary work

1. Remove B-pillar trim panel. => 706719 Removing and installing B-pillar trim panel - section on "Removing"

Removing A-pillar trim panel





Installation position of A-pillar trim panel

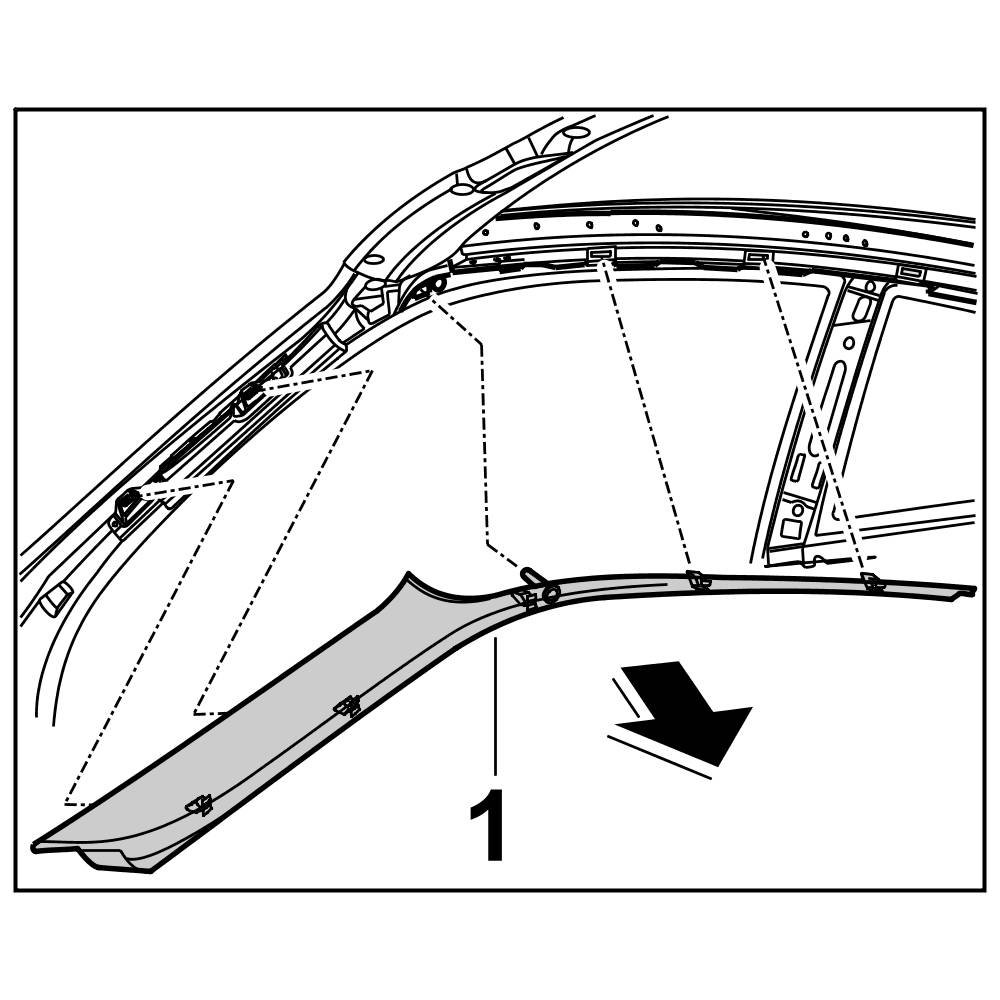

1. Unclip A-pillar trim panel -1- along the roof frame and windscreen frame and remove it by pulling it inwards.





Removing A-pillar trim panel

Removing mounting for fixing clip

1. Press in locking lugs on fixing clip -Arrows A- and remove in direction of arrow -Arrow B-.





Removing mounting for fixing clip

Installing A-pillar trim panel

Installing mounting for fixing clip

1. Insert mounting for fixing clip into the slot on the roof frame and slide it forward fully in -direction of arrow-.





Installing mounting for fixing clip

Installing A-pillar trim panel

1. Insert A-pillar trim panel -1- into the retaining clips and into the front cut-out on the dashboard.





Installing A-pillar trim panel

2. Position A-pillar trim panel -1- along the roof frame and windscreen frame from below and clip it in.

Subsequent work

1. Install B-pillar trim panel. => 706719 Removing and installing B-pillar trim panel - section on "Installing"
