556119 Removing and Installing Servo Motor for Emergency Release

WM 556119 Removing and installing servo motor for emergency release

Technical values





Preliminary work

Preliminary work on servo motor for emergency release

-> 631519 Removing and installing front apron - section on "removing"

Removing servo motor for emergency release





Installation position shown on the 911

1. Switch off ignition and remove ignition key.
2. Release electric connector -A- and unplug it at the servo motor.





Removing plug

3. Unscrew both fastening screws -1-.





Removing screws

4. Turn the servo motor and disengage the retaining pin from the cable at the servo motor.

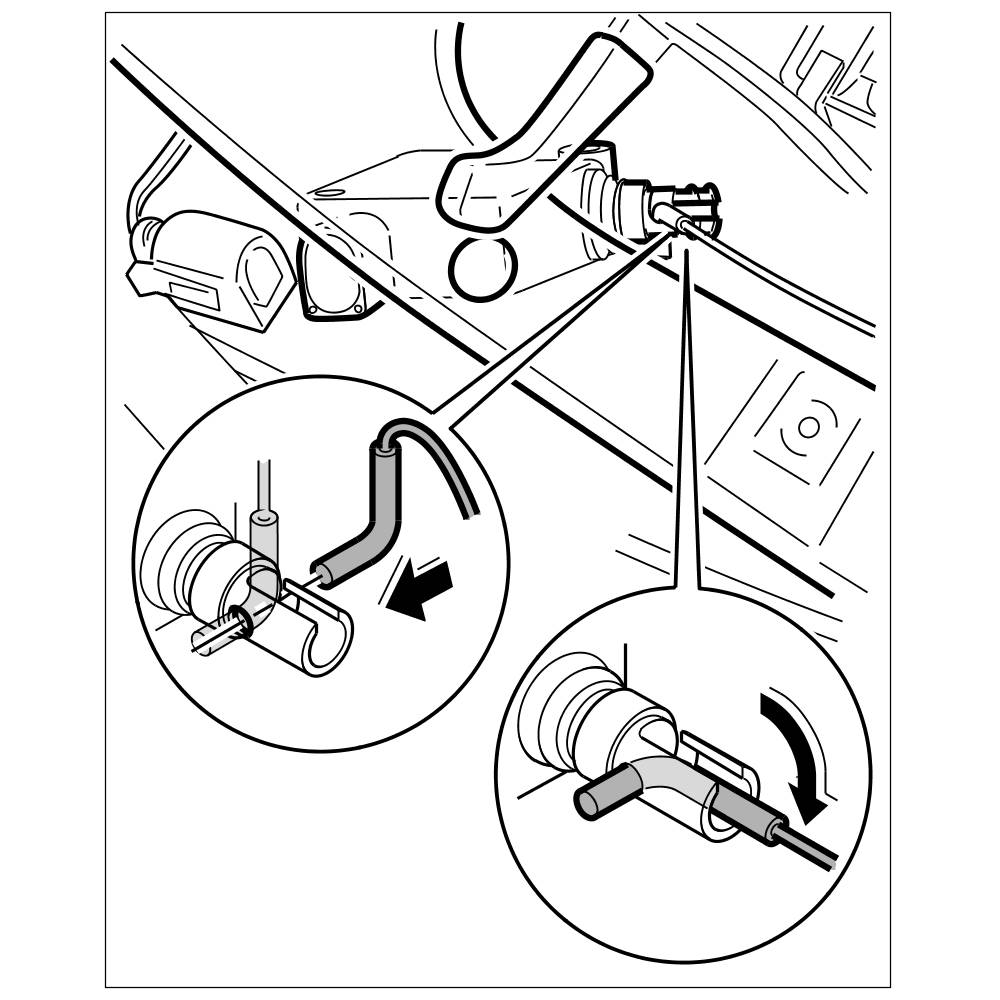

Disengaging cable at actuating element

5. Remove servo motor.

Installing servo motor for emergency release

1. Engage the cable retaining pin at the servo motor and clip it in.





Engaging cable on assembly servo motor

2. Position servo motor and secure with the fastening screws. => Tightening torque: 9.7 Nm (7.2 ftlb.)





Screwing in screws

3. Push electric plug onto the servo motor until it is felt to engage.





Plugging in connector

Subsequent work

Subsequent work on servo motor for emergency release

-> 631519 Removing and installing front apron - section on "installing"
