619219 Removing and installing hinge for hood compartment lid

WM 619219 Removing and installing hinge for hood compartment lid

Preliminary work

1. Remove convertible-top compartment lid. -> 619019 Removing and installing convertible top compartment lid - section on "Installing" 619019 Removing and installing hood compartment lid
2. Remove additional flap. -> 619119 Removing and installing additional flap - section on "Installing" 619119 Removing and installing additional flap
3. Loosen drive for convertible top compartment lid on the left and right and set aside. -> 617219 Removing and installing transmission for convertible top compartment lid drive - section on "Installing"

Removing hinge for hood compartment lid

Removing hinge for top box cover





Installation position of hinge for top box cover

Information

The seal is damaged when removing the hinge.

1. Pull off rubber sleeve on water drip pan.
2. Unscrew fastening nuts -1- and fastening screw -2-.





Removing hinge

3. Disconnect hinge for top box cover -3- from the body or loosen seal -4- with a spatula.

Installing hinge for hood compartment lid





Installation position of hinge for hood compartment lid

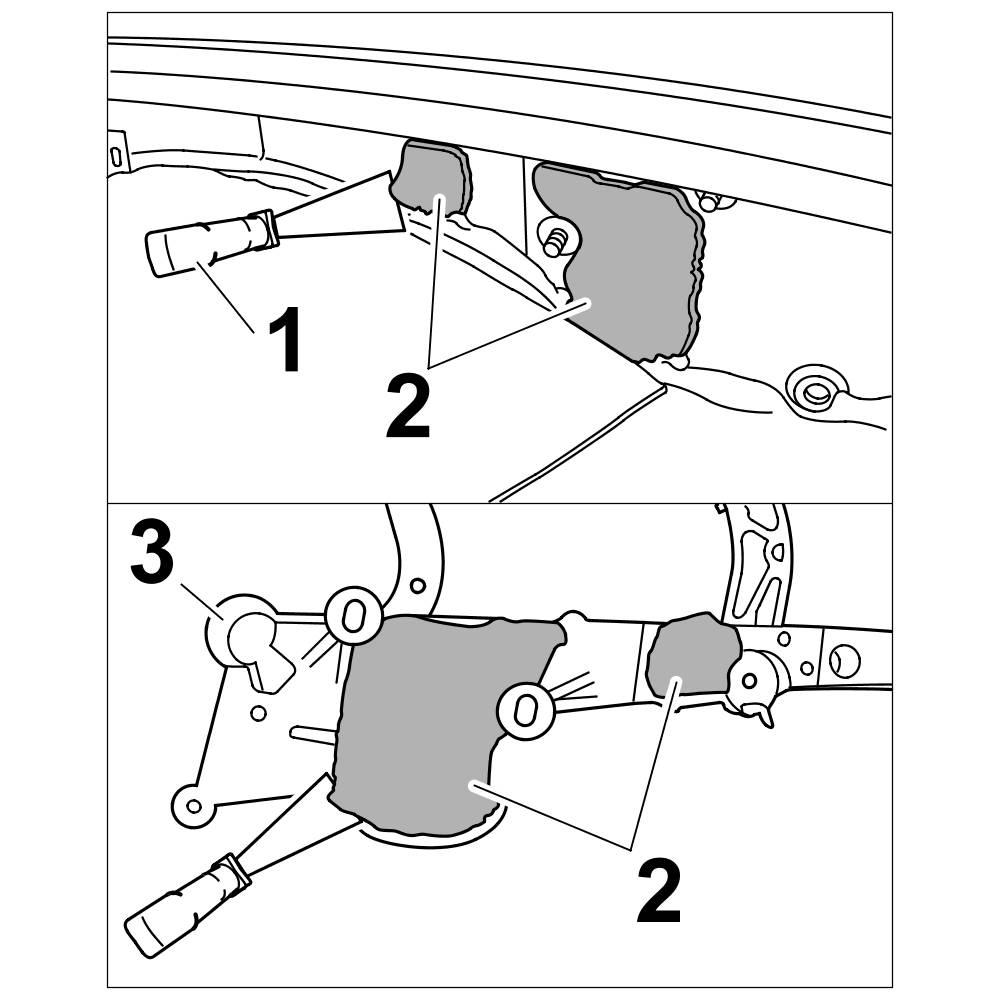

1. Using a spatula -1- remove the seal -2- on the body and hinge -3- and clean with cleaning solution.





Removing seal

Information

The seal must not be affixed over the contact surface of the hinge -A- and body.

2. Position new seal -1- on the hinge -2- and stick on.





Affixing seal

3. Pull off external protective film and position hinge -3- on the body.





Fitting hinge

4. Slightly tighten fastening nuts -1- and fastening screw -2-.
5. Position hood compartment lid -1- at the hinges -3- on the right and left with the help of a second person and secure with the fastening nuts -2-.





Installing hood compartment lid

Subsequent work

1. Adjust hinge for hood compartment lid. -> 619215 Adjusting hinge for hood compartment lid - section on "Adjusting" Adjustments
2. Completely install hood compartment lid. -> 619019 Removing and installing hood compartment lid - section on "Installing" 619019 Removing and installing hood compartment lid
