03 Maintenance For Cabriolet Convertible Top

WM 0300IN Maintenance for cabriolet convertible top

Information on lubricants used for convertible top maintenance





Lubricating Z-flap on rear side trim panel

- Cabriolet convertible top open.

1. Press out cap -1- with a screwdriver.
Lubricate spindle bearing -2- with Osixo Anti Squeak 557.





Lubricating Z-flap on rear side trim panel

Lubricating convertible top

- -> 6101IN Convertible top in service position

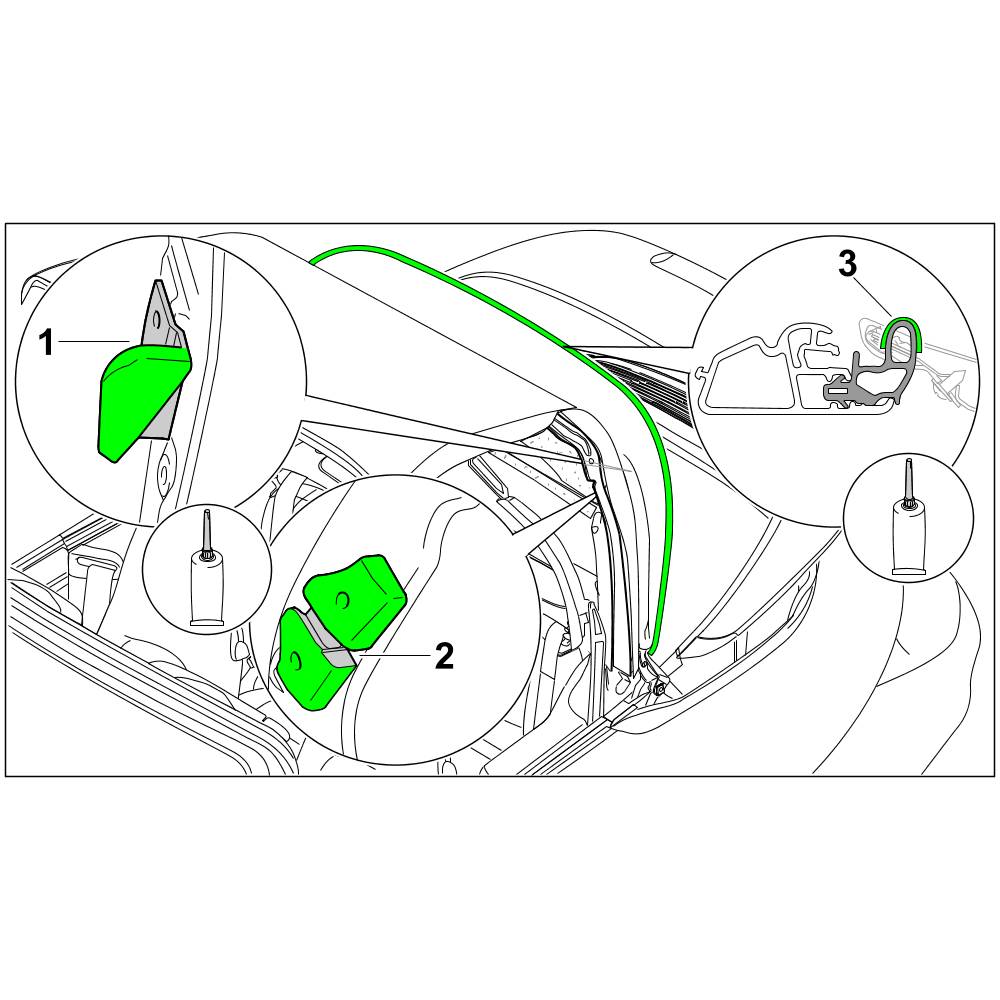

1. Lubricate thrust wedge -1- and roof frame fitting -2- on the left and right with Krytox GPL.
Lubricate sealing lip -3- on the tension bow seal by applying Osixo Anti Squeak 557 all the way round.





Lubricating convertible top

Lubricating convertible-top compartment lid

- -> 6101IN Convertible top in service position, -> 700819 Removing and installing trim panel for convertible top rest - section on "Removing"

1. Lubricate latching hook -1- on hinge for convertible-top compartment lid at the left and right with Krytox GPL.
Lubricate gate link -2- on hinge for convertible-top compartment lid at the left and right with Castrol Optitemp LG 2.
Lubricate driver -3- on hinge for convertible-top compartment lid at the left and right with Castrol Optitemp LG 2.
Lubricate locking hook -4- with Krytox GPL.





Lubricating convertible-top compartment lid

-> 700819 Removing and installing trim panel for convertible top rest - section on "Installing"

Lubricating windstop

1. Carefully press out the locking handle -1- with a screwdriver.
Lubricate locking pins -2- on windstop at the left and right with Krytox GPL.





Lubricating locking pins
