Home >> Porsche >> 2011 >> 911 Turbo Cabriolet AWD (997) F6-3.8L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems

Collision Avoidance and Parking Assist Systems

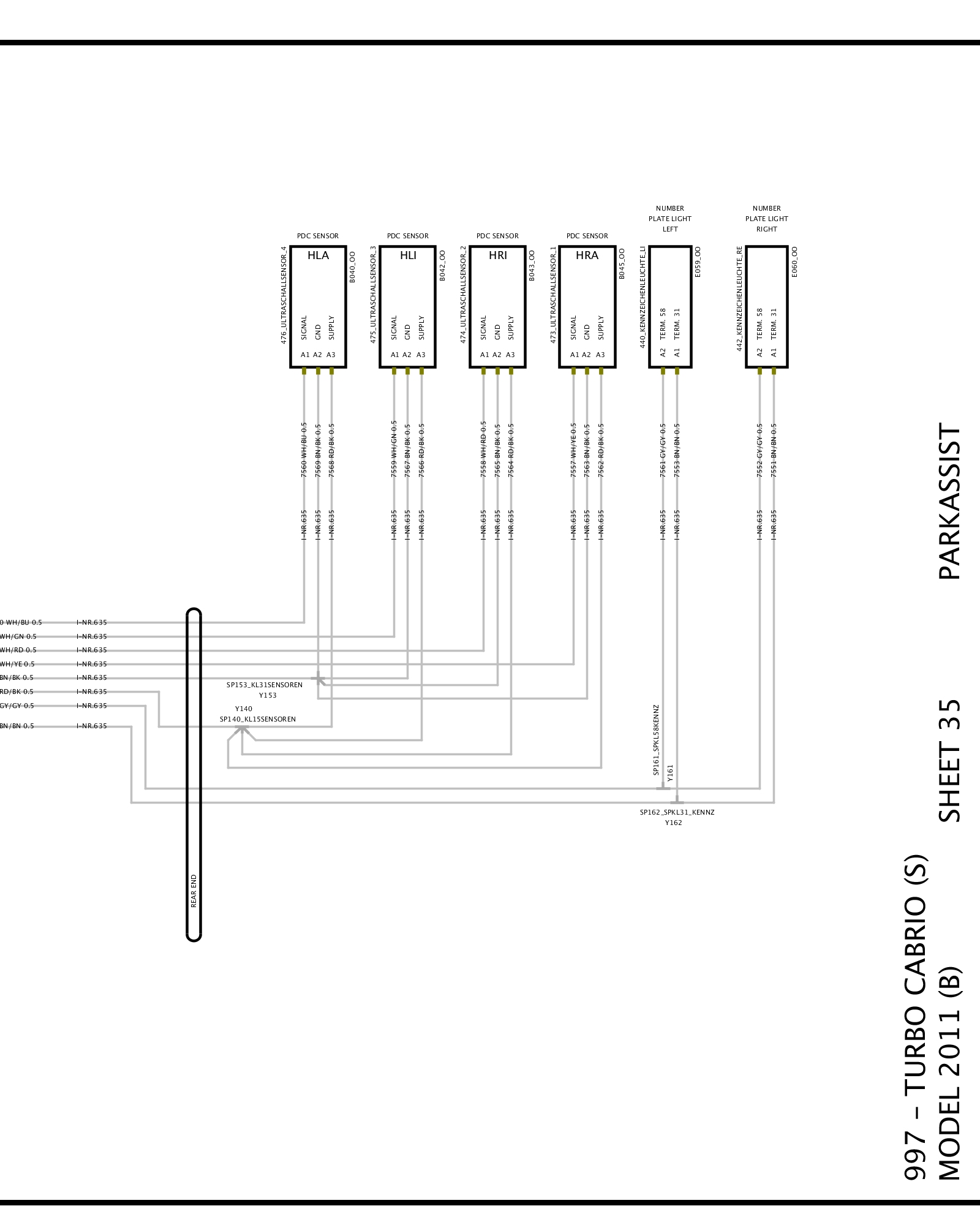

Parkassist - Sheet 35
