945419 Removing and installing front direction indicator light

WM 945419 Removing and installing front direction indicator light

Preliminary work

Preliminary work for front direction indicator light

Remove front apron. => 631519 Removing and installing front apron - section on "Removing"

Removing front direction indicator light

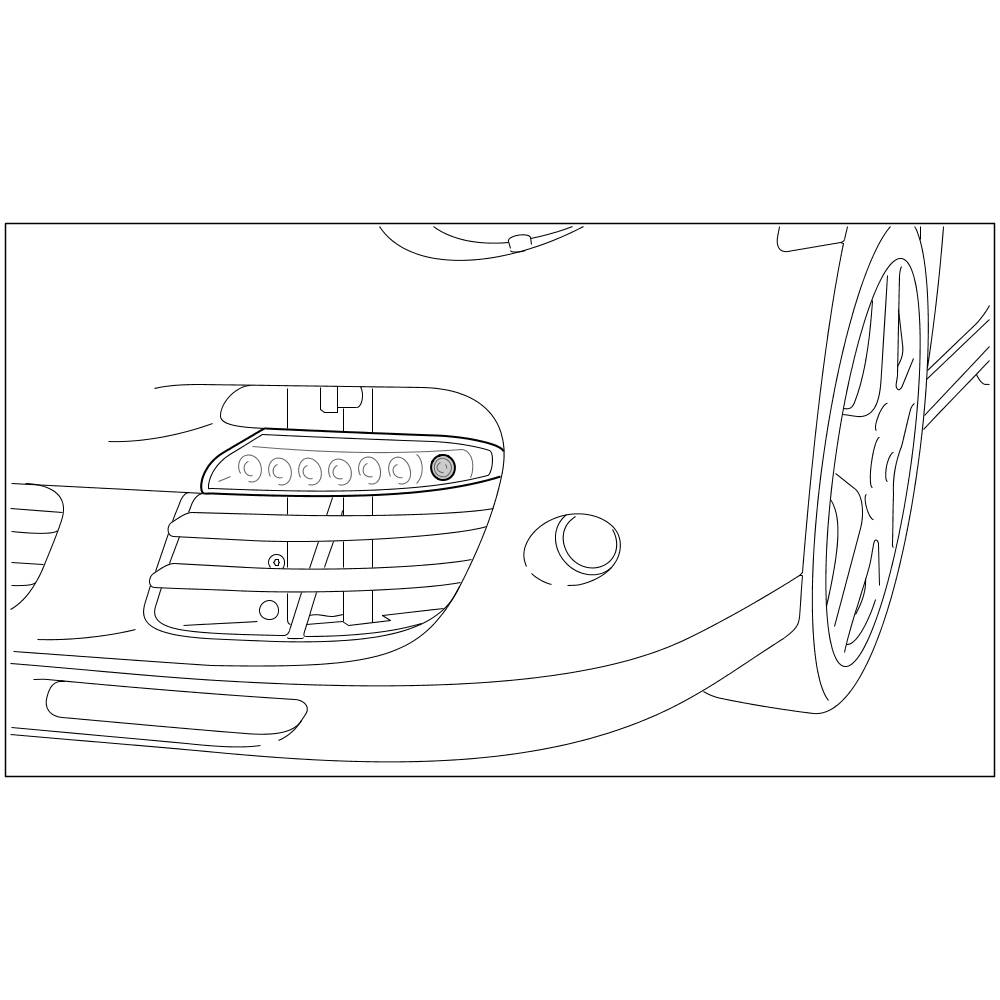

Installation position

The direction indicator light can only be completely removed when the front apron is removed.
1. Disengage electric plug connection above the fog light, release plug connection -A- and disconnect it.





Unplugging electric connector

2. Unscrew the fastening screw -1- for the front direction indicator light.





Unscrewing fastening screw for direction indicator light

3. Pull the outside of the direction indicator light forward -A- and then towards the outside -B- of the front apron.





Removing direction indicator light

4. Remove direction indicator light and wire harness from the front apron.

Installing front direction indicator light

1. Fit direction indicator light into the front apron from the front and route the wire harness over the fog light.
2. Push direction indicator light in the front apron to the inside -B- and press it onto the front apron at the outside -A-.





Fitting direction indicator light into front apron

Information

There must be a Velcro fastener on the front apron, behind the front indicator light.

This Velcro fastener increases the contact force of the direction indicator light. If this Velcro fastener is not fitted or is damaged, it must be fitted/replaced.

In the Parts Catalogue, the reference " also use if necessary" is added for the front direction indicator light.

3. Secure direction indicator light with the fastening screw -1-.





Securing direction indicator light with the fastening screw

4. Connect the plug connection for the direction indicator light over the fog light until the connector engages securely. Engage plug connection in the mounting point above the fog light.





Connecting and engaging plug connection

Subsequent work

Subsequent work for front direction indicator light

Install front apron. => 631519 Removing and installing front apron - section on "Installing"
