Sheet 10BM - Pass. Seat Memory Control Unit



Pass. Seat Memory Control Unit - Sheet 10BM

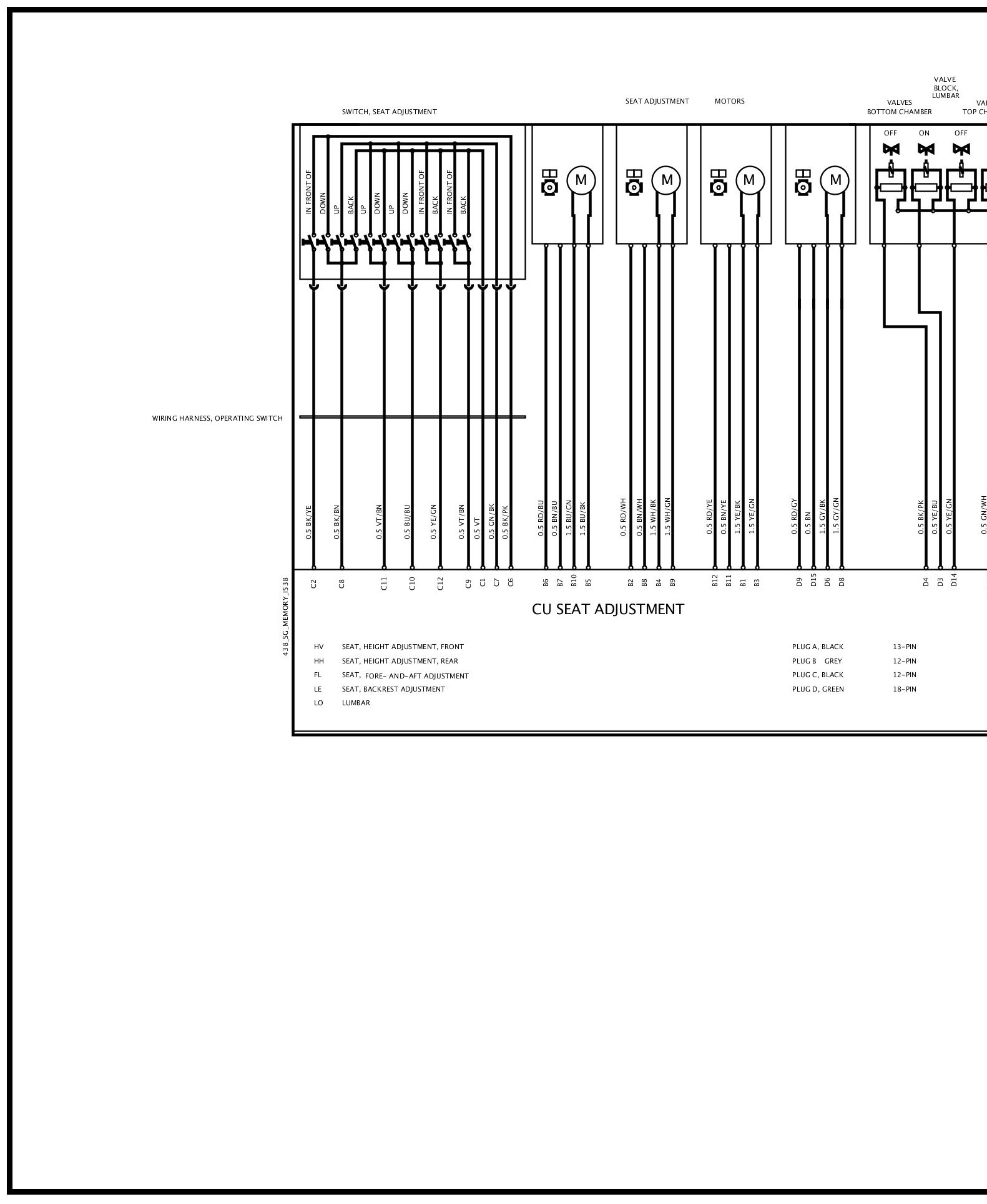

Pass. Seat Memory Control Unit - Sheet 10BM (Part 1):

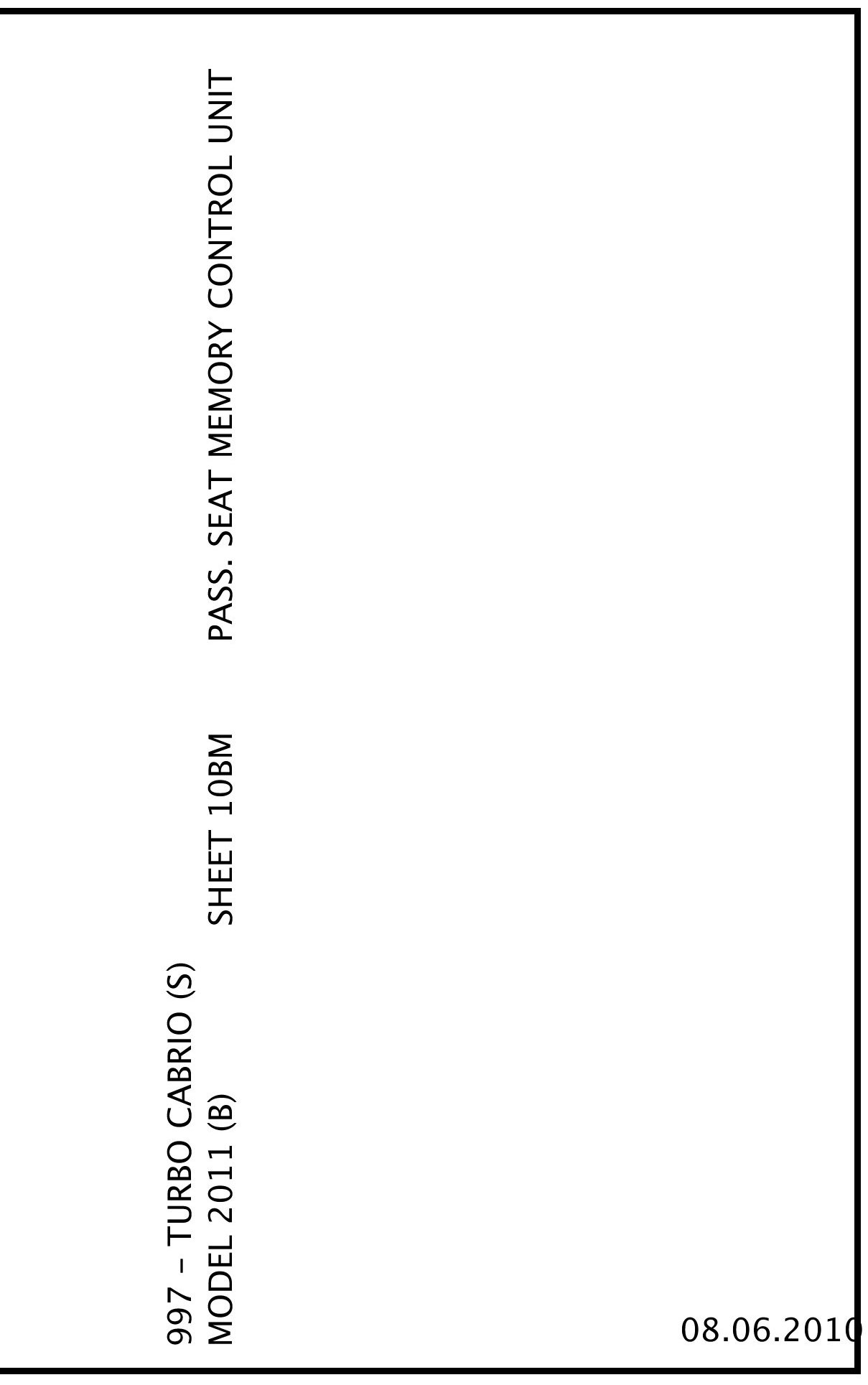

Pass. Seat Memory Control Unit - Sheet 10BM (Part 2):

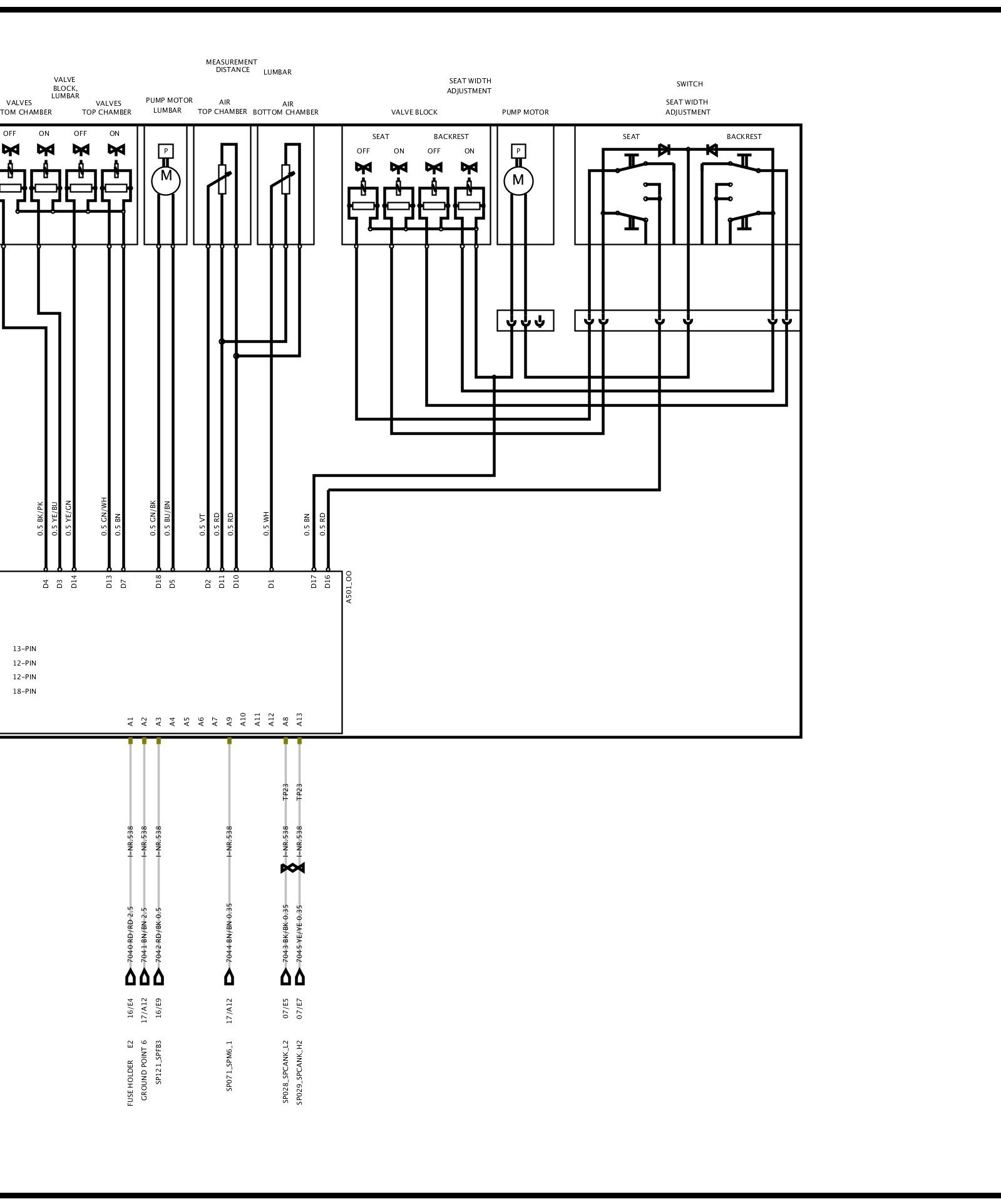

Pass. Seat Memory Control Unit - Sheet 10BM (Part 3):
