Sheet 20B - Radio
Sheet 20B - Radio

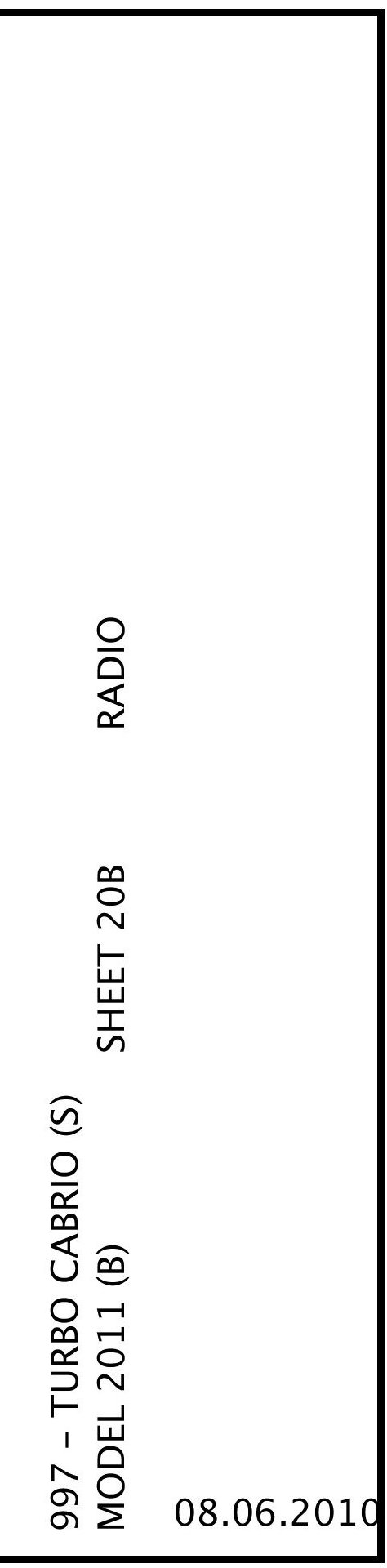

Radio - Sheet 20B

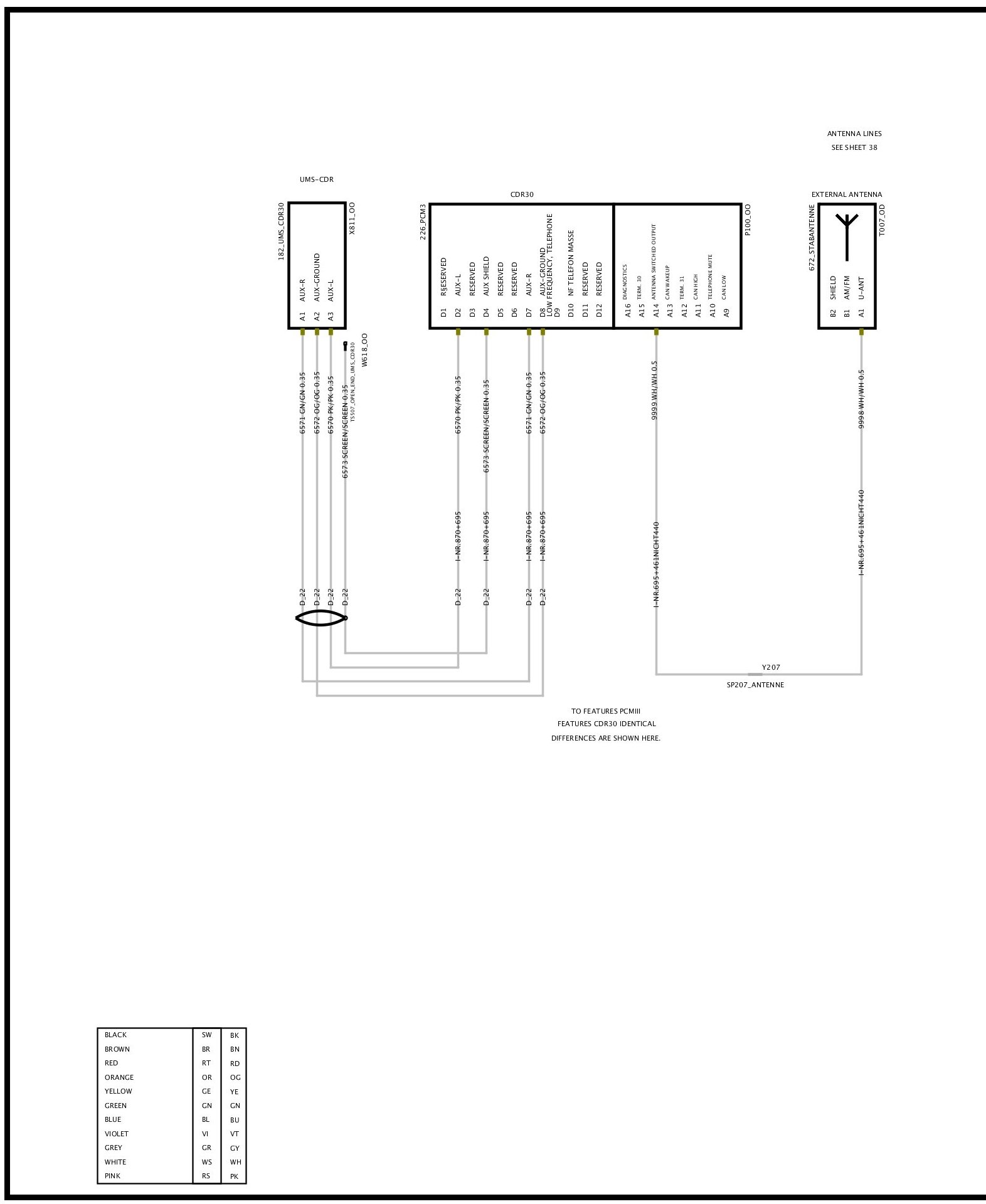

Radio - Sheet 20B (Part 1):
Radio - Sheet 20B (Part 2):
