Sheet 21A - Rear Speaker Ask
Sheet 21A - Rear Speaker Ask
Rear Speaker Ask - Sheet 21A

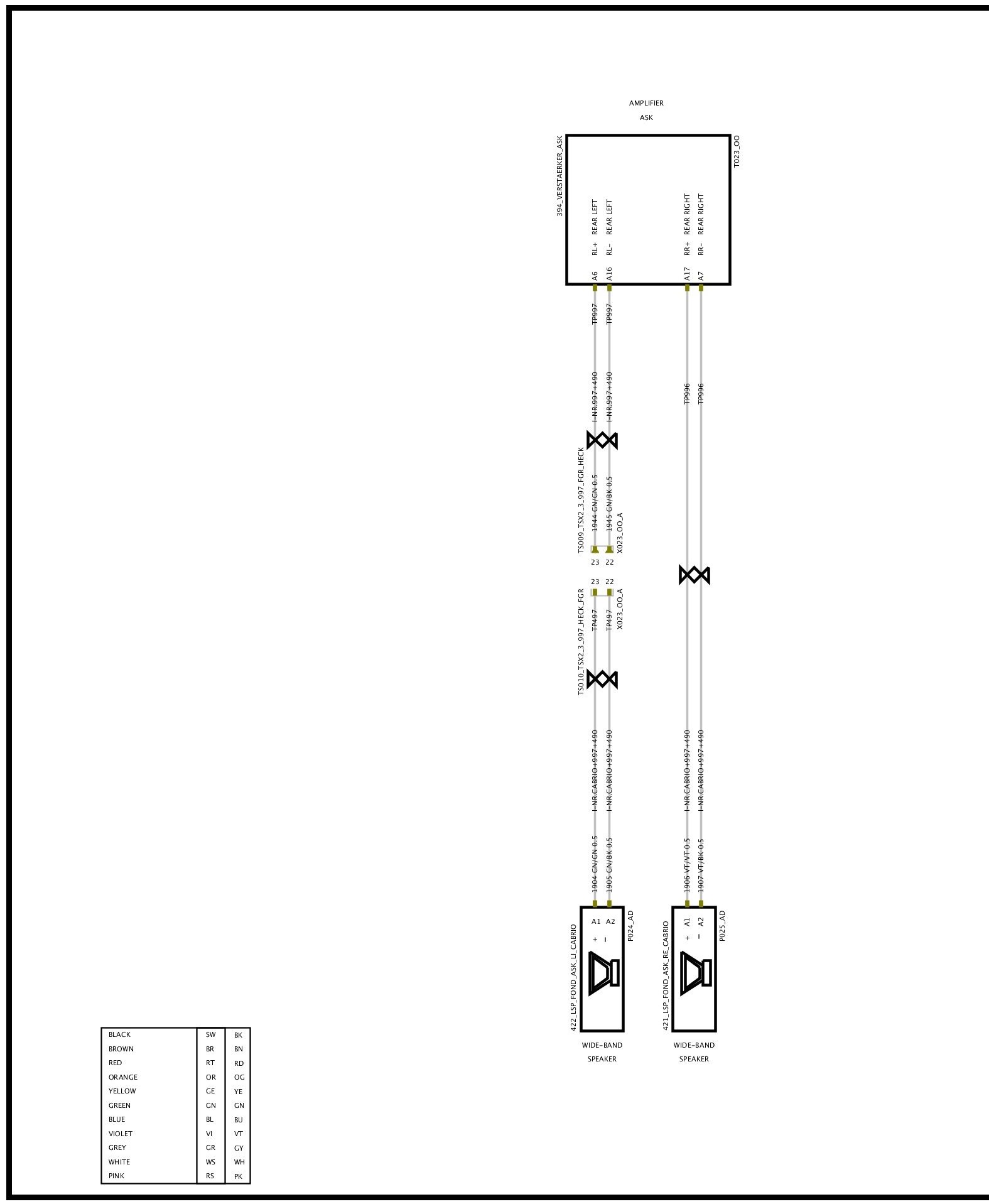

Rear Speaker ASK - Sheet 21A (Part 1):

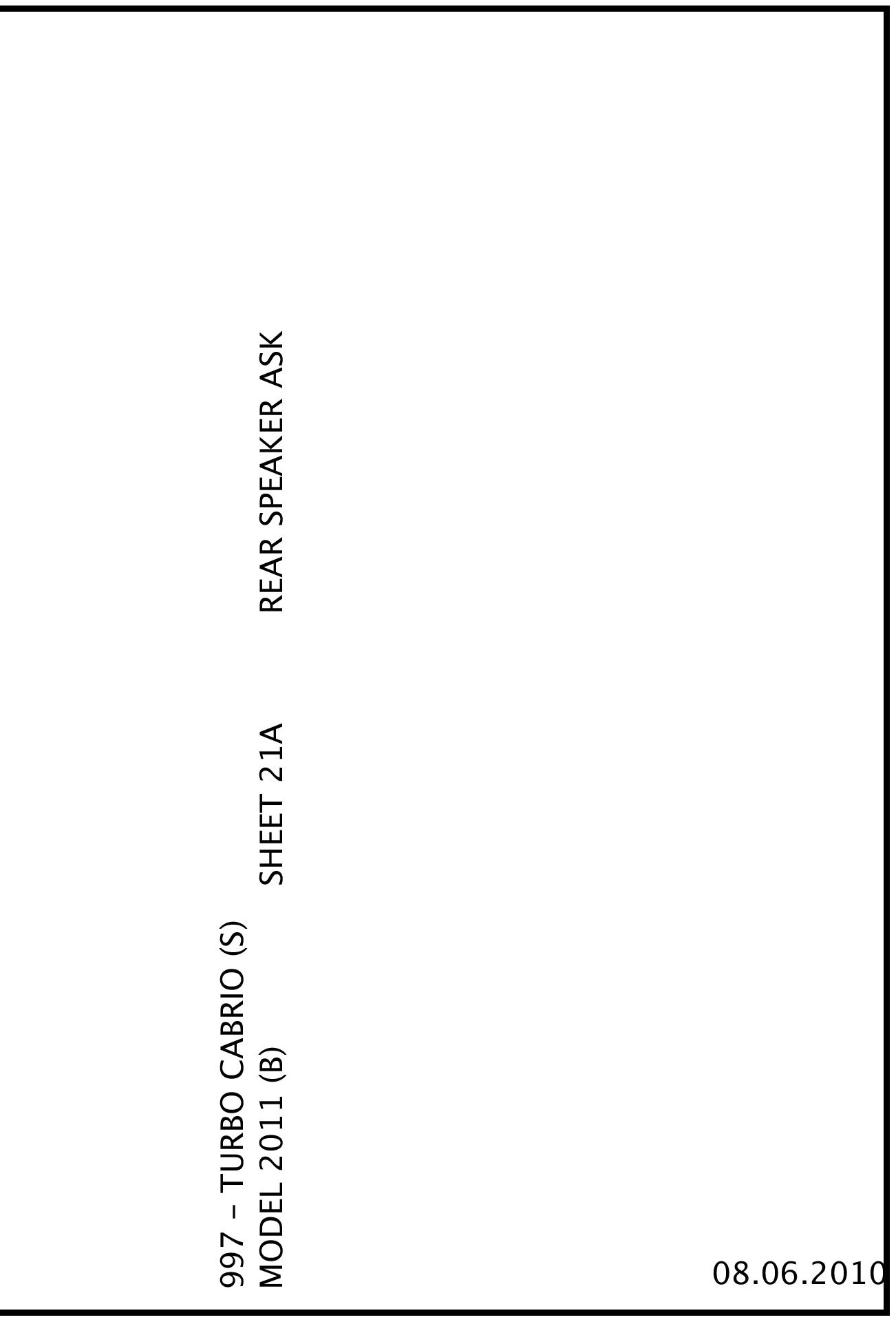

Rear Speaker ASK - Sheet 21A (Part 2):
