974319 Removing and installing wire harness for rearview mirror

WM 974319 Removing and installing wire harness for rearview mirror

Preliminary work

1. Remove housing for rearview mirror. -> 667919 Removing and installing housing for rearview mirror - section on "Removing" 667919 Removing and installing housing for rearview mirror
2. Remove mirror adjusting motor. -> 668219 Removing and installing mirror adjusting motor - section on "Removing" Service and Repair

Removing wire harness for rearview mirror

NOTICE

Voltage peaks

- Risk of damage to load or to the control unit

-> Switch off ignition and remove remote control before disconnecting or removing load.

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

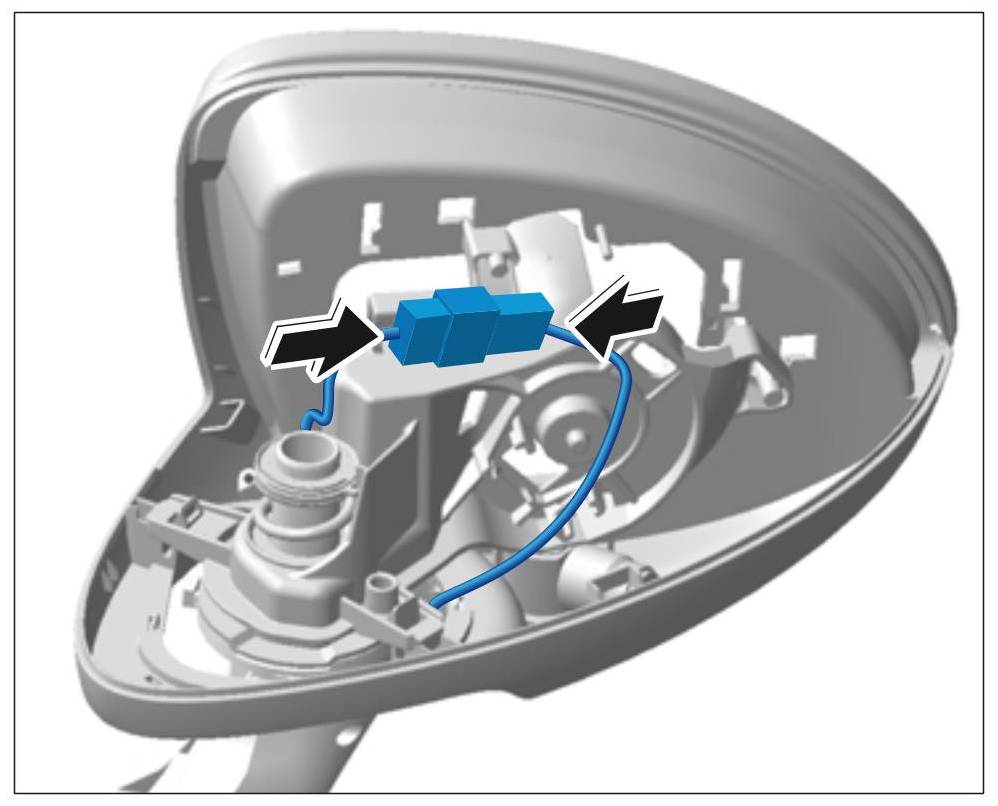

Installation position of wire harness for rearview mirror

1. Push the plug connection -3- out of the holder -1- in the lower part of the housing -2- in the direction of the arrow.





Plug connection holder

2. Release plug connection -3- ( -a- ) and pull it off -B-.





Unplugging plug connection for lamp in rearview mirror

3. Unplug plug connection for folding function -arrow-.





Unplugging plug connection for folding function

4. Guide wire harness -1- through in direction of arrow -arrow-.





Pulling through wire harness

5. Unclip three clips -1-.





Unclipping clips

Installing wire harness for rearview mirror

1. Insert three clips -1-.





Unclipping clips

2. Guide wire harness through in direction of arrow.





Pulling through wire harness

3. Plug in electrical plug connection for folding function.





Plugging in plug connection for folding function

4. Plug in electrical plug connection -3- and lock it -arrow-.





Plugging in plug connection for lamp in rearview mirror

5. Push electrical plug connection -3- into holder -1- ( -arrow- ).





Plug connection holder

Subsequent work

1. Install mirror adjusting motor. -> 668219 Removing and installing mirror adjusting motor - section on "Installing" Service and Repair
2. Install housing for rearview mirror. -> 667919 Removing and installing housing for rearview mirror - section on "Installing" 667919 Removing and installing housing for rearview mirror
