Charging Tray Bluetooth Handset - Sheet 20C
Charging Tray Bluetooth Handset - Sheet 20C
Charging Tray Bluetooth Handset - Sheet 20C

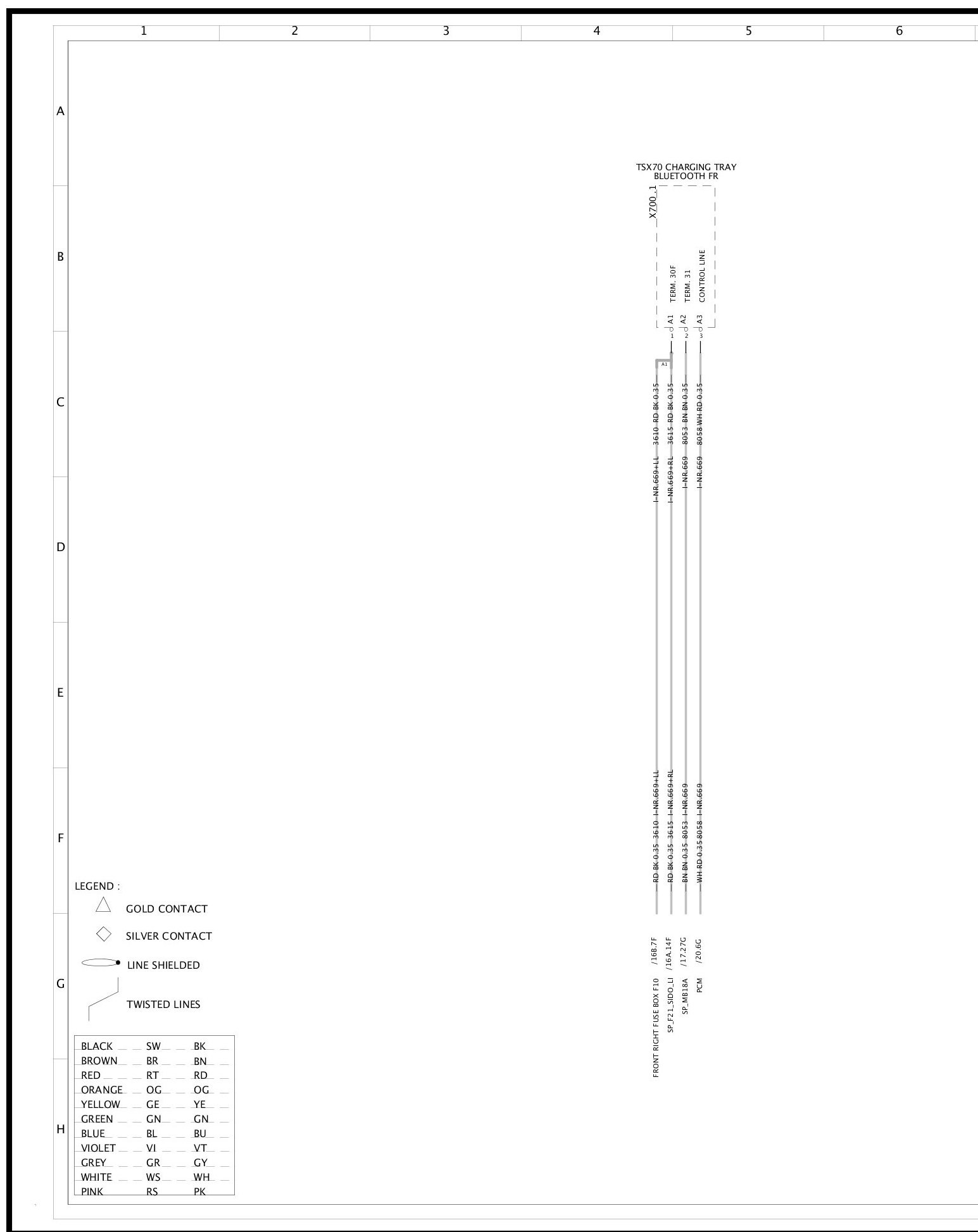

Charging Tray Bluetooth Handset - Sheet 20C (Part 1):

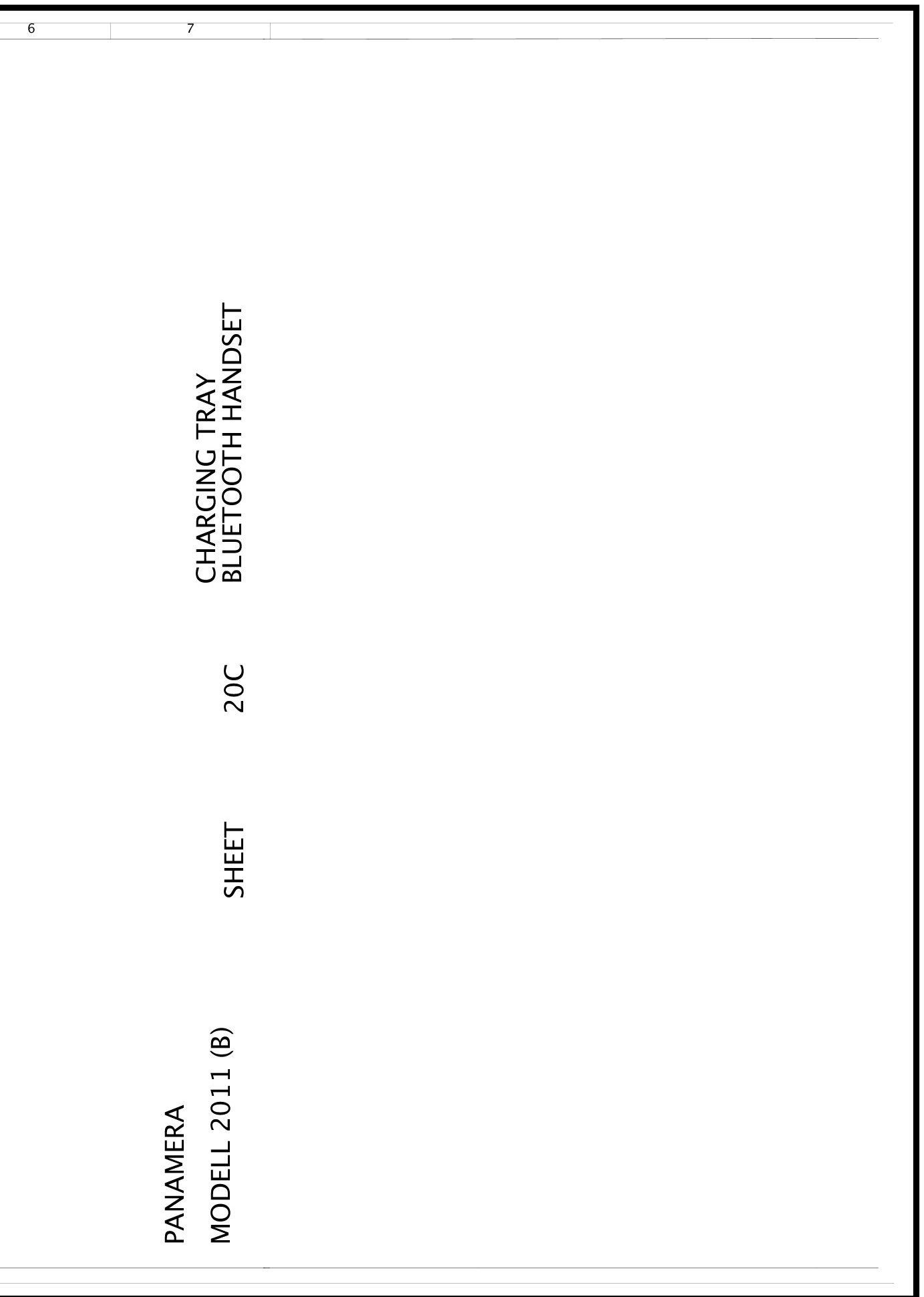

Charging Tray Bluetooth Handset - Sheet 20C (Part 2):
