Communication Monitoring
10. Communication Monitoring10.1 CAN controller monitoring (P0604)

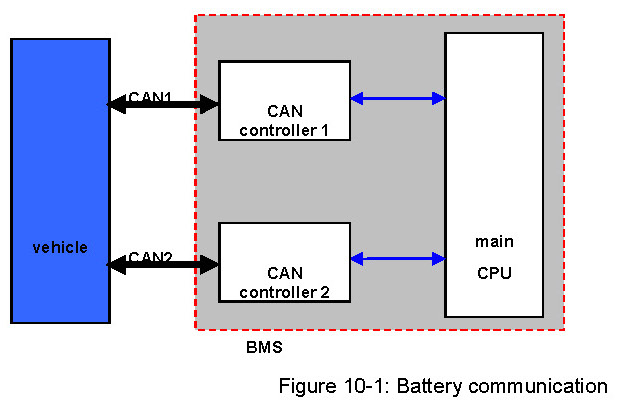

The Battery contains two CAN controller to communicate with the vehicle (see Figure 10-1).
10.1.1 Monitoring strategy
This monitoring strategy will check, if the CAN controller has a malfunction.
The malfunction is detected by internal CAN controller status.

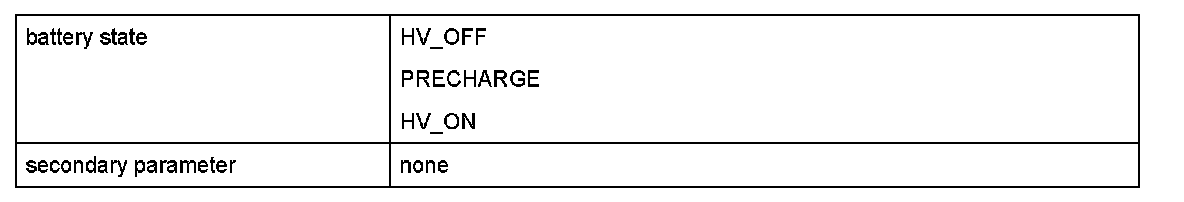

10.1.2 Enable conditions

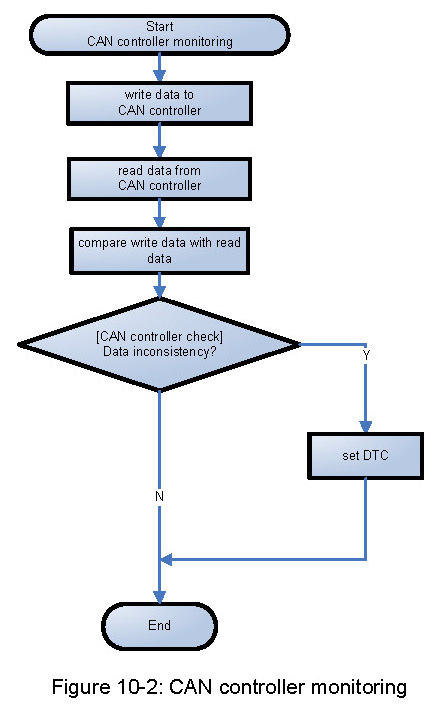

10.1.3 Chart(s) and flowchart(s)
10.2 CAN message monitoring (U0401, U0411, U0415, U0447)
10.2.1 Monitoring strategy
This monitoring strategy will check, if a received CAN messages is invalid.
A message malfunction is detected by CAN controller status.

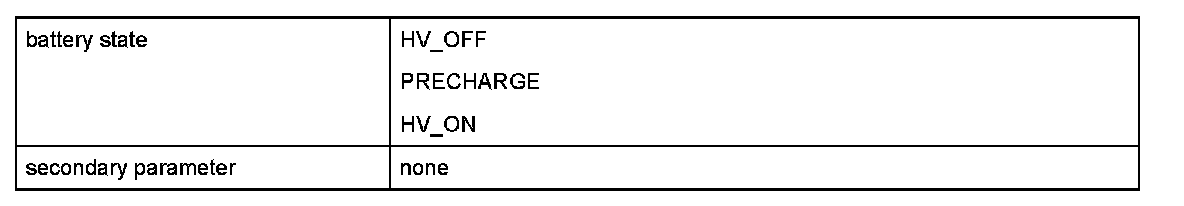

10.2.2 Enable conditions

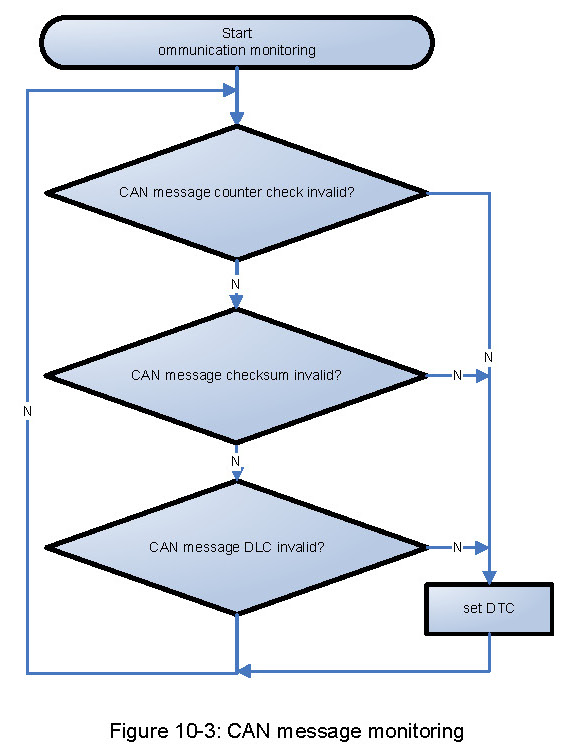

10.2.3 Chart(s) and flowchart(s)
10.3 CAN timeout monitoring (U0002, U0029, U0100, U0110, U0121, U0146, U0155)
10.3.1 Monitoring strategy
This monitoring strategy will check, if a CAN messages is not received any more.
If a message timeout counter exceeds a threshold a malfunction is detected.

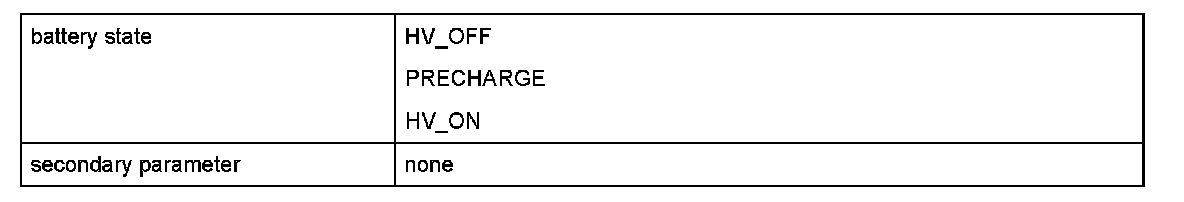

10.3.2 Enable conditions

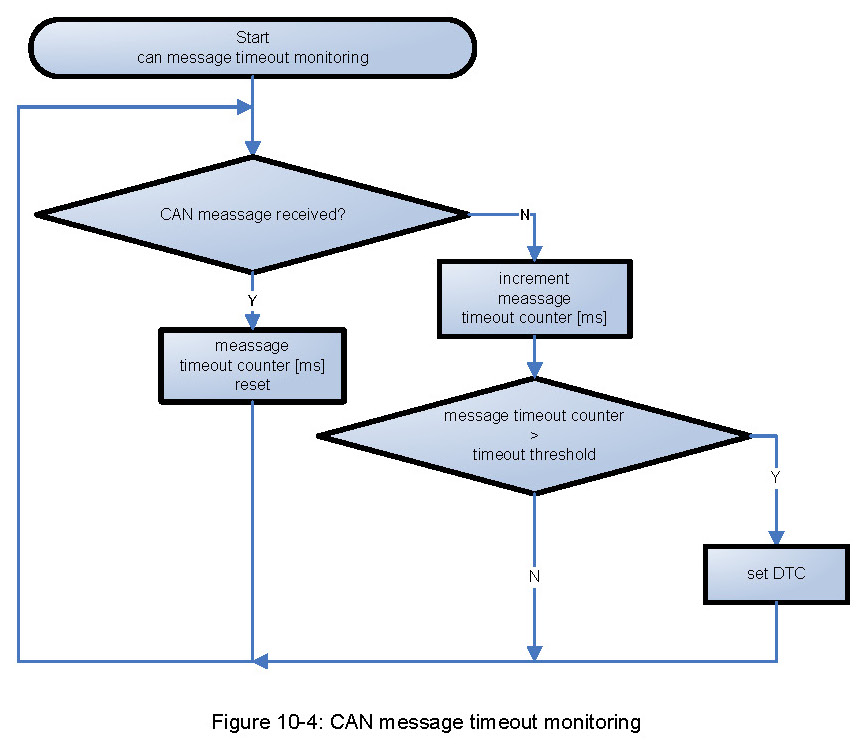

10.3.3 Chart(s) and flowchart(s)
10.4 CAN bus off monitoring (U0001, U0028)
10.4.1 Monitoring strategy
This monitoring strategy will check, if the CAN bus has a wiring malfunction by checking controller status.
10.4.2 Enable conditions

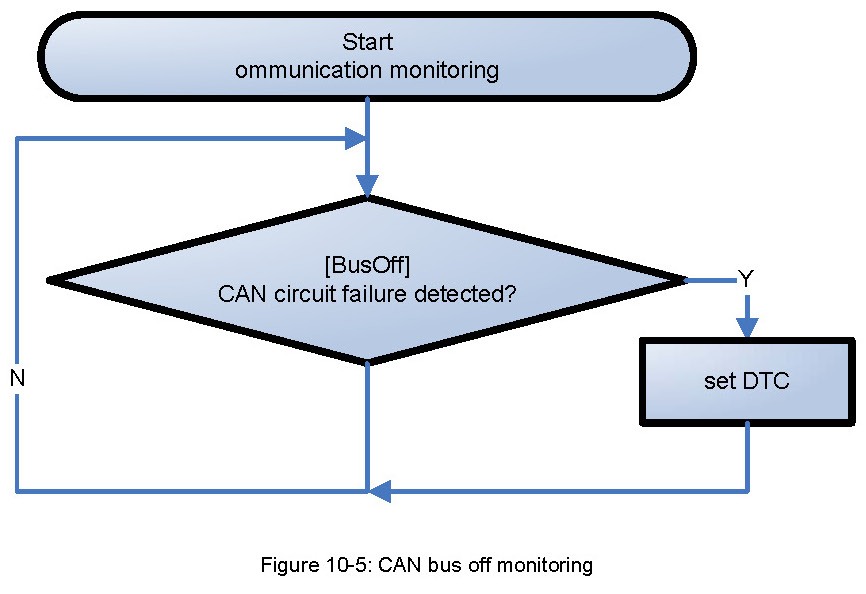

10.4.3 Chart(s) and flowchart(s)
