System Monitor HV-Battery-Active-Cooling (U040A)

12. System Monitor HV-Battery-Active-Cooling (U040A)

This Chapter is only valid for Panamera S Hybrid. Test Group: CPRXV03.0PHD

12.1 Monitoring strategy
This monitoring strategy will check, if there is no decrease oft the Battery-Inlet-Air-Temperature after Cooling demand is on.

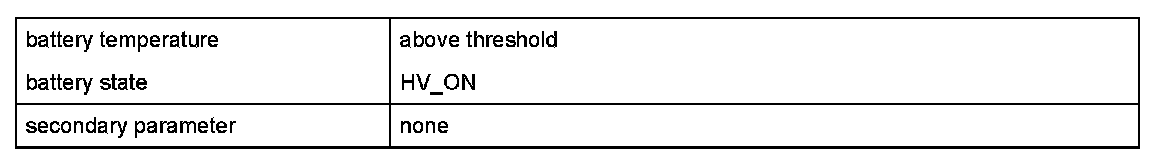

12.2 Enable conditions

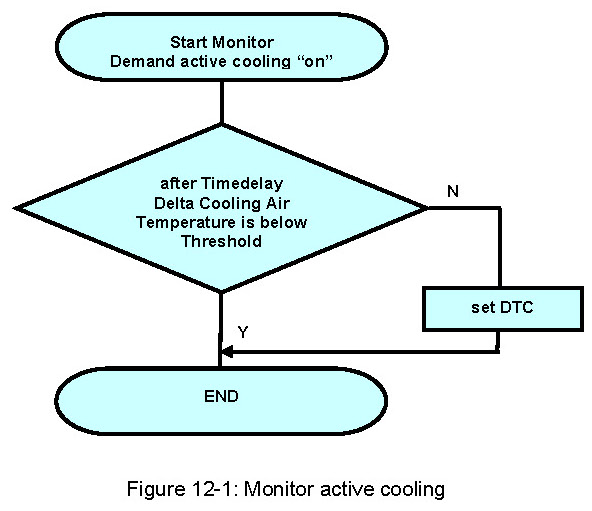

12.3 Chart(s) and flowchart(s)
