Fuel Injection Diagnostic Socket Terminal Location. Fuego Turbo

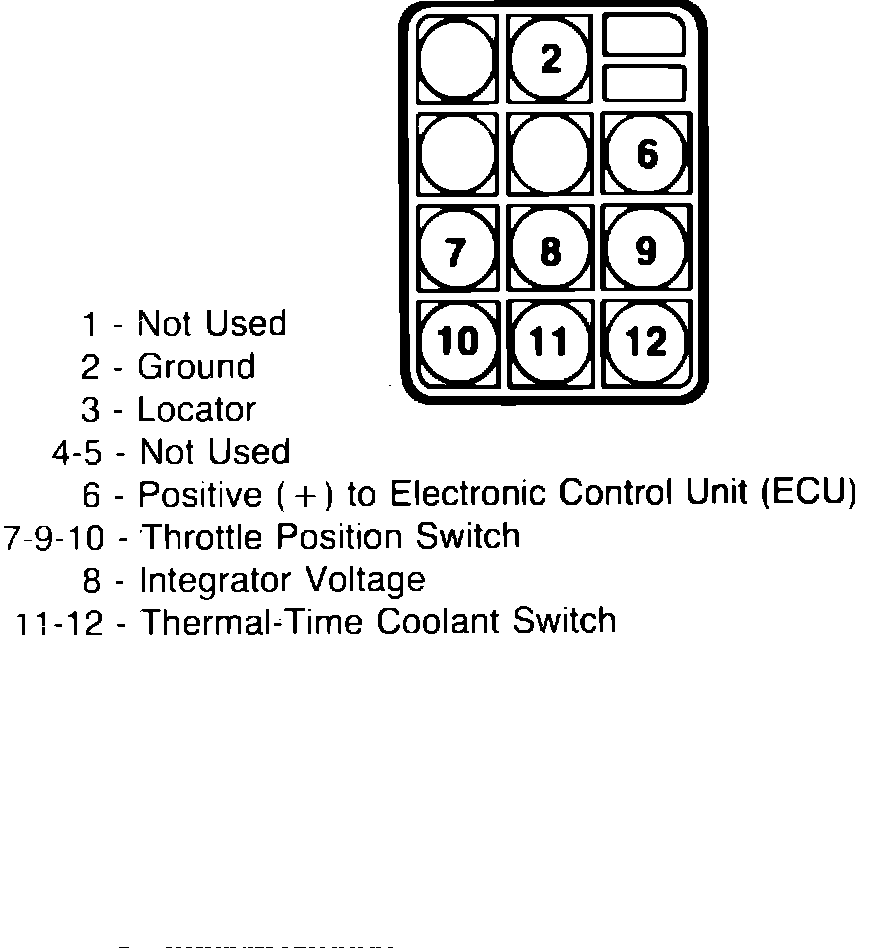

Fig. 2 Fuel injection diagnostic socket terminal location.:
