Clutch Master Cylinder
Clutch Master Cylinder

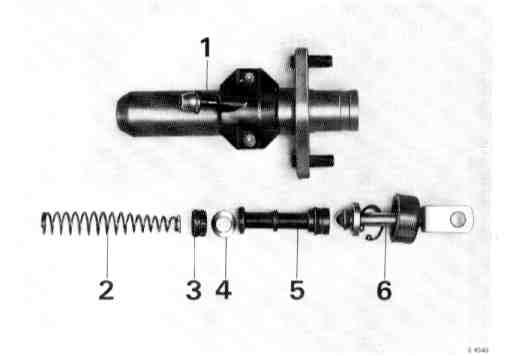

COMPONENTS OF THE
CLUTCH MASTER CYLINDER
1.
Housing
2.
Spring with seat
3.
Seal
4.
Washer
5.
Piston with rear seal
6.
Push-rod with stop washers, Circlip and dust cover
