Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
1982
>>
900 L4-1985cc 2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Fault Diagnosis
Fault Diagnosis

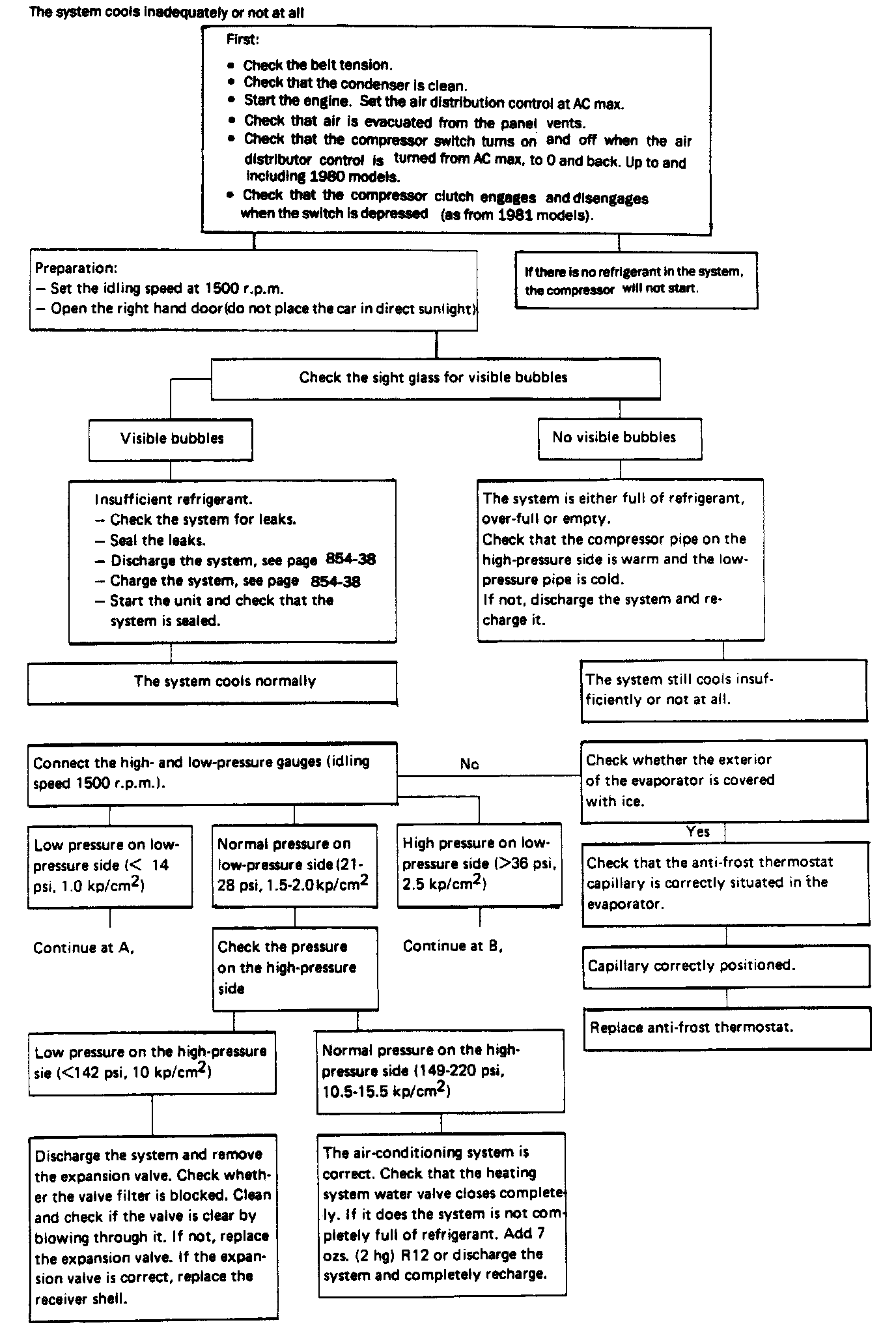

FAULT-TRACING BLOCK DIAGRAM FOR CYCLING CLUTCH SYSTEM
Flow Chart I:
Flow Chart II:
