Shift Linkage: Adjustments

1 Move the selector lever to position N. Press the pawl button and move the lever slightly back and forth. Increasing resistance should be felt in both directions from the gear selector valve and the detent spring

2 With the pawl button depressed, hold the lever steady mid-way between the positions at which this increasing resistance is felt.

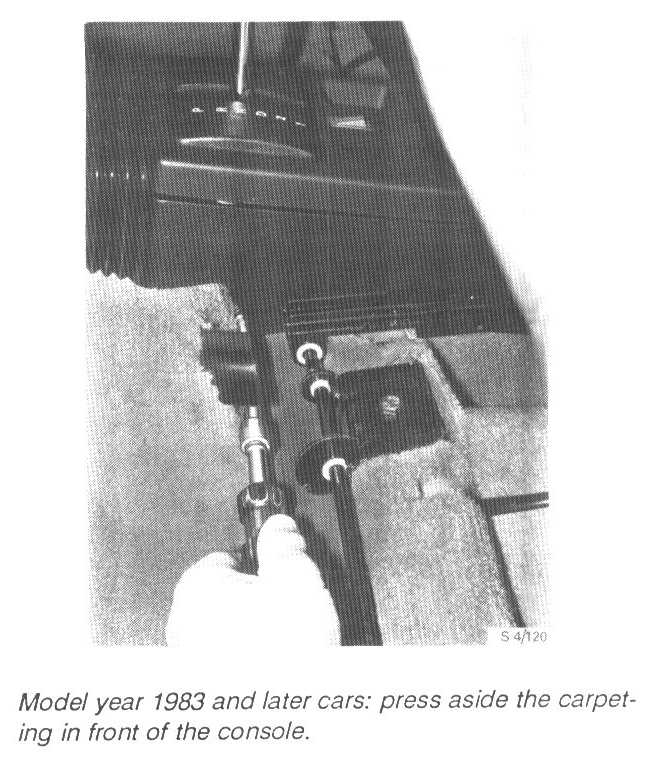

3 Disconnect the gear selector cable from the lever, using hexagon bit adapter 87 90 883.

4 Release the paw button and move it to the position marked for position N.

Note: To facilitate adjustment of the gear selector cable, an additional notch marking the exact N position is provided in the quadrant.





5 Tighten the setscrew for the gear selector cables, using a torque wrench and hexagon bit adapter 87 90 883.

Tightening torque: 2.5 Nm (0.25 kpm)
