A/C System

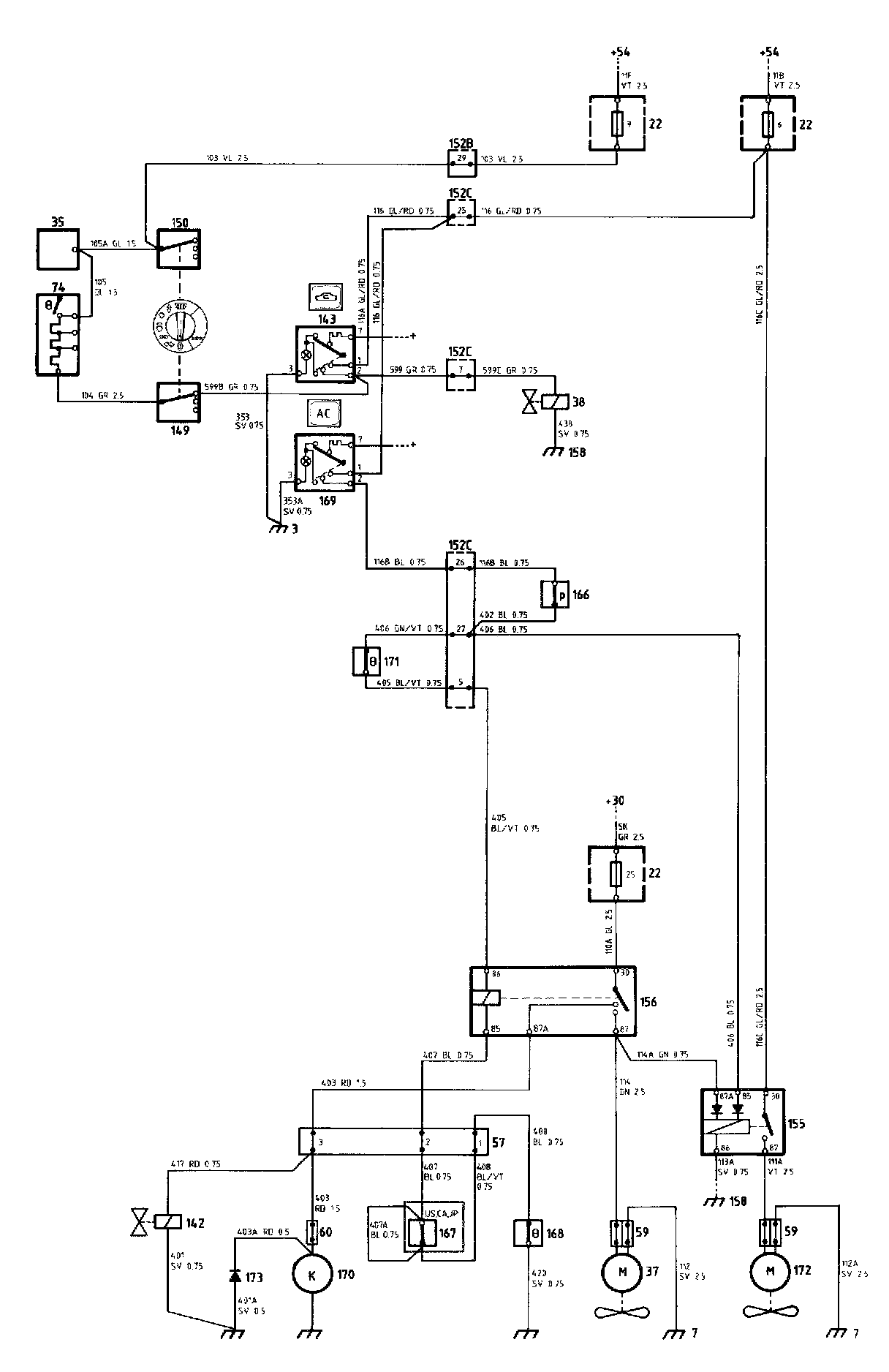

Air Conditioner (AC) Diagrams 1984:
Air Conditioner (AC) Components 1984:

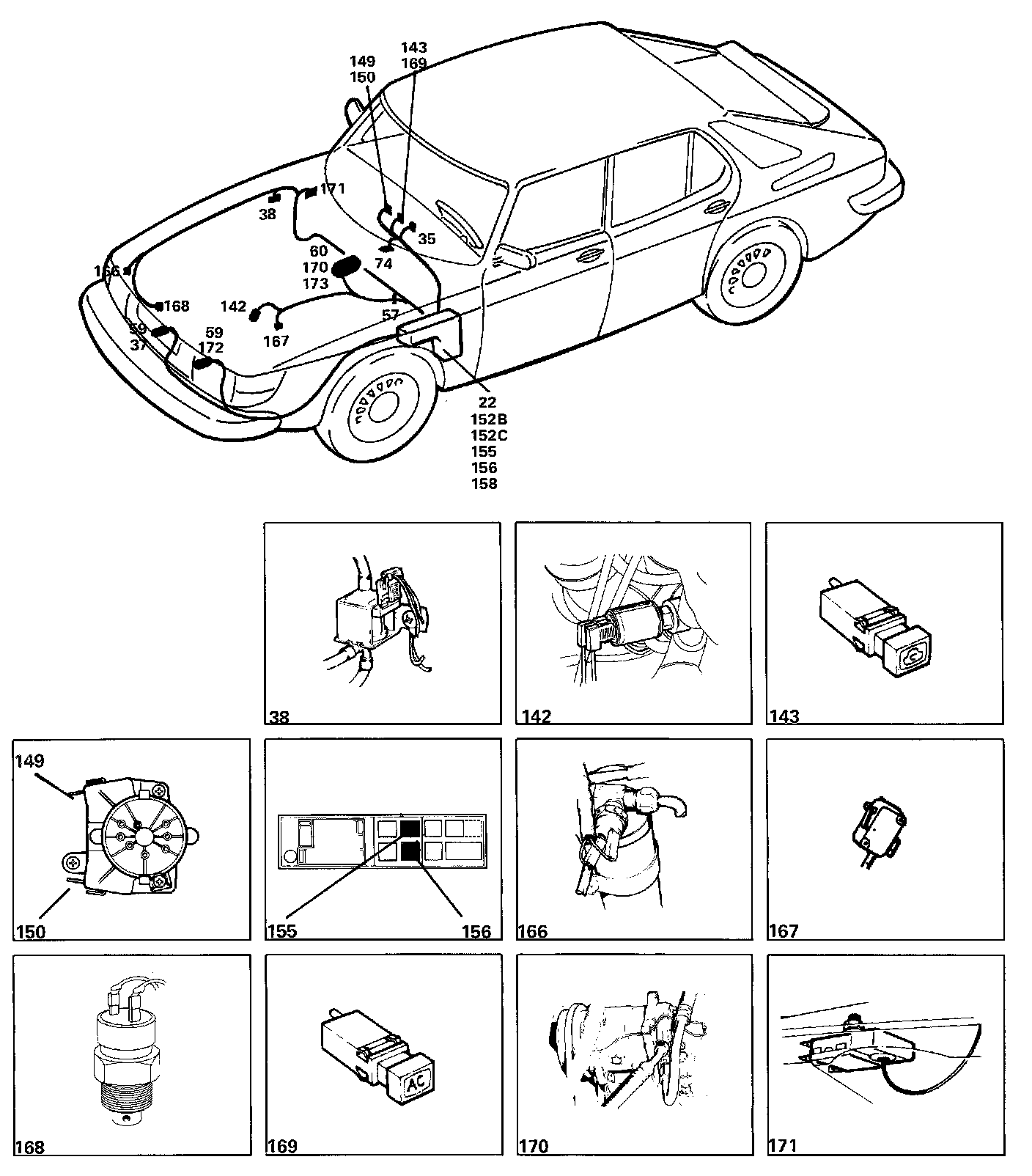

Locations of components
3 Earthing point
In the facia
7 Earthing point
On the radiator cross-member
22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing
35 Selector switch for the ventilation fan
In the centre of the facia
37 Radiator fan motor (ordinary)
On the right-hand side of the radiator package
38 Recirculation valve
In the engine compartment, above the right-hand wheel housing
57 3-pole connector
In the engine compartment, behind the expansion tank
59 2-pole connector
One adjacent to radiator fan 37
One adjacent to AC radiator fan 172
74 Resistor for ventilation fan accessible
Under the left-hand speaker grille
142 Solenoid valve for raising the idling speed
AC on the engine, on the by-pass hose of the throttle housing
143 Recirculation switch, AC
In the centre of the facia
149 Main switch for ventilation fan
On the facia, in the air distribution control (upper contact)
150 Air distribution switch, AC position
On the facia, in the air distribution control (lower contact)
152B 29-pole red connector
152C 29-pole black connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing The connectors are accessible from the interior of the car.
155 Relay for the AC radiator fan
In the electrical distribution box in the engine compartment, on the left-hand wheel housing
156 Relay for the AC compressor
In the electrical distribution box in the engine compartment, on the left-hand wheel housing
158 Negative distribution terminal
In the electrical distribution box in the engine compartment, on the left-hand wheel housing
166 Pressure switch for the AC radiator fan
In the engine compartment, on the drying agent container, forward of the right-hand wheel housing
167 Throttle switch, AC
On the engine throttle housing
168 Coolant temperature switch, AC
169 Switch, AC
In the centre of the facia
170 Compressor for the AC
At the rear of the engine compartment
171 Anti-freeze thermostat (cycling clutch contact) for the AC
In the engine compartment, on the right hand side of the air conditioner housing
172 Radiator fan for the AC
On the left-hand side of the radiator package
173 Diode for the AC compressor
In the cable harness, at the rear of the valve cover
Operation
Certain cars are equipped with an Air Conditioner (AC).
Compressor and radiator fan motor 37
The AC can be switched on and off by means of AC switch 169, which is supplied from fuse 6, via the 29- pole black connector 152C. When the switch is depressed, the lamp built into the button will be supplied directly (not via the resistor), so it will light up with full intensity.
Compressor 170 and ordinary radiator fan 37 are connected via relay 156, which is supplied from fuse 25. The relay will be energized when the following conditions are satisfied:
Pressure switch 166 is closed, i.e. the refrigerant pressure is at least 2.8 bar.
Anti-freeze thermostat (cycling clutch contact) 171 is closed, i.e. the ambient temperature is at least about +6 °C.
Throttle switch 167 is closed, i.e. the butterfly valve is not open more than 700 (if the jumper is cut).
Temperature switch 168 is closed. (The switch will open if the engine temperature exceeds around +115 °C.)
Solenoid valve 142, which raises the engine idling speed, is connected in parallel with the compressor and the radiator fan. Diode 173 reduces the voltage transients at the instant when the compressor is switched off.
AC radiator fan 172
Extra radiator fan 172 for the AC is connected via relay 155 and is supplied from fuse 6.
The relay coil is supplied from the contacts of relay 156 and from pressure switch 166. The AC radiator fan thus runs when AC switch 169 is depressed and pressure switch 166 is closed.
Recirculation valve
Recirculation valve 38, which controls the recirculation damper, will be switched on when recirculation switch 143 is depressed. The switch is supplied from fuse 6. When the switch is depressed, the lamp built into the switch will light up with full intensity.
The recirculation valve is also connected across main switch 149, when the air distribution control is in position 0 or 4 (regardless of the position of switch 143). The supply is taken from fuse 9, via ventilation fan resistor 74.
Fault-tracing hints
As a general rule, supply to the unit is live when the ignition switch is in the drive position. If none of the components are faulty, check the cable harnesses, connectors and earth connections.
Compressor and radiator fan motor 37
1. Check fuses 6 and 25 and check that the supply to AC switch 169 and relay 156 is live.
2. Press the AC switch. Measure the voltage across pressure switch 166 (the pressure switch should be closed). Note that refrigerant will spray out when the pressure switch is disconnected. Caution: Risk of frostbite.
3. Check cycling clutch contact 171. (It should close at +6 °C.)
4. Check relay 156 and check that switches 167 and 168 in the earth circuit of the relay are closed when the engine is idling and at normal engine temperature, respectively.
5. Check that the supplies to the compressor and the radiator fan are live.
AC radiator fan 172
1. Check fuse 6 and check that the supply to the AC switch and to relay 155 is live.
2. Press the AC switch. Measure the voltage across pressure switch 166 (the pressure switch should be closed). Note that refrigerant will spray out when the pressure switch is disconnected. Caution: Risk of frostbite.
3. Check that relay 155 is being energized and that the supply to the AC radiator fan is live.
Recirculation
1. Check fuse 6 and check that the supply to recirculation switch 143 is live.
2. Press the switch and check that the recirculation valve is activated.
3. Check fuse 9 and check that the supply to main switch 149 in the air distribution control is live.
4. When the control is in position 0 or <- ->, the recirculation valve should be activated.
