Clock

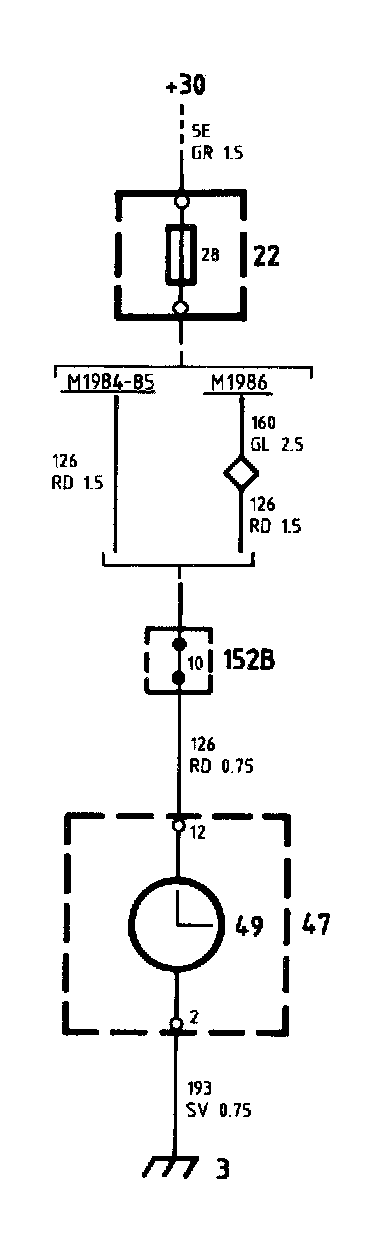

Clock Diagrams:

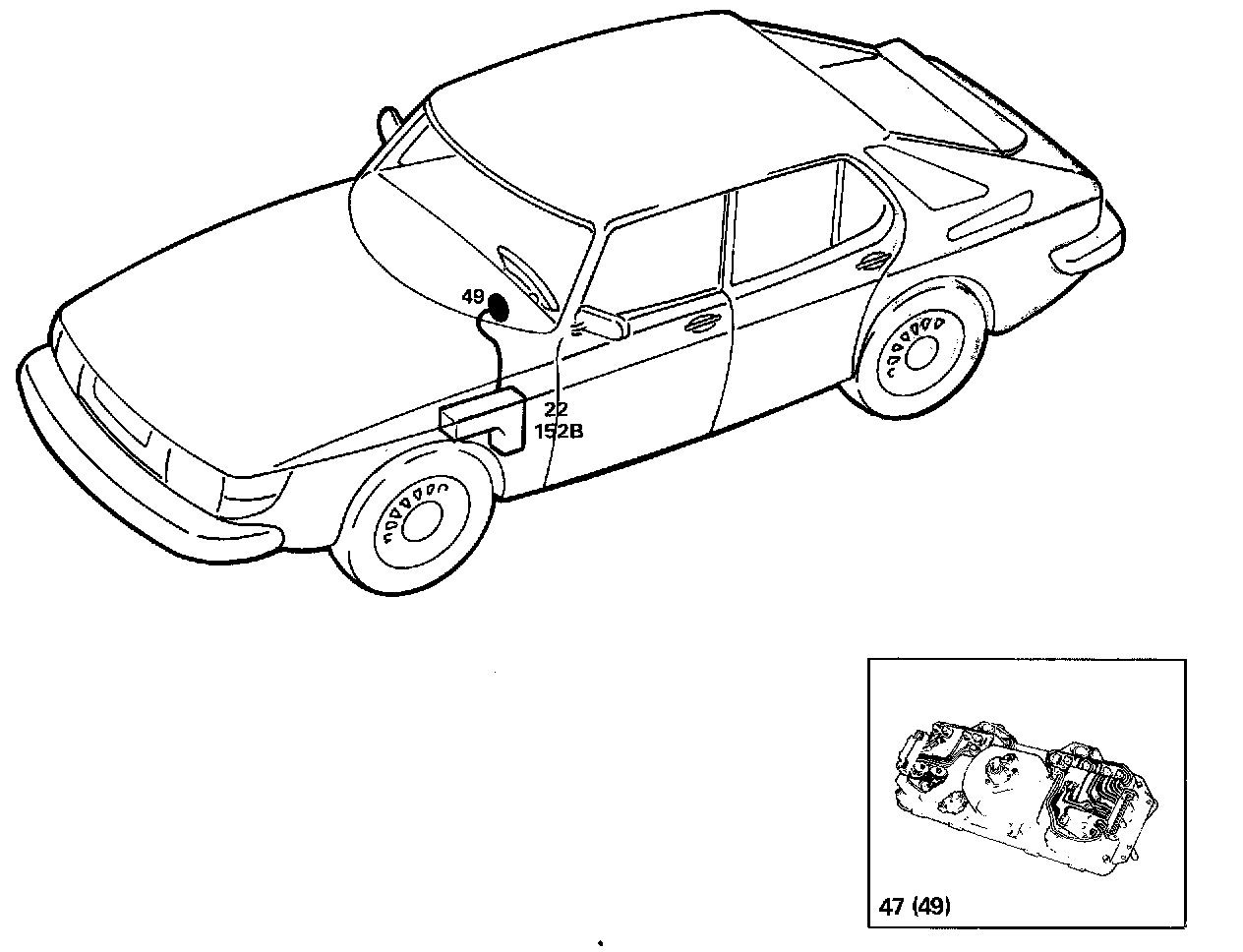

Clock Components:

Locations of components

3 Farthing point
In the facia

22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

49 Clock
In the combined instrument, to the left of the speedometer

152B 29-pole red connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car

Operation
Clock 49 is located in combined instrument 47. The positive supply to the clock is taken from fuse 28, via the 29-pole red connector 152B. The supply to the clock is live (+30) regardless of the position of the ignition switch.

Fault-tracing hints

1. Check fuse 28 and check that the supply to it is live.

2. Check that the positive terminal of the clock is live, and that the negative terminal is earthed.

3. Check the connectors, cable harnesses and earth connection.
