Radio, Stereo, and Compact Disc

Radio Installation Diagrams 1984-85:

Radio Installation Components 1984-85:

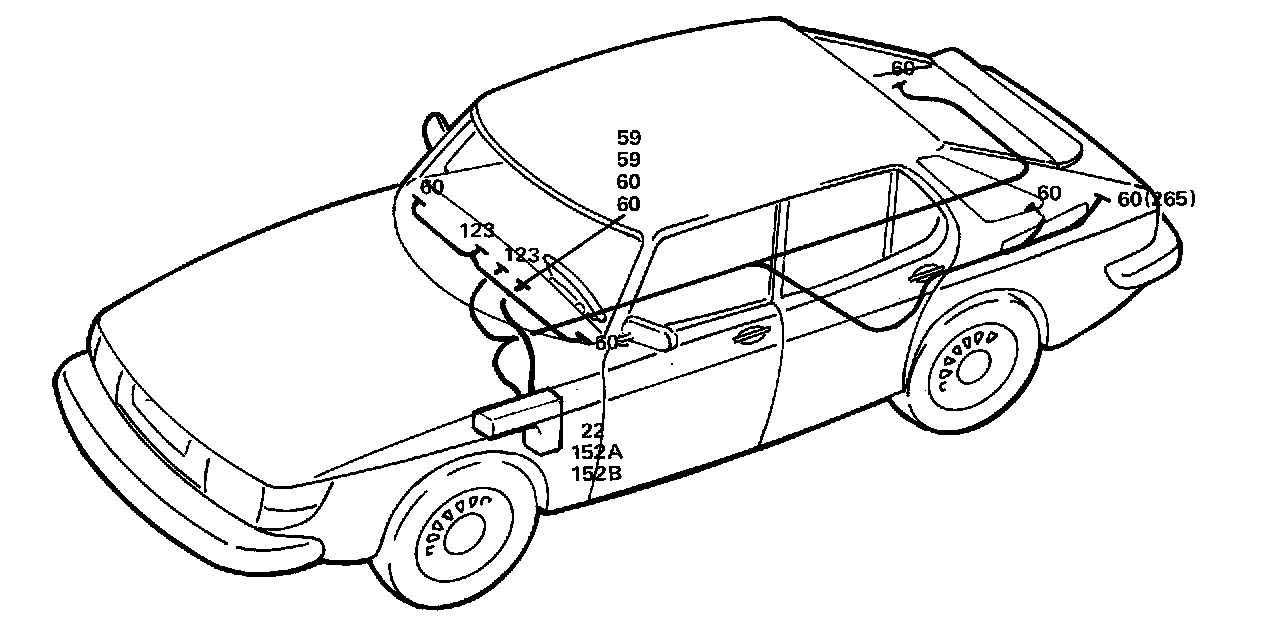

Locations of components

3 Earthing point
In the facia

22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

59 2-pole connector
Two in the radio compartment in the facia

60 Single-pole connector
Two in the radio compartment in the facia
Two under the speaker grille, on the left-hand side of the facia
Two under the speaker grille, on the right-hand side of the facia
Two on the left-hand side of the luggage compartment, behind the upholstery, at the parcel shelf
Two at the mounting point for the electrically operated aerial (265), on the left-hand rear wing (in the luggage compartment)
Two on the right-hand side of the luggage compartment, behind the upholstery, at the parcel shelf

123 4-pole connector
Two in the radio compartment in the facia

152A 29-pole white connector
152B 29-pole red connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connectors are accessible from the interior of the car

Operation
Space has been reserved in the facia for a radio (267). On certain markets/models, the car has also been prepared for the installation of a radio by running the wiring for the speakers and an electrically operated aerial to various points in the car.

Power supply
European and other markets

The following connectors are included in the radio compartment in the facia:

A single-pole connector (60) for the radio memory.

A 2-pole connector (59) for the power supply to the radio and any booster amplifier, via fuse 28, which is supplied directly from the battery (regardless of the position of the ignition switch). Black = earth and red = positive supply.

U.S.A., Canadian and Japanese markets

The following connectors are included in the radio compartment in the facia:

A single-pole connector (60) for the radio memory.

A 2-pole connector (59) for the power supply to any booster amplifier, via fuse 28, which is supplied directly from the battery (regardless of the position of the ignition switch). Black = earth and red = positive supply.

A 2-pole connector (59) for the power supply to the radio, via fuse 20, which is supplied when the ignition switch is in the park, drive or start positions. Black = earth and red = positive supply.

Speakers and aerial
The following components are included in the radio compartment in the facia:

Two 4-pole connectors (123) for the front speakers (266), one on each side of the facia. Each speaker is connected via single-pole connector 60.

Two 4-pole connectors (123) for the rear speakers (266), one on each side of the parcel shelf.

A single-pole connector (60) for control of the electrically operated aerial (265). The motor of the electrically operated aerial is supplied via fuse 28.

A coaxial cable which runs to the mounting point for the aerial, on the left-hand rear wing.

Fault-tracing hints
1. Check the supply to the radio and the earth connection.
2. Check the connectors.
3. Check the existing cable harness for open circuits and short circuits to earth.
