Hazard Warning Lamps

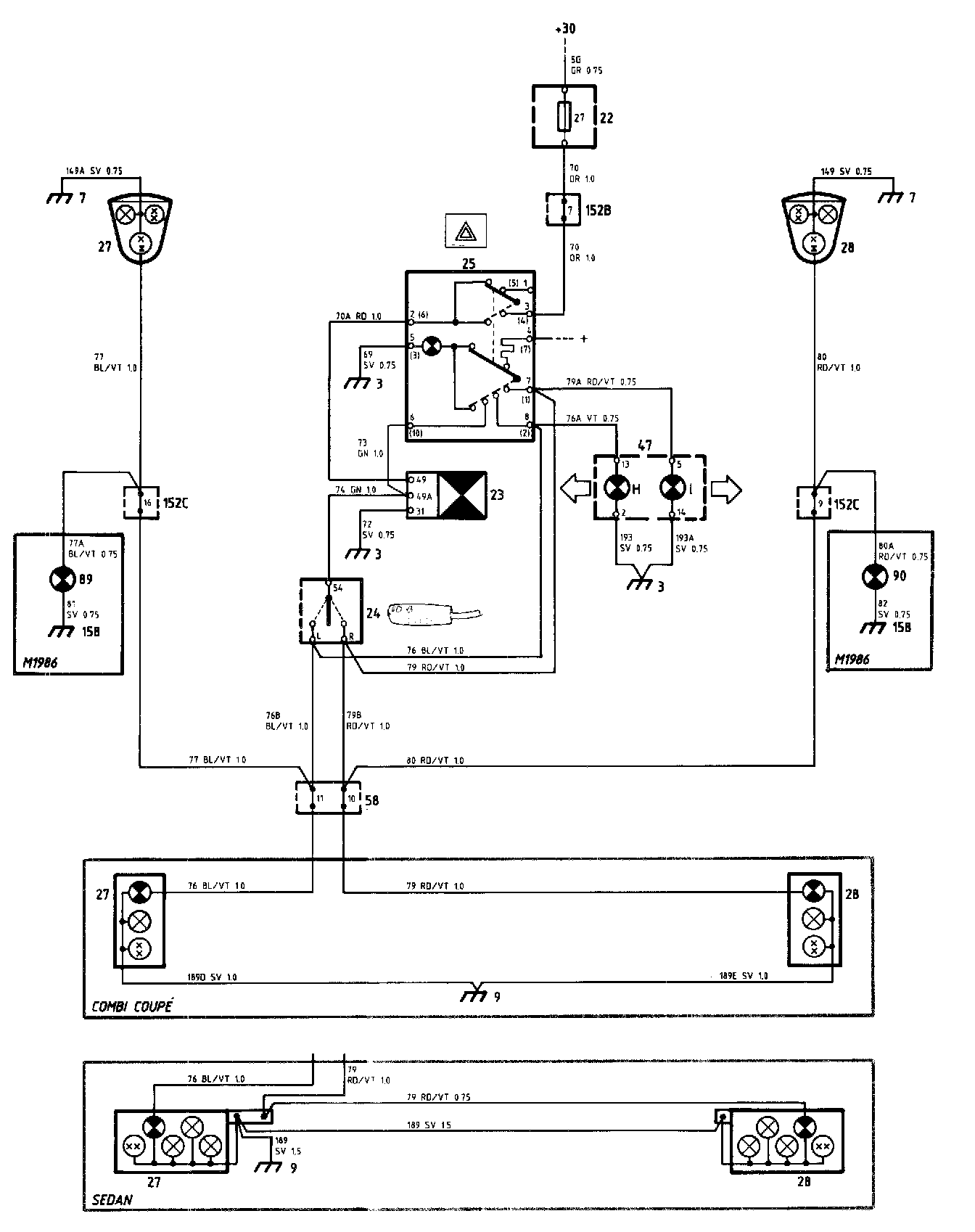

Hazard Warning Lights Diagrams:

Hazard Warning Lights Components:

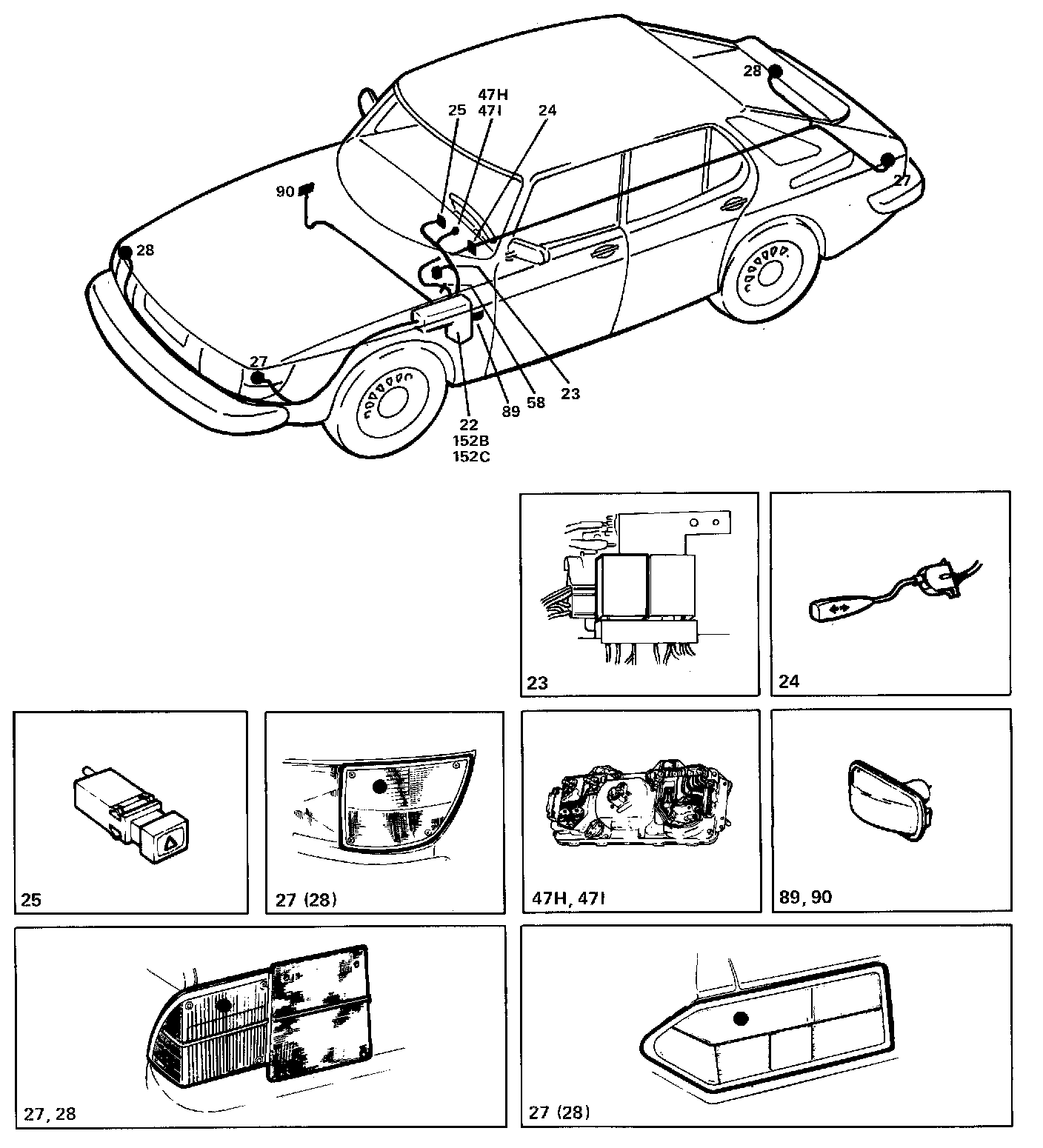

Locations of components

3 Earthing point
In the facia

7 Earthing point
On the radiator cross-member

9 Earthing point
In the luggage compartment

22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

23 Flasher relay
Under the facia on the left-hand side, behind the knee shield

24 Direction indicator stalk switch
On the left-hand side of the steering column

25 Hazard warning light switch
On the right-hand side of the facia

27 Direction indicator lamps, left-hand
In the front and rear light clusters on the left-hand side of the car

28 Direction indicator lamps, right-hand
In the front and rear light clusters on the right-hand side of the car

47H Left-hand direction indicator warning lamp
In the combined instrument in the instrument panel

471 Right-hand direction indicator warning lamp
In the combined instrument in the instrument panel

58 12-pole connector
On the angle bracket, under the facia on the left-hand side (behind the knee shield)

89 Side direction indicator, left-hand
On the left-hand front wing

90 Side direction indicator, right-hand
On the right-hand front wing

152B 29-pole red connector
152C 29-pole black connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car.

Operation
The supply is taken from fuse 27 to hazard warning light switch 25 via the 29-pole red connector 152B. (The pin numbers within parentheses for the switch refer to the 1984 and 1985 models only.) When this switch is depressed, the current continues to flasher relay 23 via terminal 2.

From the flasher relay, the current pulses return to switch 25. Since the latter is closed, the current pulses continue to terminals 8 (left-hand) and 7 (right-hand). They are supplied with current pulses only when the flasher relay is energized.

Front and rear left-hand direction indicator lamps 27 are then supplied with current pulses via terminal L on direction indicator stalk switch 24, across pin 11 of connector 58.

Lamps 28 on the right-hand side of the car are supplied in the same way from pin 7 of the hazard warning light switch, across pin 10 of connector 58.

The two direction indicator warning lamps, 47H (lefthand) and 471 (right-hand) will also flash.

1986 models
The 1986 models are equipped with side direction indicators 89 and 90 located on the left-hand and right-hand front wings respectively. The lamps are supplied in parallel with the direction indicator lamps in the front light clusters.

Fault-tracing hints
The hazard warning lights are always supplied.

1. Check fuse 27 and check that the supply to it is live.

2. Check that the supply to hazard warning light switch 25 is live.

3. Press the switch and check that terminal 6 (1984 and 1985 models) or 2 (1986 models) is live.

4. Check that terminals 49 and 49A of flasher relay 23 are live.

5. Check the bulbs and check that the supply to them is live.

6. Check the connectors, cable harnesses and earth connections.
