Trunk Lamp

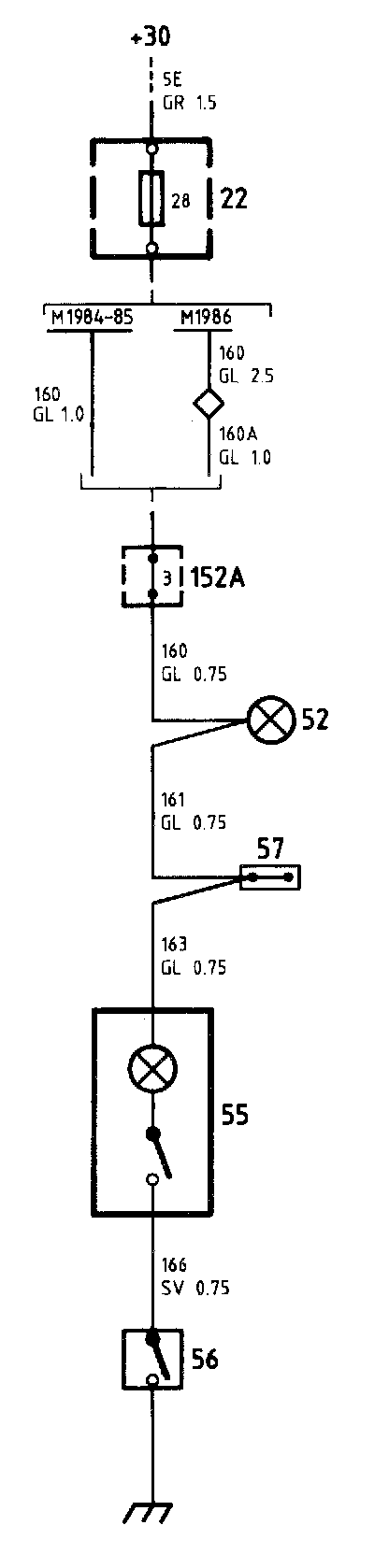

Luggage Compartment Illumination Diagrams:

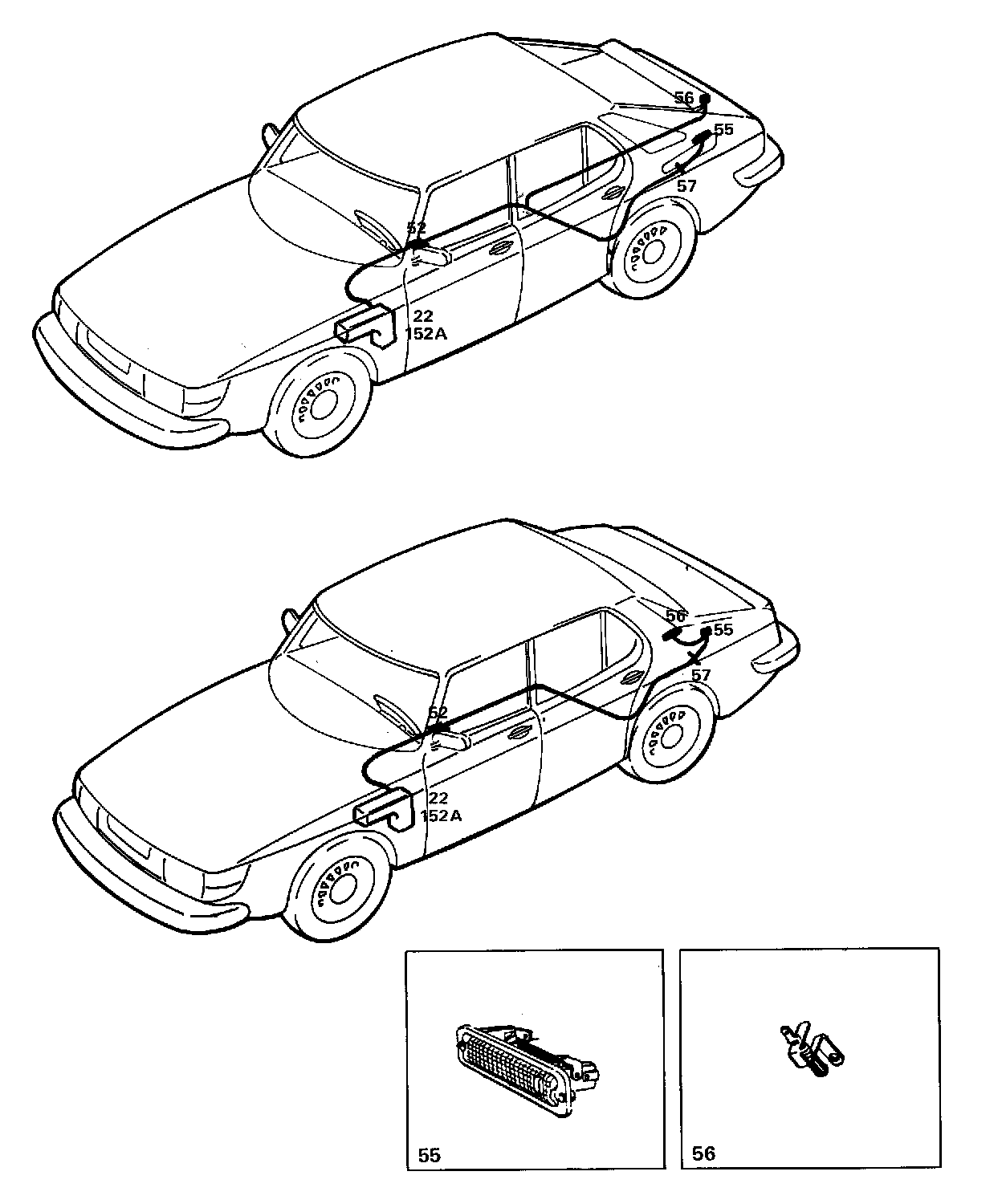

Luggage Compartment Illumination Components:

Locations of components

22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

52 Ignition switch lighting
Between the front seats, under the centre console

55 Luggage compartment lamp
In the luggage compartment, on the left-hand side

56 Luggage compartment light switch
Combi Coupe: in the luggage compartment, at the tailgate striker plate.
Sedan: in the luggage compartment, forward of the left hinge of the luggage compartment lid.

57 3-pole connector
On the left-hand side of the luggage compartment

152A 29-pole white connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car

Operation
The supply to luggage compartment lamp 55 is taken from fuse 28 and then on to switch 56. When the luggage compartment lid is opened, the switch will close the circuit to earth and the lamp will light up.

The luggage compartment illumination can be switched off manually by means of the switch in the lamp fitting.

Fault-tracing hints
1. Check fuse 28 and check that the supply to it is live.
2. Check the bulb and check that the supply to it is live.
3. Check the switches.
4. Check the connectors, cable harnesses and earth connections.
