Turn Signals

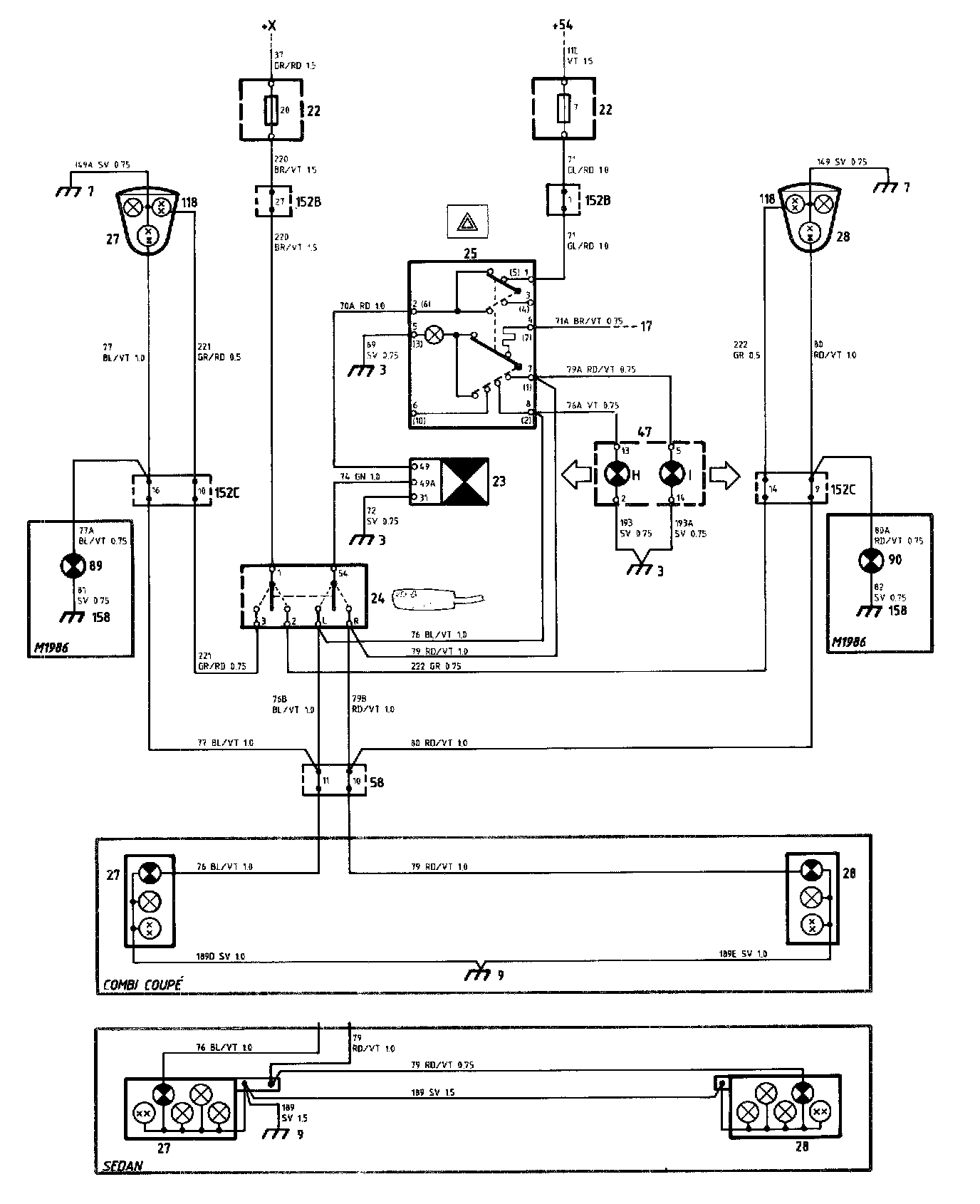

Direction Indicators Diagrams (USA,CAN,JAPAN):
Direction Indicators Components (USA,CAN,JAPAN):
Locations of components
3 Earthing point
In the facia
7 Earthing point
On the radiator cross-member
9 Earthing point
In the luggage compartment
22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing
23 Flasher relay
Under the facia on the left-hand side, behind the knee shield
24 Direction indicator stalk switch
On the left-hand side of the steering column
25 Hazard warning light switch
On the right-hand side of the facia
27 Direction indicator lamps, left-hand
In the front and rear light clusters on the left-hand side of the car
28 Direction indicator lamps, right-hand
In the front and rear light clusters on the right-hand side of the car
47H Left-hand direction indicator warning lamp
In the combined instrument in the instrument panel
471 Right-hand direction indicator warning lamp
In the combined instrument in the instrument panel
58 12-pole connector
On the angle bracket, under the facia on the left-hand side (behind the knee shield)
89 Side direction indicator, left-hand
On the left-hand front wing
90 Side direction indicator, right-hand
On the right-hand front wing
118 Driving lights
In the front light clusters
152B 29-pole red connector
152C 29-pole black connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car.
Operation
This section covers cars for the U.S.A., Canadian and Japanese markets only.
The supply is taken from fuse 7 to hazard warning light switch 25 via the 29-pole red connector 152B. It is then taken through this switch (in the un-actuated position) to flasher relay 23. (The pin numbers within parentheses for switch 25 refer to the 1984 and 1985 models.)
When direction indicator stalk switch 24 is moved from the neutral position, current pulses are supplied from flasher relay 23 to left-hand direction indicator lamps 27 or right-hand direction indicator lamps 28 (terminal L or R), via connector 58, and pin 11 (left) or 10 (right). The front lamps are also supplied via the 29-pole black connector 152C.
In addition, the two direction indicator warning lamps, 47H (left) and 471 (right) are connected in parallel with the direction indicator lamps for the respective side of the car.
The front light clusters of cars for these markets are also equipped with driving lights 118, which light up with a steady white light when the corresponding direction indicator flashes.
The driving lights are is supplied directly from fuse 20 (not through the flasher relay). Fuse 20 is live when the ignition switch is in the parked or drive position.
The respective lamp 118 is supplied from terminal 3 (left-hand) or 2 (right-hand) of direction indicator stalk switch 24, via the 29-pole black connector 152C.
1986 models
The 1986 models are equipped with side direction indicators 89 and 90, located on the left-hand and right-hand front wings respectively. The lamps are supplied in parallel with the direction indicator lamps in the front light clusters.
Fault-tracing hints
The direction indicators are operative when the ignition switch is in the drive position.
1. Check fuse 7 and check that the supply to it is live.
2. Check that the following terminals of hazard warning light switch 25 are live:
1984 and 1985 models: 5 and 6
1986 models: 1 and 2
3. Check that terminals 49 and 49A of flasher relay 23 are live.
4. Check that terminal 54 of direction indicator stalk switch 24 is live.
5. Operate the direction indicator stalk switch. Check the bulbs and check that the supply to them is live.
6. Check the respective cable harness and earth connections.
To check the driving Eights
Activate this system by turning the ignition switch to the drive position.
1. Check fuse 20 and check that the supply to it is live.
2. Check that terminal 1 of switch 24 is live.
3. Operate the direction indicator stalk switch Check the bulbs and check that the supply to them is live.
4. Check the respective cable harness and earth connections.
