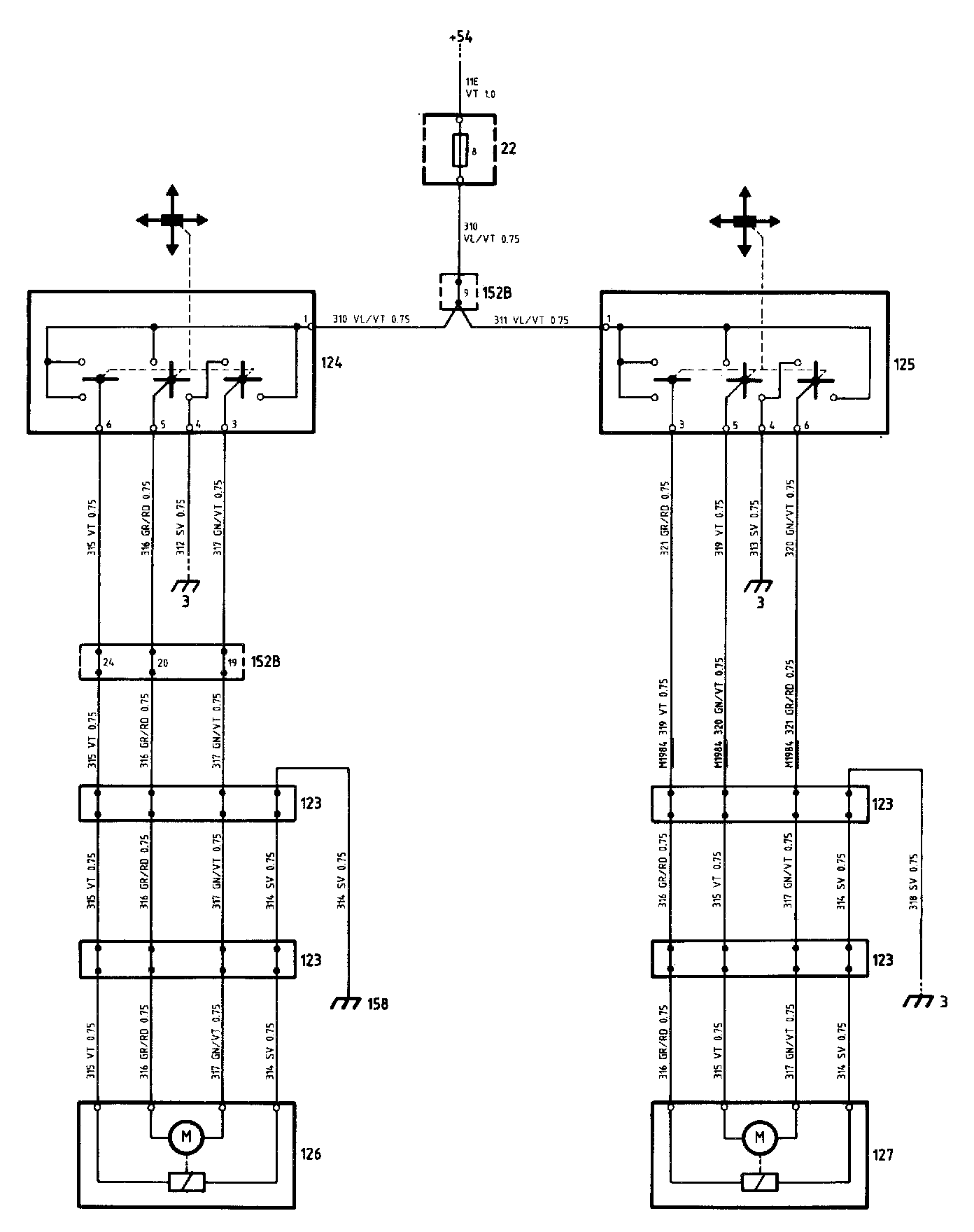

System Diagram

Electrically Operated Rear-View Mirrors Diagrams:

Electrically Operated Rear-View Mirrors Components:

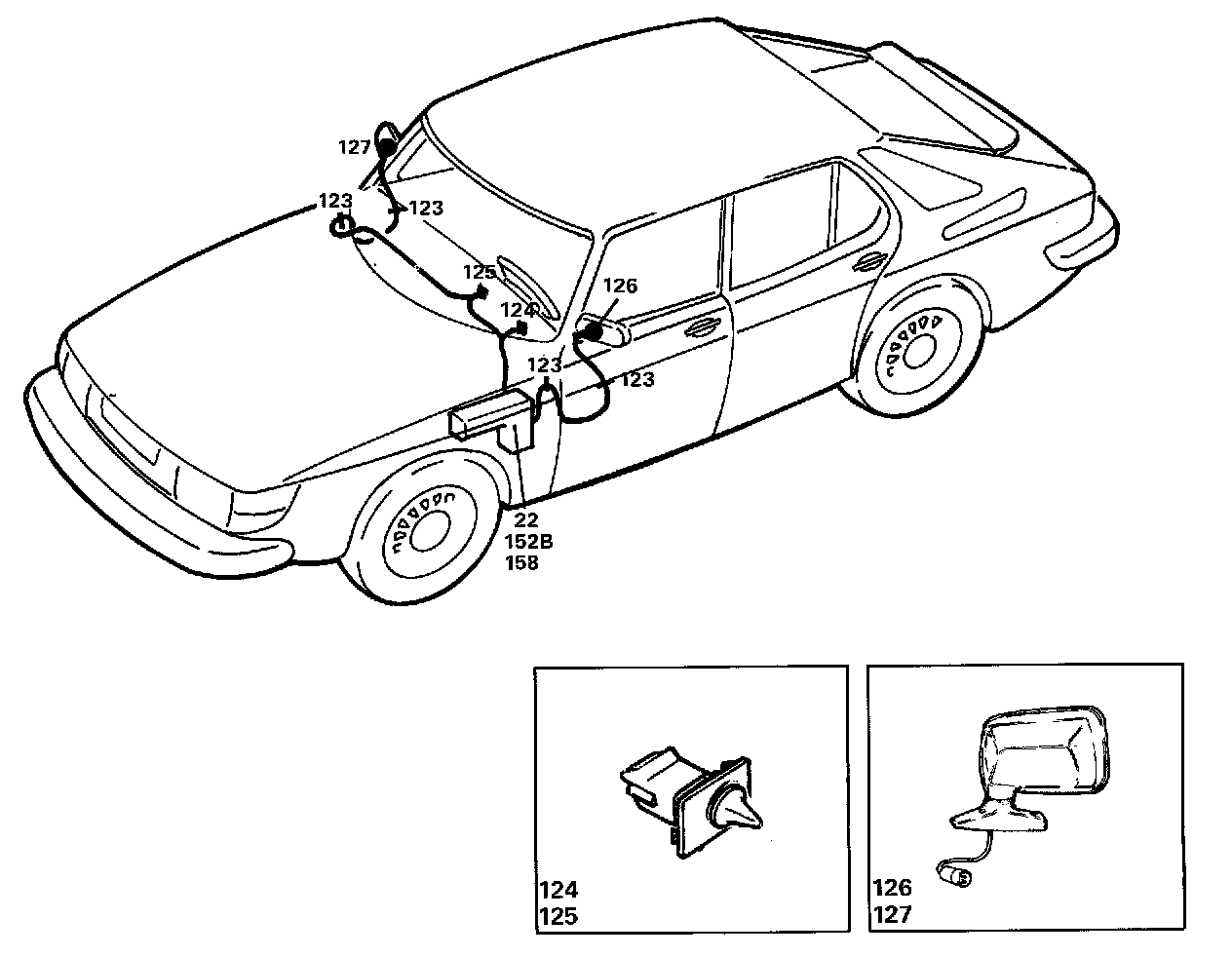

Locations of components

3 Earthing point
In the facia

22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

123 4-pole connector
One in the engine compartment, at the upper hinge of the left-hand front door, behind the electrical distribution box
One in the left-hand front door
One in the engine compartment, at the upper hinge of the right-hand front door
one in the right-hand front door

124 Switch for the left-hand electrically operated rear-view mirror
On the facia, to the left of the steering column

125 Switch for the right-hand electrically operated rear-view mirror
On the facia, to the right of the steering column

126 Motor for the left-hand electrically operated rear-view mirror
In the left-hand rear-view mirror

127 Motor for the right-hand electrically operated rear-view mirror
In the right-hand rear-view mirror

152B 29-pole red connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car

158 Negative distribution terminal
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

Operation
Each of the outer rear-view mirrors is operated by means of a four-position switch.

The two switches, 124 (left) and 125 (right), are supplied from fuse 8, via the 29-pole red connector 152B.

Each rear-view mirror will turn in the same direction in which the switch lever is pressed. For horizontal setting, only the mirror motors are used. For vertical setting, a solenoid is also energized, which causes the motors to move the mirrors vertically, instead of horizontally.

The following table lists the cables that are live/earthed in each switch position:

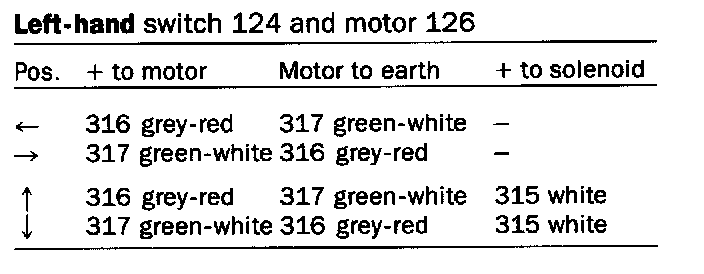

Left - Hand Switch 124 And Motor 126:

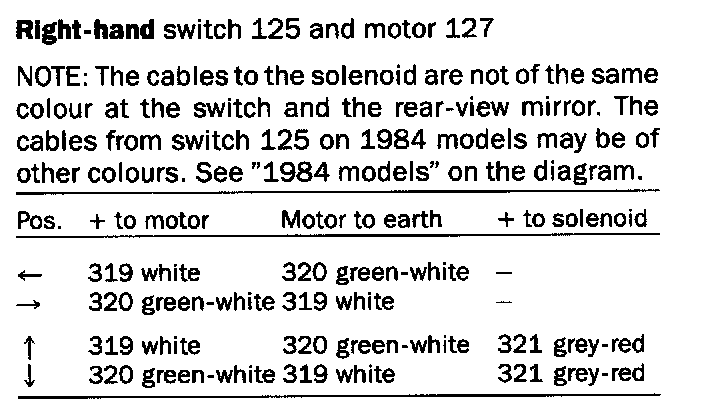

Right - Hand Switch 125 And Motor 127:

Fault-tracing hints
The rear-view mirrors will be operative when the ignition switch is in the drive position.

1. Check fuse 8 and check that the supply to it is live.

2. Check that the supply to the corresponding switch is live.

3. Check that the supply to the corresponding motor and to the solenoid is live, by operating the switch. The table shown in the "Operation" section lists the cables that are live in each switch position:

4. Check the connectors, cable harnesses and earth connections.
