Radio, Stereo, and Compact Disc

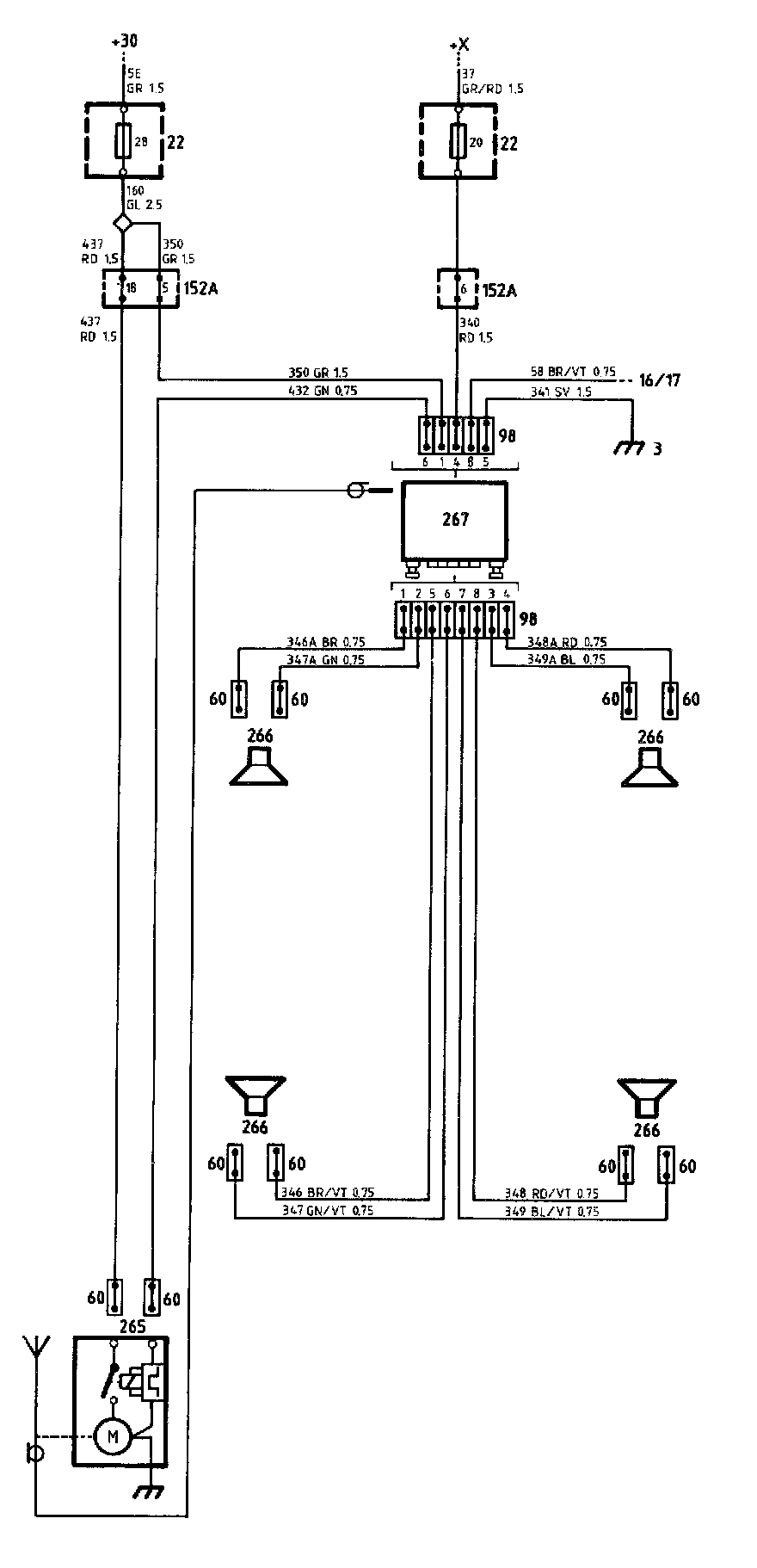

Radio Installation Diagrams 1986:

Radio Installation Components 1986:

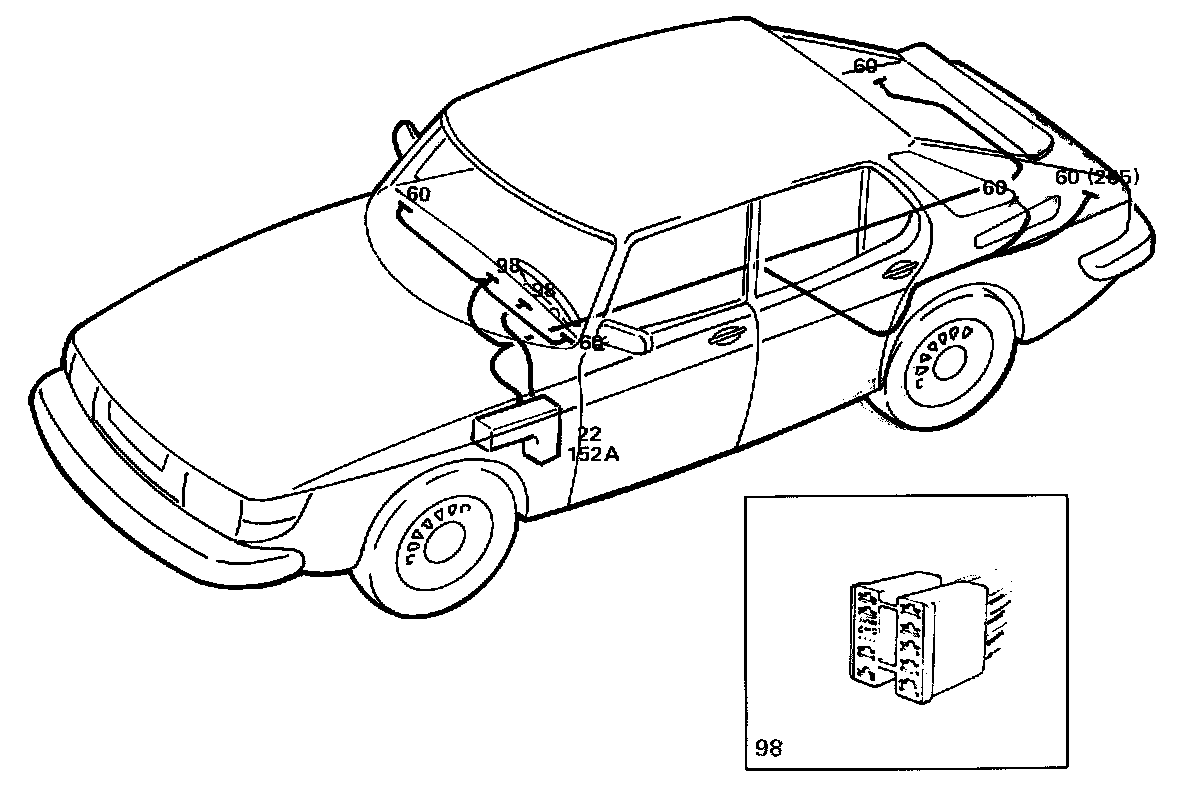

Locations of components

3 Earthing point
In the facia

16 Instrument lighting rheostat
In the combined instrument

17 Extra rheostat for the lighting of switches and controls
On the left-hand side of the facia

22 Fuse box
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

60 Single-pole connector for the speakers (266):
Two under the speaker grille, on the left-hand side of the facia
Two under the speaker grille, on the right-hand side of the facia
Two on the left-hand side of the luggage compartment, behind the upholstery, at the parcel shelf
Two on the right-hand side of the luggage compartment, behind the upholstery, at the parcel shelf

Single-pole connector for the electrically operated aerial (265):
Two at the mounting point for the electrically operated aerial, on the left-hand rear wing (in the luggage compartment)

98 10-pole connector (for radio 267)
Two in the radio compartment in the facia

152A 29-pole white connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car.

Operation
Space has been reserved in the facia for a radio (267). On certain markets/models, the car has also been prepared for the installation of a radio by running the wiring for the speakers and an electrically operated aerial to various points in the car.

Two 10-pole connectors (98), one for the power supply and one for the speakers, are fitted in the radio compartment in the facia. A coaxial cable has also been run to the mounting point for the aerial, on the left-hand rear wing.

Power supply
The following cables are connected to the upper 10- pole connector 98 shown on the wiring diagram:

Grey (pin 1) - Positive supply via fuse 28, which is supplied directly from the battery (regardless of the position of the ignition switch).

Red (pin 4) - Positive supply via the ignition switch and fuse 20. The radio is supplied when the ignition switch is in the park or drive positions.

Black (pin 5) - Earth.

Green (pin 6) - For control of the electrically operated aerial (265). The motor of the electrically operated aerial is supplied via fuse 28.

Brown/white (pin 8) - Dial lighting. The supply is taken from the instrument lighting rheostat 16/17.

Speakers
The speaker connections are made via the lower 10- pole connector.

Left-hand front:
Brown (pin 1)
Green (pin 2)

Right-hand front:
Blue (pin 3)
Red (pin 4)

Left-hand rear:
Brown/white (pin 5)
Green/white (pin 6)

Right-hand rear:
Blue/white (pin 7)
Red/white (pin 8)

Each speaker is connected via single-pole connector 60.

Fault-tracing hints
1. Check the supply to the radio and the earth connection.
2. Check the connectors.
3. Check the existing cable harness for open circuits and short circuits to earth.
