Clutch - Tools & Replacement Information
87saab03FILE IN S.I. Man VOL. I
SEC. A-1 PG. 104
Service Information
SUBJECT: CLUTCH REPLACEMENT ISSUE: 03/87-952
NEW SPECIAL TOOLS
APPLICATION: ALL 900 MODELS
New pressure plates are being introduced which require new tools for installation and replacement. These pressure plates are first being introduced into the spare parts system and will eventually be found in new car production.
A new spring spacer is necessary for working with the new plate as well as a hook which allows the shop to upgrade its existing clutch removal bar (83-94- 033).
Spacer 87-91-618
Hook 83-94-306
These items have been assigned as required special tools. An automatic shipment will be made to your dealership during the last part of March 1987. Your account will be charged accordingly.
Please store the spacer on your Saab Tool Board in the space given for Spacer 83-90-023. The hook should be mounted to your Clutch Removal Bar which also hangs on the board.
Given below are instructions for upgrading your existing Clutch Removal Bar 83-94-033.
Modification Instructions:

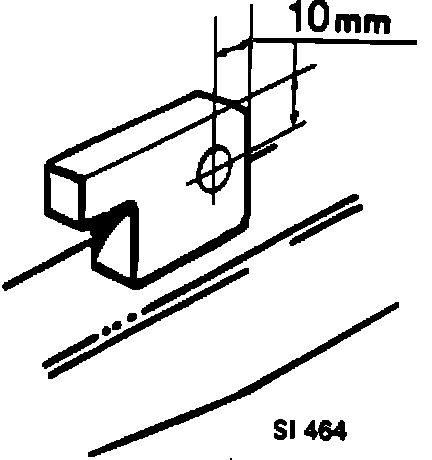

1. Drill a hole in the existing Clutch Removal Bar as shown in the drawing.
The drawing gives dimensions for location.
Drill Size 11/32" (8.2 mm)

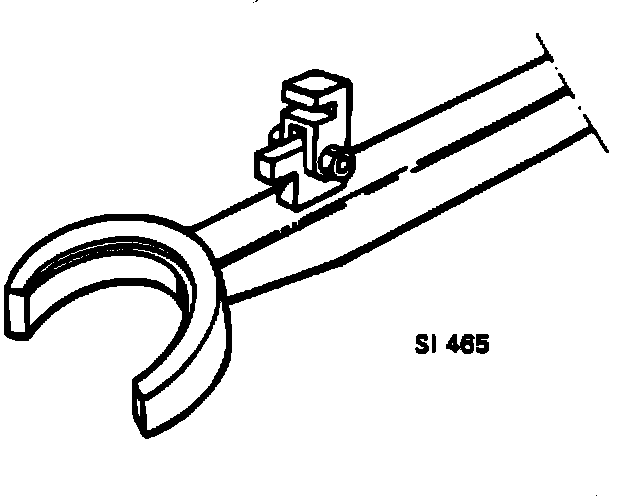

2. Mount the hook to the Clutch Removal Bar with the 8 mm nut and bolt which is supplied.
From May 1987 all clutch removal bars 83-94-033 purchased from your Saab Parts Depot will have the adapter hook pre-installed.
Pricing Information:
87-91-618 $10.10 dlr. net
83-94-306 $12.30 dlr. net
