Shift Rod Taper Pin - Special Tool

86saab02

FILE IN S.I. Man VOL. I

SEC. A-1 PG. 91
Service Information

SUBJECT: SPECIAL TOOL FOR REMOVING SHIFT ISSUE: 08/86-875 ROD TAPER PIN


APPLICATION: ALL 900 AND 9000 MODELS WITH MANUAL TRANSMISSION



A new special tool is now available to assist the technician in removing the taper pin from the gearshift rod on 900 and 9000 models with manual transmissions. The new hand held press can be used whenever the powerplant is being removed or when work is performed on the shift mechanism.

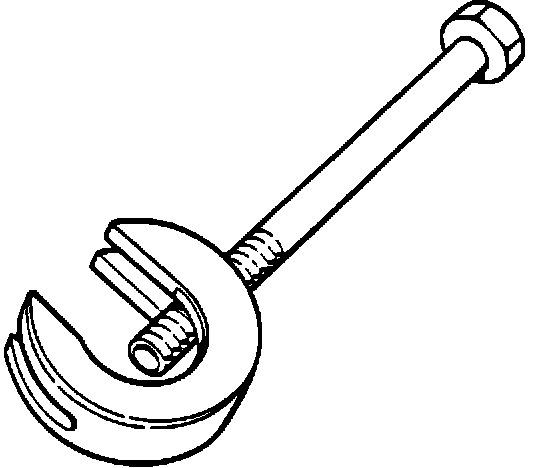

Taper Pin Press P/N 87-91-394

This has not been assigned as a required Saab special tool. Purchase of the tool is at the dealer's option.

Supplies may be ordered from your servicing Saab Parts Depot.
Pricing Information (dlr. net)

87-91-394 $35.60
