Upshift Indicator - Will Not Go Out On Deceleration
85saab03FILE IN S.I. Man. VOL.
SEC. A-3 PG. 92
Service Information
SUBJECT: UPSHIFT LIGHT SYSTEM WITH INCORRECT ISSUE: 11/85-801 WIRE CONNECTIONS
APPLICATION: 1986 900, FINLAND PRODUCTION
Cars built on Line 7 may have misconnected wires at the throttle housing. If this occurs, the "Upshift Light" in the dashboard cluster will not extinguish during deceleration.
Cars affected are from VIN Serial Nos.:
G7000000 - G7003242

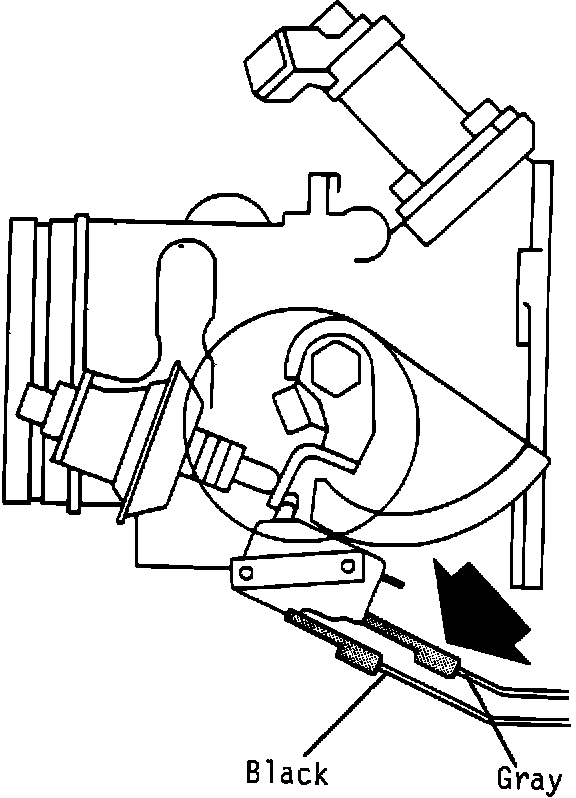

Should you receive an upshift light complaint, check the connections at the throttle housing microswitch. The bottom two terminals must be connected as shown in the drawing. The upper terminal must not be used.
Warranty Information: Use Failure Code 38332-01-0-01-05. For labor, enter Operation No. 38332 for 0.2 hour. Time actually needed to correct this problem is about 5 minutes ($10 Claim Minimum applies).
