Home >> Saab >> 1986 >> 9000 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trip Computer >> DCC

DCC

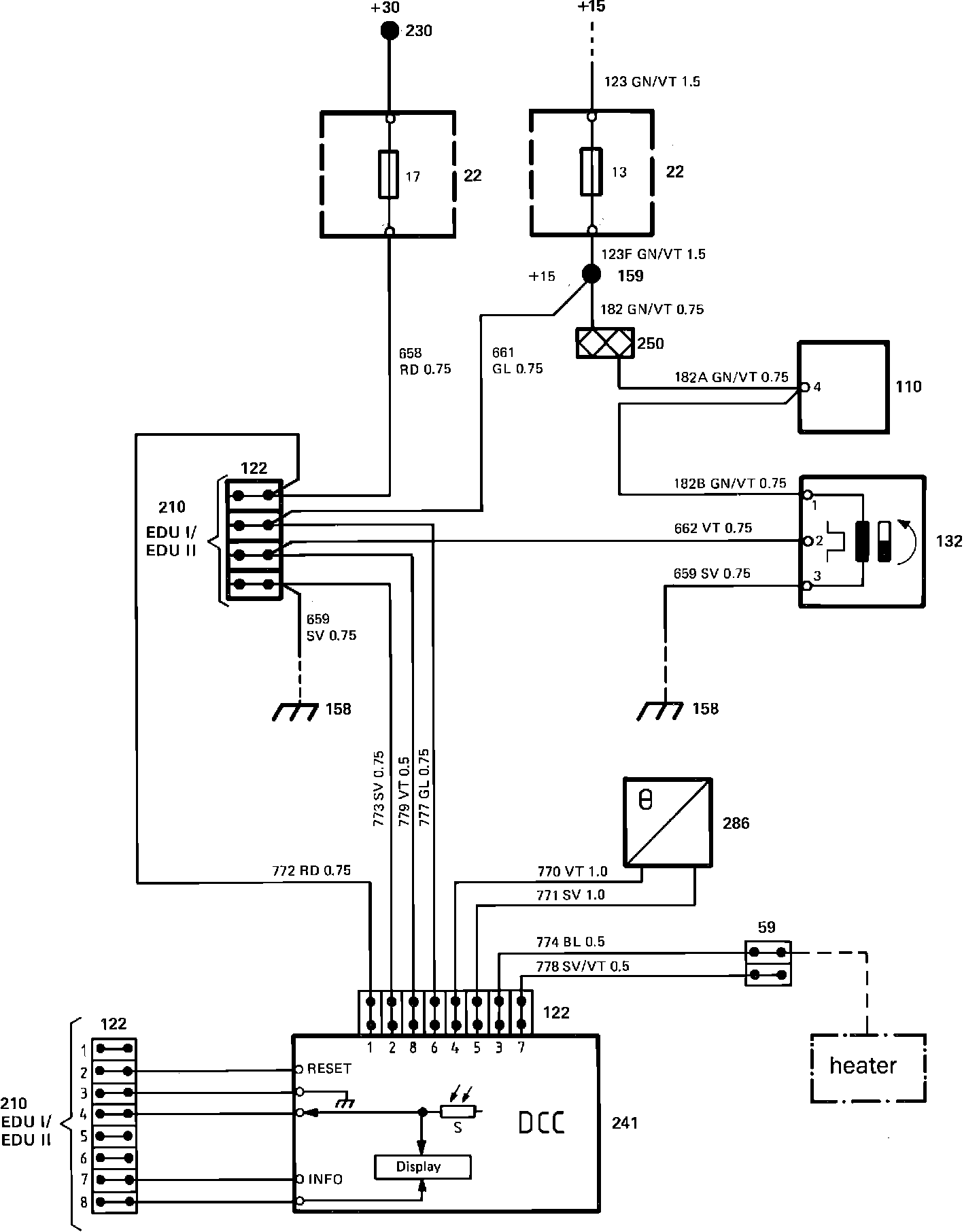

Fig. 16 DCC Trip Computer Wiring Circuit:
