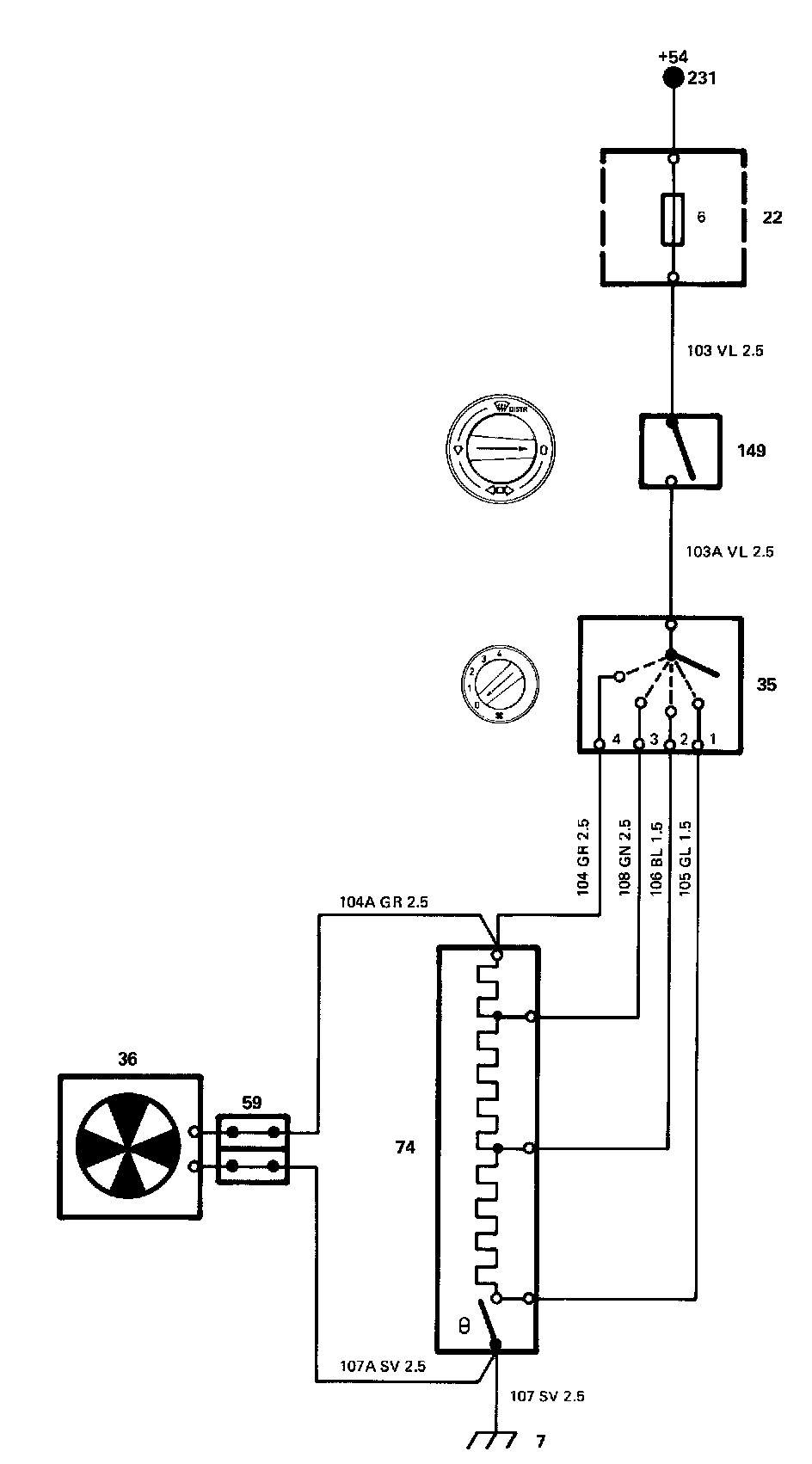

Electrical Diagrams

22 Fuse box in the electrical distribution box behind the glove compartment.

35 Selector switch for the ventilation fan in the centre of the facia.

36 Motor for the ventilation fan in the centre of the bulkhead.

74 Resistor for lower speeds of the ventilation fan in the frame edge of the fan housing, at the cable connection.

149 Main switch for the fan in the centre of the facia.
