Replacement of Front Fog Lights

To Remove, 5-d (CC), CD
To change the bulb, unscrew the two screws securing the frame to the lens and remove the lens.

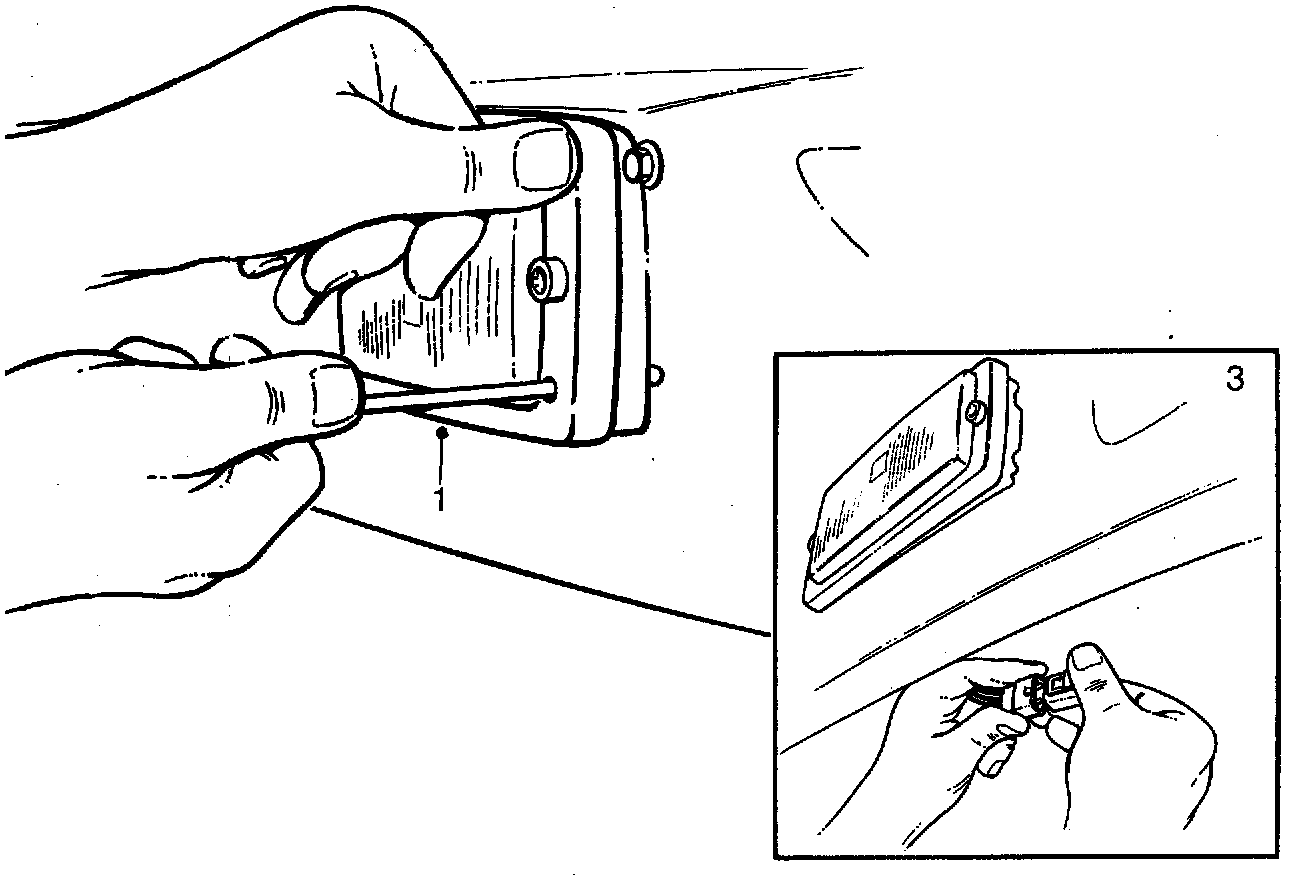

Replacement of fog light
1 Unscrew the two adjusting screws located at the bottom of the frame.
2 Withdraw the fog light from the two retaining clips at the top of the frame.
3 Unplug the connector.

To Install
Install in reverse order.
