Ground Locations

Grounding point, dashboard, 3/G8:

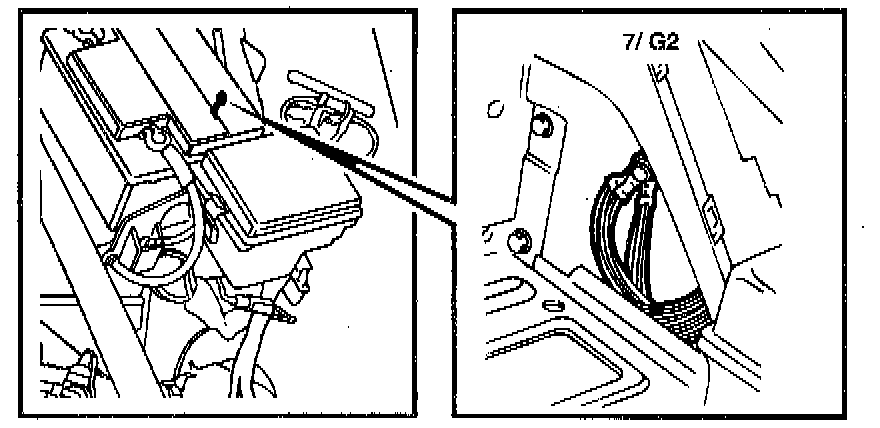

Grounding point, battery tray, 7/G2:

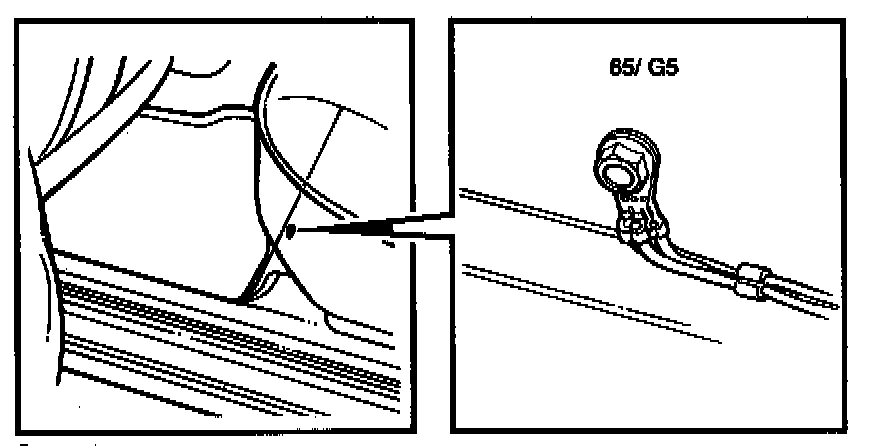

Grounding point, rear seat, 65/G5:

Grounding point, B202 engine, 201/G7:

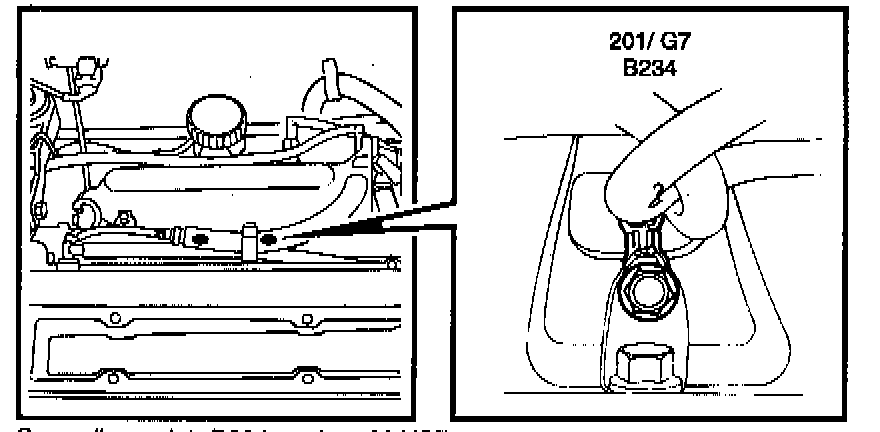

Grounding point, B234 engine, 201/G7:

Grounding point, gearbox, 211/G25:

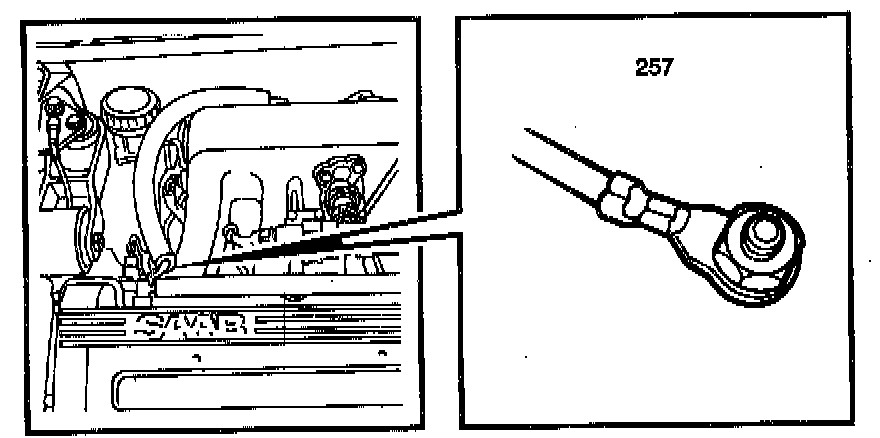

Grounding point, generator bracket, 257:

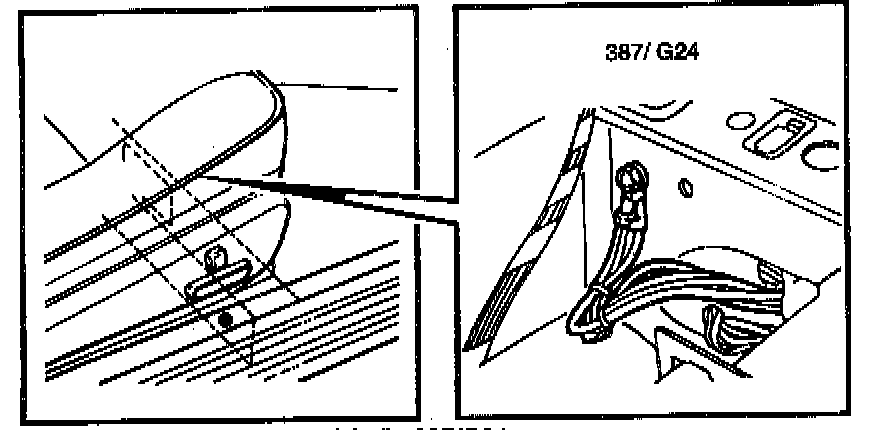

Jordpunkt, hoger framre stolsbalk, 387/G24:
