Home >> Saab >> 1987 >> 900 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Diagrams >> Electrical Diagrams >> Convertible

Convertible

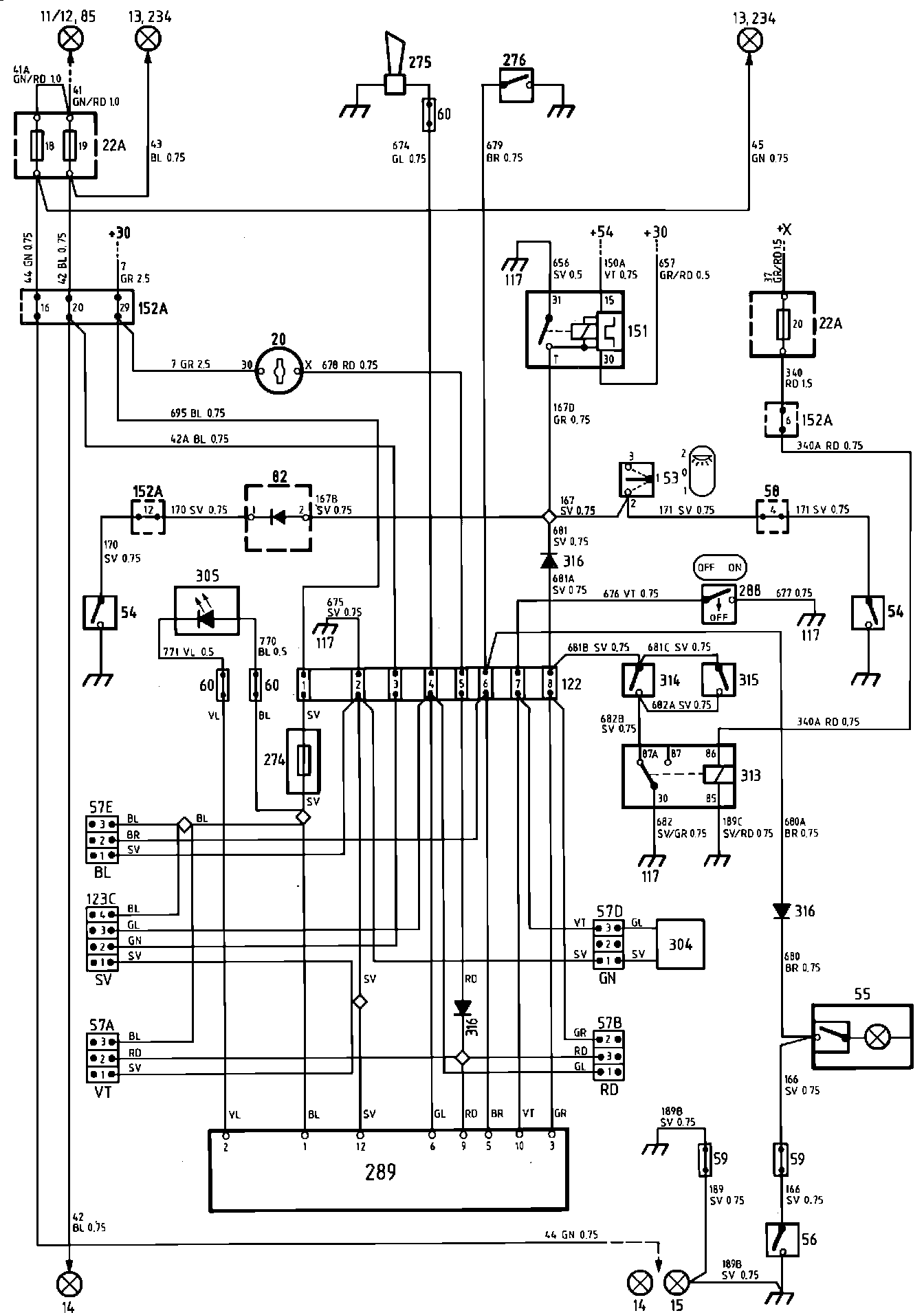

Fig. 8 Burglar Alarm Wiring Circuit -- Convertable:
