Home >> Saab >> 1987 >> 900 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Rear Defogger >> Sedan

Sedan

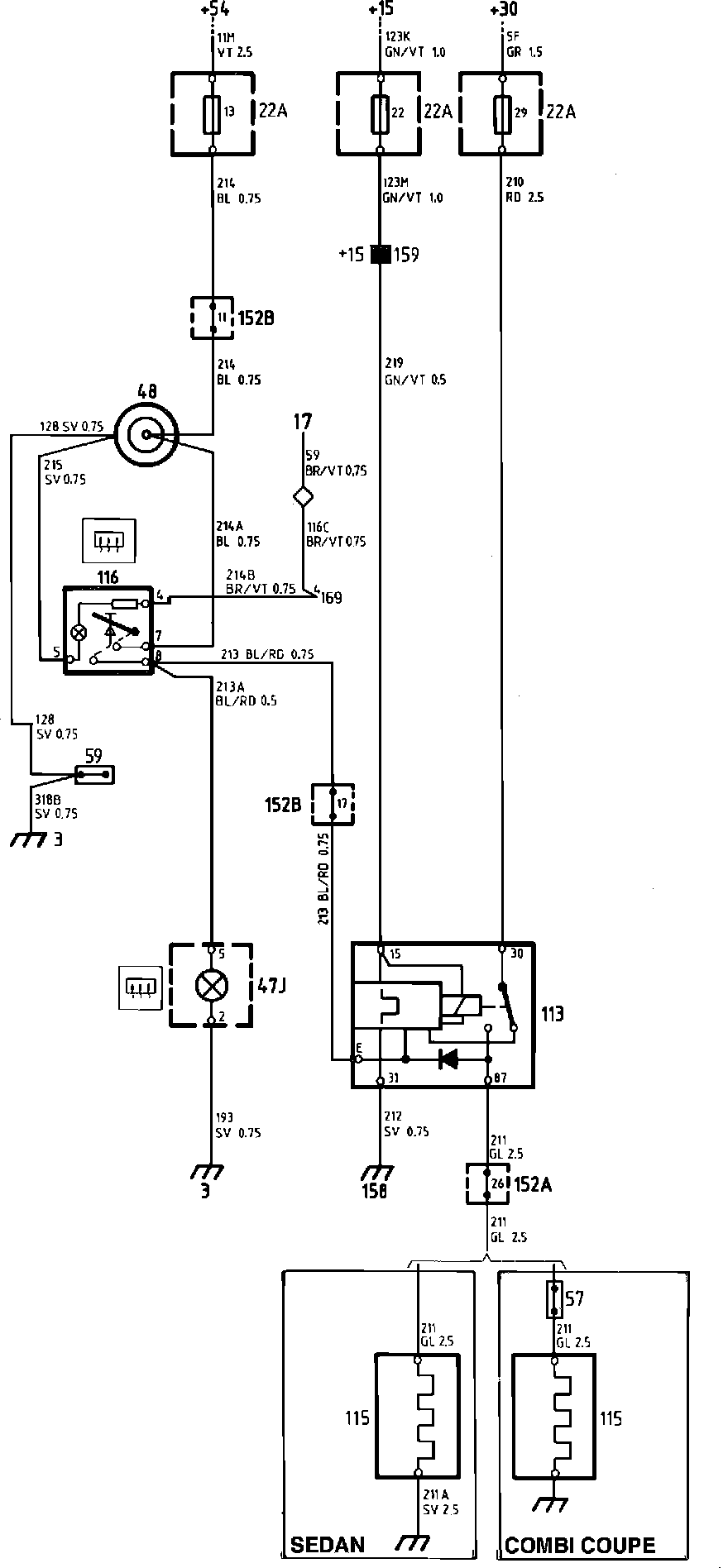

Fig. 39 Rear Window Defogger Wiring Circuit -- Hard Top:
