EZK Ignition System

Locations of components

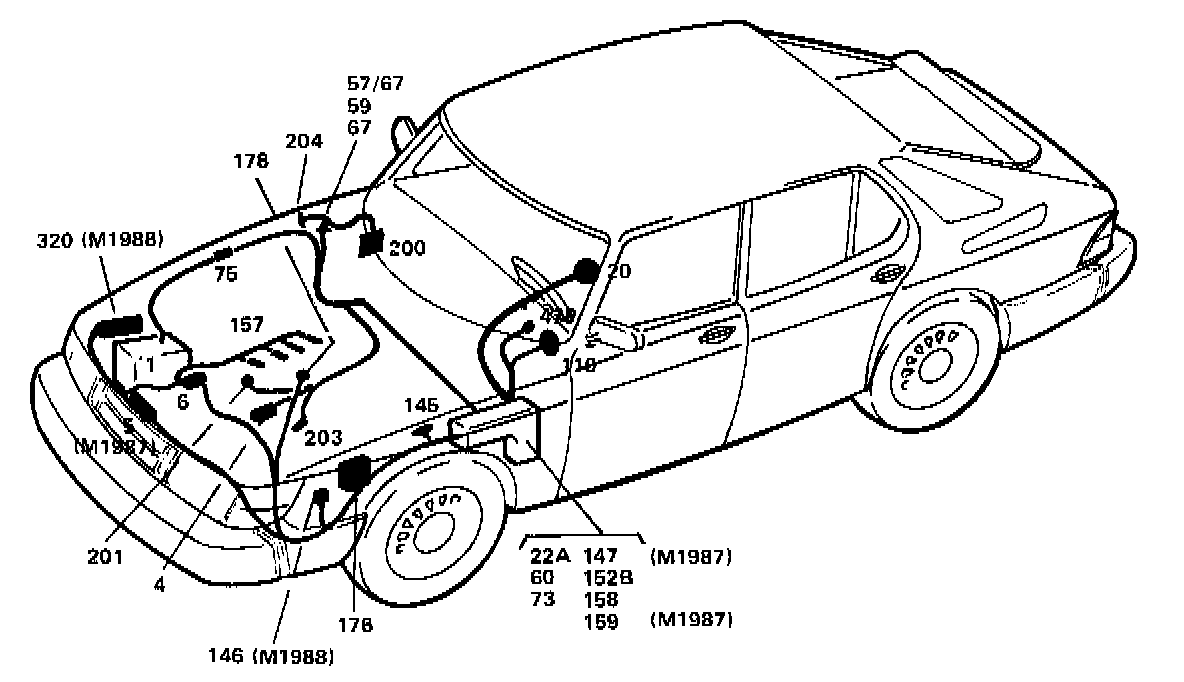

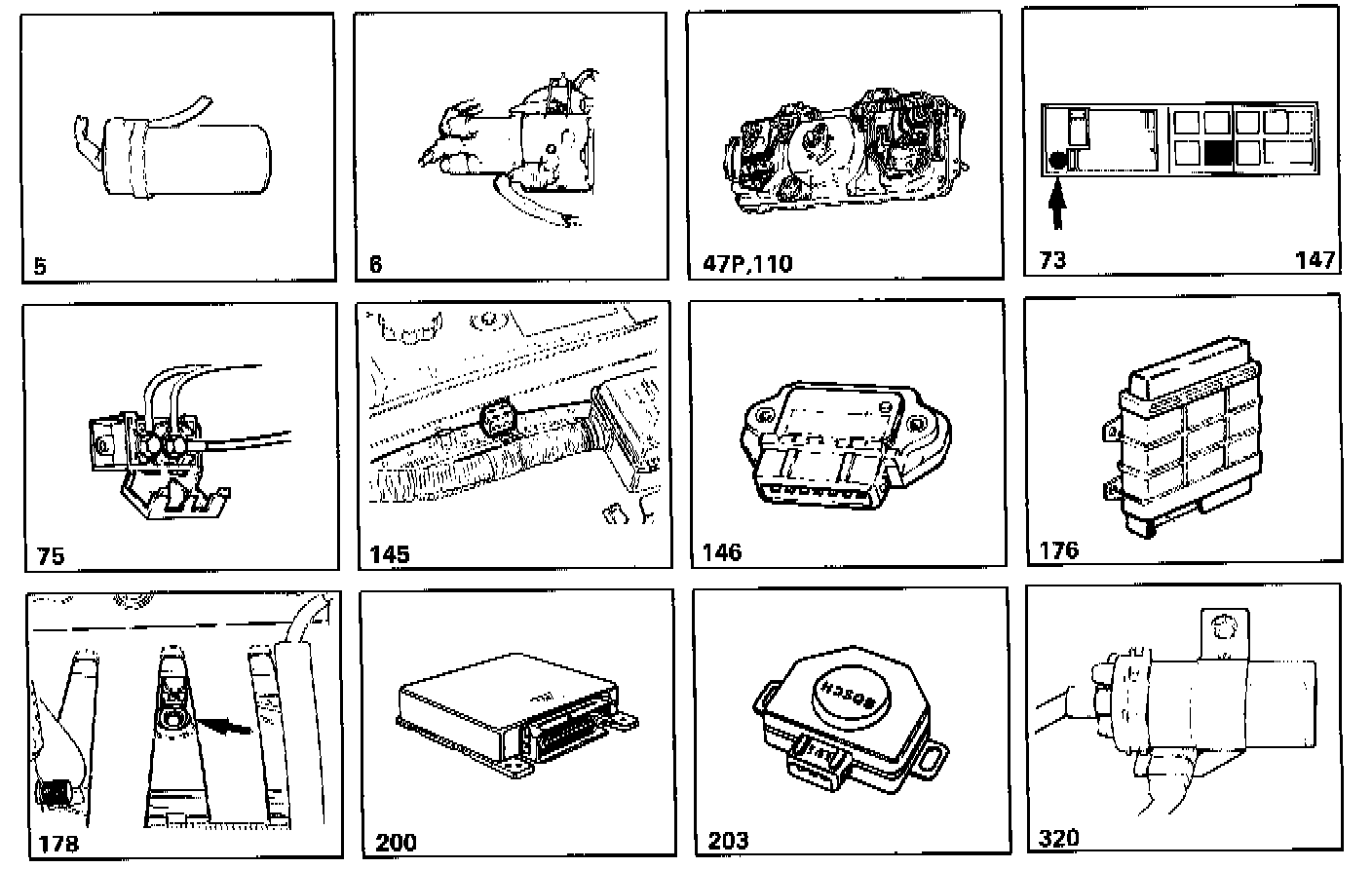

The locations of the components presented below are the same for the EZK ignition system on 1987 and 1988 models.

1 Battery on the right-hand side of the engine compartment
3 Earthing point in the facia
4 Starter motor on the left-hand side of the engine (intake side)
5 Ignition coil on the cross-member above the radiator
6 Ignition distributor at the front of the engine
7 Earthing point, radiator cross-member
20 Ignition switch on the centre console between the front seats
22A Fuse holder in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
47P CHECK ENGINE warning lamp in the combined instrument on the facia
57 3-pole connector (116) in the engine compartment, on the right-hand side, at the air intake
59 2-pole connector in the engine compartment, on the right-hand side, at the air intake
60 Single-pole connector in the electrical distribution box in the engine compartment, on the left-hand wheel housing
67 6-pole connector one in the engine compartment, on the right-hand side, at the air intake (two on the 1988 116 Lambda)
73 Timing service instrument socket in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
75 Distribution block in the engine compartment, on the right-hand side
93 Earthing point, left-hand wheel housing member
110 Tachometer in combined instrument 47 on the facia
145 Test tapping, EZK in the engine compartment, on the left-hand wheel housing, forward of the electrical distribution box
146 Amplifier for the electronic ignition system in the engine compartment, on the left-hand wheel housing
147 Ignition pulse amplifier in the electrical distribution box in the engine compartment, on the left-hand wheel housing
152A 29-pole white connector
152B 29-pole red connector
in the engine compartment, in the electrical distribution box on the left-hand wheel housing. The connectors are accessible from the interior of the car.
157 Spark plug on the engine
158 Negative distribution terminal in the electrical distribution box in the engine compartment, on the left-hand wheel housing
159 Distribution terminal +15 in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
176 Control unit for EZK ignition system in the engine compartment, forward of the left-hand wheel housing
178 Knock sensor for the EZK system on the engine, between the two centre intake ports
200 Control unit for the LH system forward of the right-hand front door, below the facia (behind the trim)
201 Earthing point on the engine at the engine lifting lug
203 Throttle angle transmitter - LH system on the throttle housing
204 Test connector - LH system in the engine compartment, behind the right-hand wheel housing
211 Earthing point on the gearbox
320 Ignition coil with integrated amplifier in the engine compartment on the right hand side, above the battery
