LH System

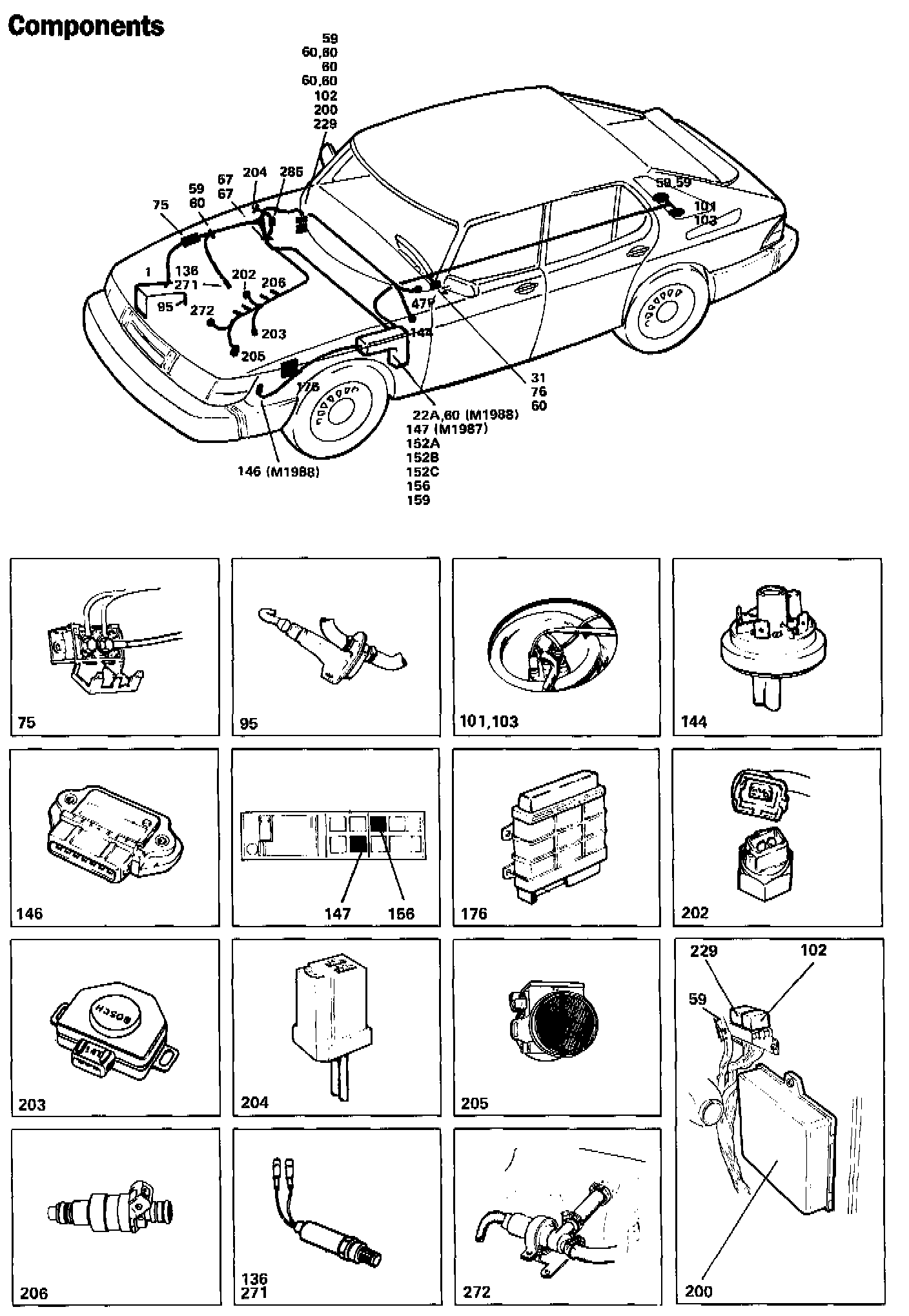

Locations of components





The locations of the components presented below are the same for all variants of LH fuel system 2.2.

1 Battery - on the right-hand side of the engine compartment
7 Earthing point, radiator cross-member
9 Earthing point in the luggage compartment
22A Fuse holder - in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
31 Reversing light switch under the centre console, at the selector lever
47P CHECK ENGINE warning lamp in the combined instrument in the instrument panel
57 3-pole connector (I16, I16 Lambda) in the engine compartment, on the righthand side, at the air intake
59 2-pole connector
two at the fuel pump, under the luggage compartment floor
at the control unit, forward of the right-hand front door, below the facia (under the trim)
one (for the Lambda sensor) in the engine compartment, on the right-hand wheel housing, next to the distribution block for the positive supply from the battery
60 Single-pole connector
one (for the Lambda sensor) in the engine compartment, on the right-hand wheel housing, next to the distribution block for the positive supply from the battery
one (AIC test connector) in the engine compartment, behind the right-hand wheel housing
one, for connecting the main relay and the fuel pump relay (I16,I16 Lambda)
one in the electrical distribution box
two for boost pressure switch 144 (T16, T16 Lambda) and two for the automatic transmission, at the control unit, forward of the right-hand front door, below the facia (behind the trim)
one under the centre console, at the selector lever (auto.)
67 6-pole connector - in the engine compartment, on the righthand side at the air intake
75 Distribution block - in the engine compartment, on the righthand side
76 Switch for raising the idling speed, auto. transm. under the centre console, at the selector lever
95 Auxiliary air valve (I16, T16) at the extreme front of the engine intake manifold
101 Fuel feed pump (US, CA, JP, AU, ME, FE) in the fuel tank, under the luggage compartment floor
102 Fuel pump relay at the control unit, forward ofthe right-hand front door, below the facia (behind the trim)
103 Fuel pump in the fuel tank, under the luggage compartment floor
136 Lambda sensor (116, T16 Lambda) on the exhaust manifold, beside the turbocharger
144 Boost pressure switch (T16, T16 Lambda) under the facia, to the left of the steering column (behind the knee shield)
146 Amplifier for the electronic ignition system (T16, T16 Lambda) in the engine compartment, forward of the left-hand wheel housing
147 Ignition pulse amplifier in the electrical distribution box in the engine compartment, on the left-hand wheel housing
152A 29-pole white connector
152B 29-pole red connector
152C 29-pole black connector
in the electrical distribution box in the engine compartment, on the left-hand wheel housing.
The connectors are accessible from the interior of the car
156 Relay for the AC compressor (I16 Lambda, T16 Lambda) in the electrical distribution box in the engine compartment, on the left-hand wheel housing
159 Distribution terminal +15 in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
176 Control unit for EZK ignition system (I16,I16 Lambda) in the engine compartment, forward of the left-hand wheel housing
200 Control unit for the LH system forward of the right-hand front door, below the facia (behind the trim)
201 Engine earthing point at the engine lifting lug
202 Engine temperature transmitter on the intake manifold flange, between cylinders 2 and 3
203 Throttle angle transmitter on the engine throttle housing
204 Test connector in the engine compartment, behind the right-hand wheel housing
205 Air mass meter on the air hose at the air cleaner
206 Fuel injection valves on the engine intake manifold
211 Earthing point on the gearbox
229 Main relay for the fuel injection system forward of the right-hand front door, below the facia (behind the trim)
271 Preheater (116 Lambda, T16 Lambda) in the Lambda sensor, on the exhaust manifold
272 Idling speed adjustment motor (116 Lambda, T16 Lambda) at the extreme front, on the left-hand side of the cylinder head
285 Fuse for Lambda sensor (116 Lambda, T16 Lambda) in the engine compartment, on the righthand side, at the air intake
