Courtesy Lights

Courtesy Light Components:

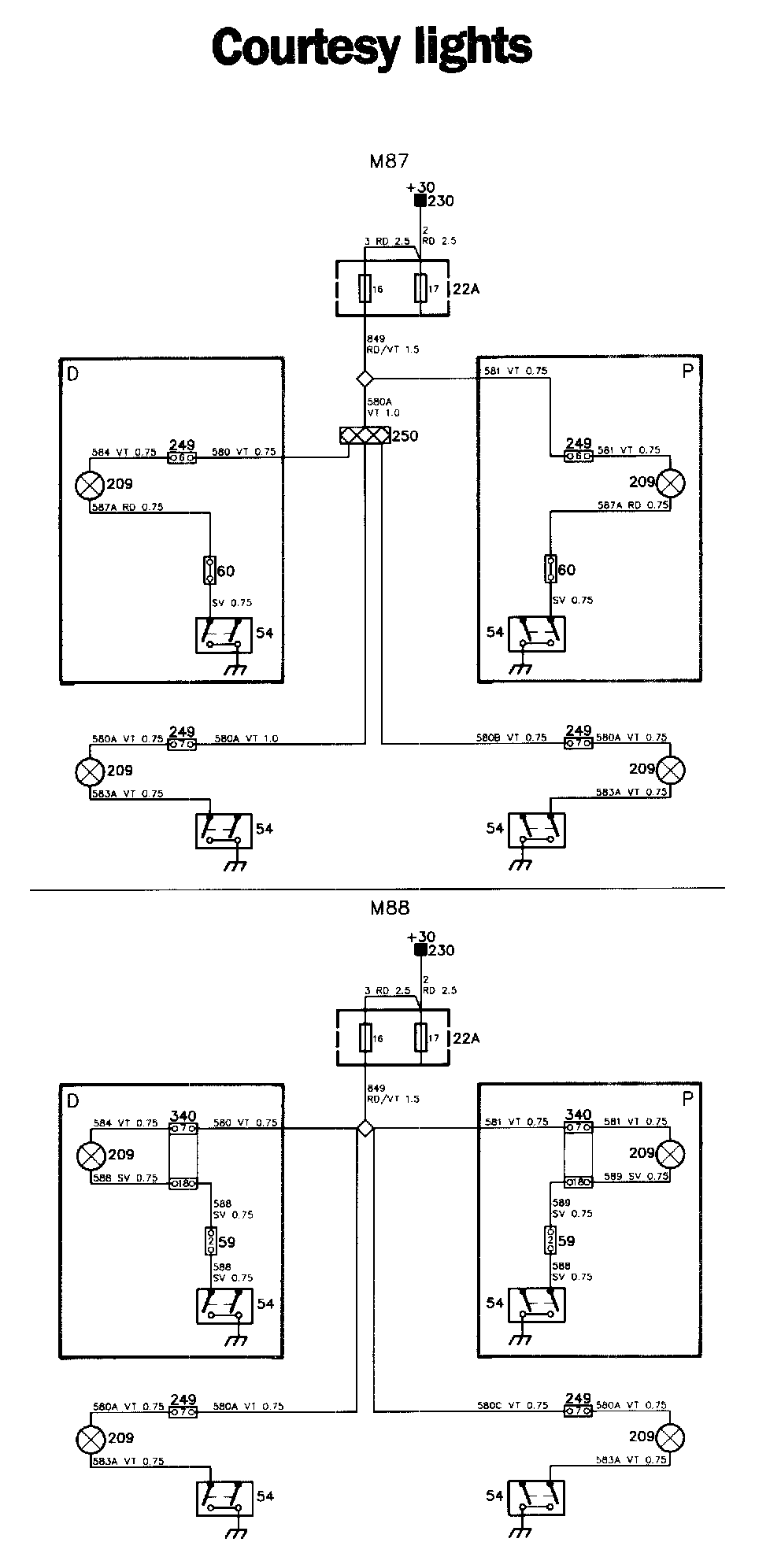

Courtesy Light Diagrams:

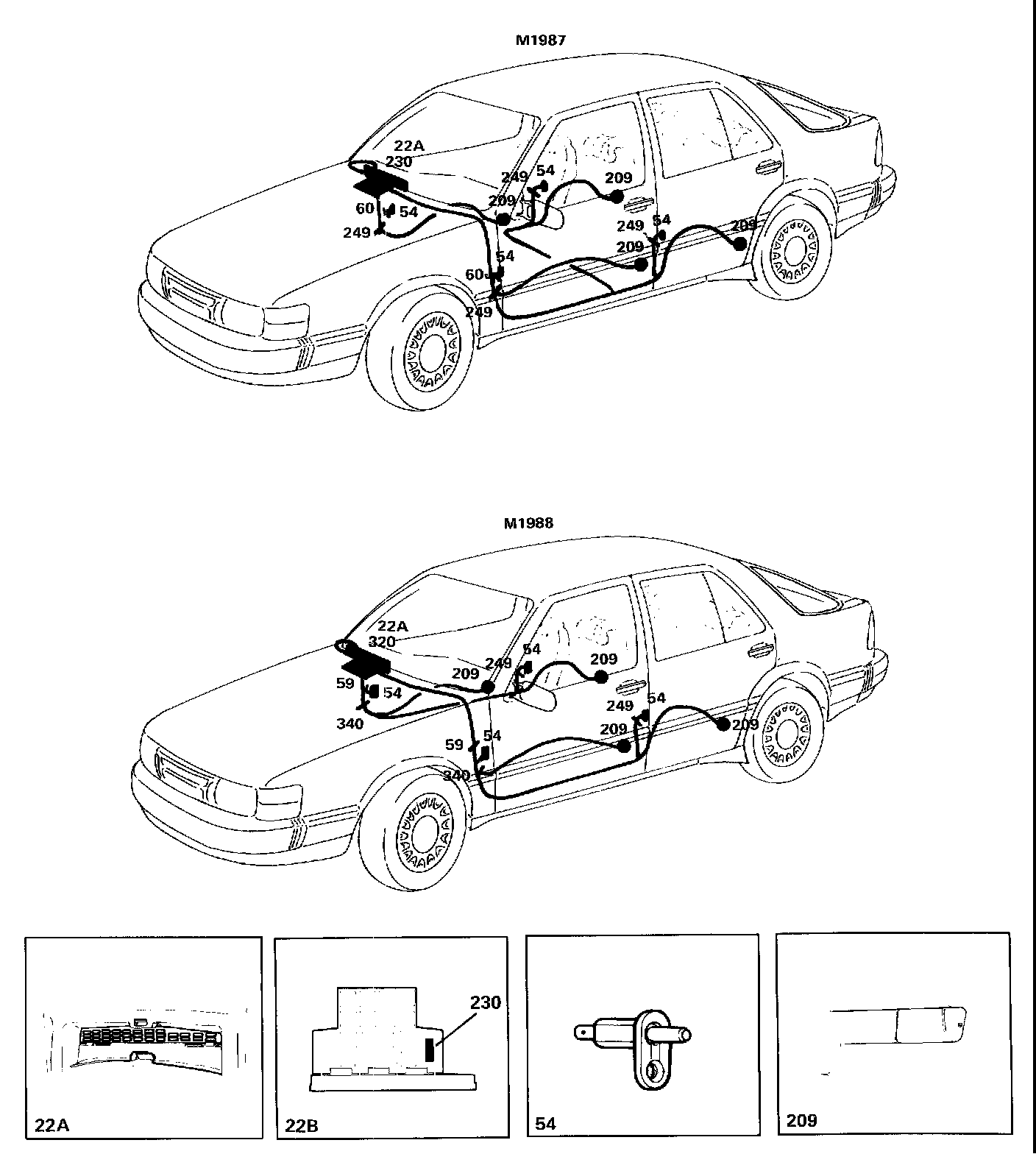

Locations of components

22A Fuse board
Behind the access panel in the glove compartment

54 Door switch for the interior lighting
One in each door pillar

59 Two-pole connector
One in each A-pillar (1988)

60 Single-pole connector
One in each A-pillar (1987)

209 Courtesy light
One in each door

230 Distribution terminal +30
In the electrical distribution box behind the glove compartment

249 Seven-pole connector (1987)
One inside the cable entry to each door pillar

340 22-pole connector (1988)
One inside the cable entry to each A-pillar

Operation
The supply to courtesy lights 209 and door switch 54 in each of the door pillars is taken from fuse 16.

When one of the doors is opened, the corresponding door switch will close and the lamp in the door will light up. The door switch is of two-pole design and, in addition to the courtesy lights, also switches on the interior lighting.

Fault-tracing hints
1. Check fuse 16 and check that the supply to it is live.
2. Check each lamp and check that the supply to it is live.
3. Check that each door switch operates satisfactorily.
4. Check the wiring and the earth connections.
