Seat Belt Reminder Lamp

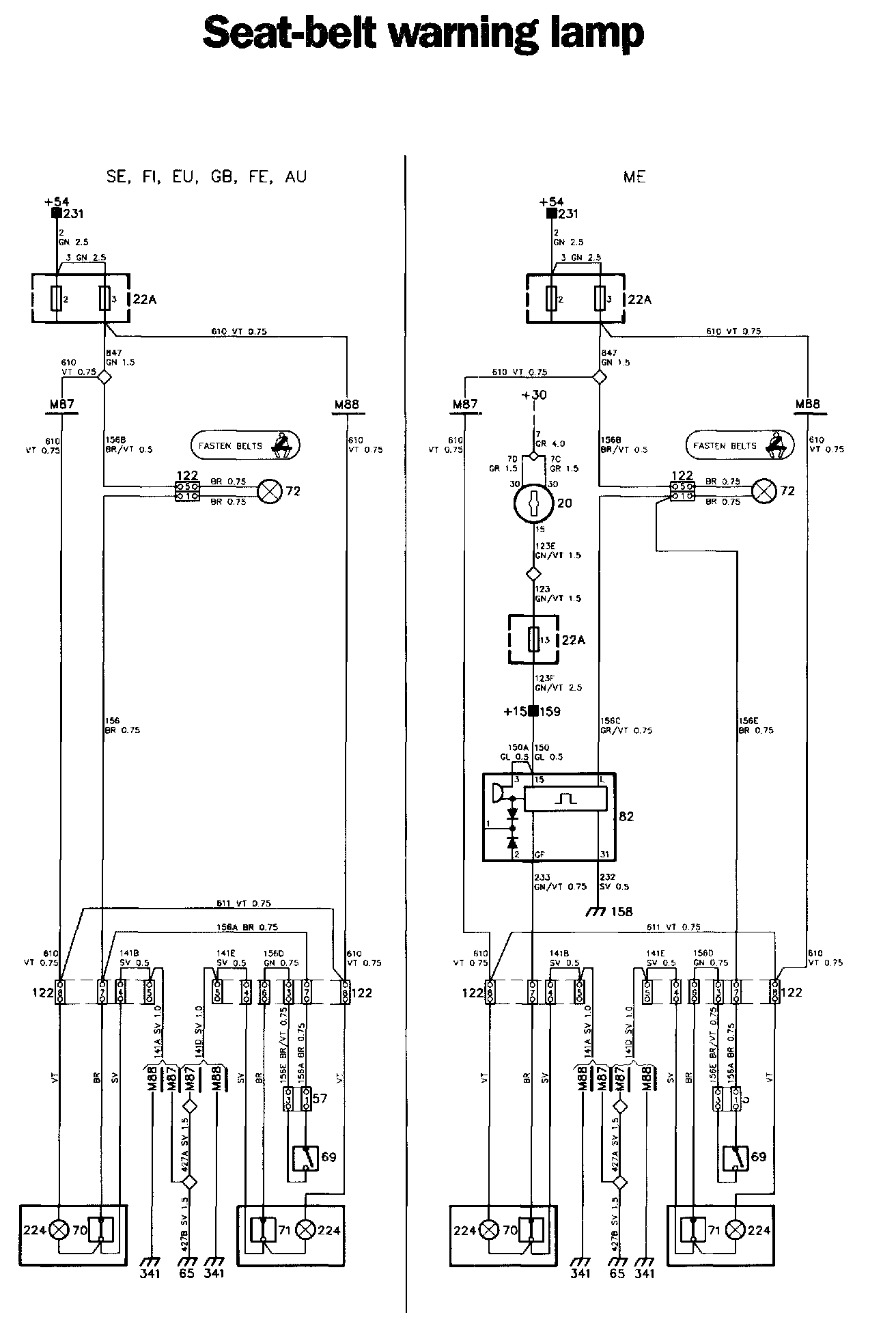

Seat-belt Warning Lamp Diagrams:

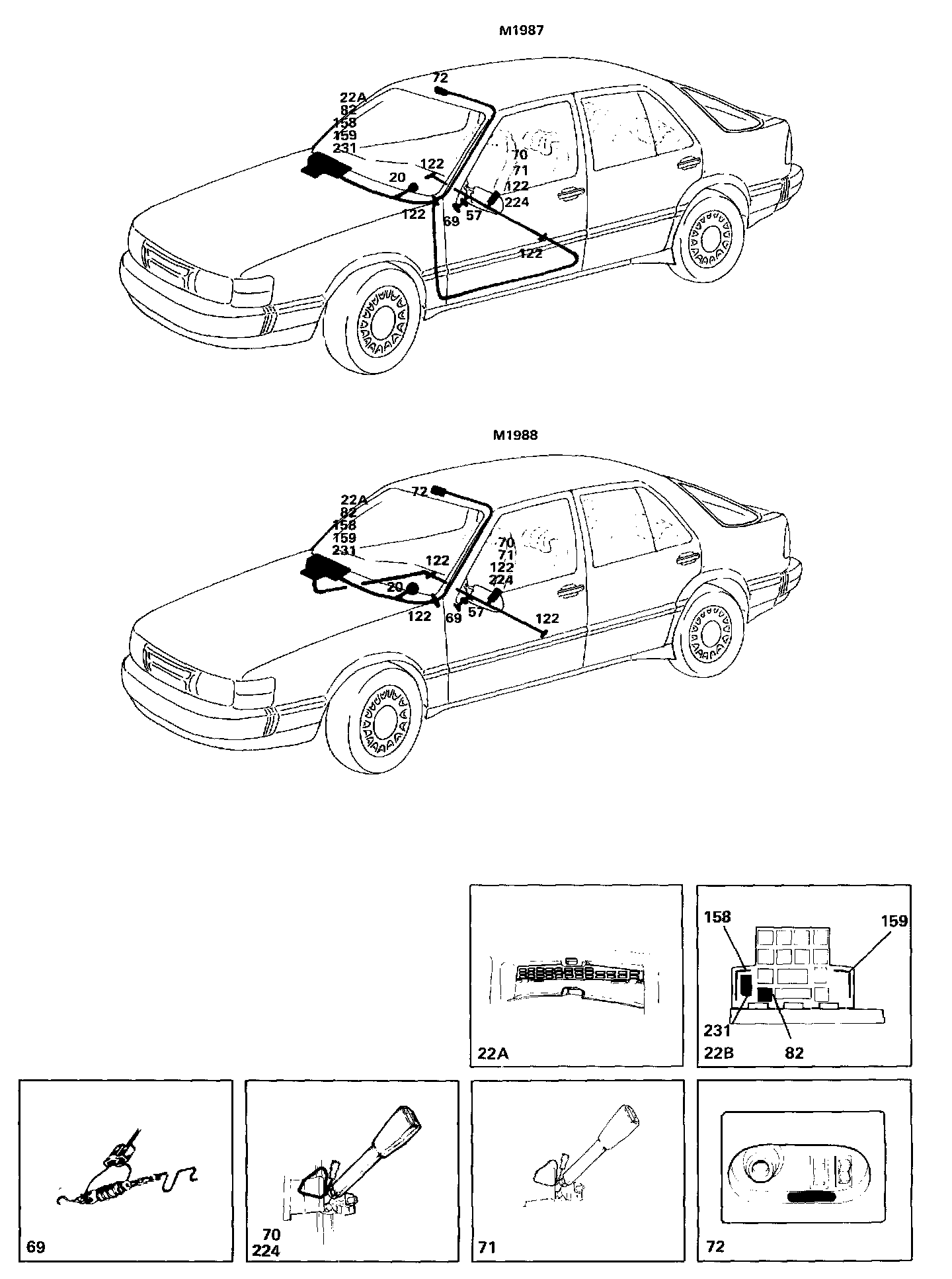

Seat-belt Warning Lamp Components:

Locations of components

20 Ignition switch
On the right-hand side of the steering Column

22A Fuse board
Behind the access panel in the glove compartment

57 Three-pole connector
Under the co-driver's seat

65 Earthing point
Under the back seat

69 Seat switch for the co-driver's seat-belt warning lamp
Under the co-driver's seat

70 Seat-belt switch for the driver
Between the front seats

71 Seat-belt switch for the co-driver
Between the front seats

72 Seat-belt warning lamp
In the roof console, above the inner rear view mirror

82 Seat-belt warning relay (ME)
In the electrical distribution box behind the glove compartment

122 Eight-pole connector
One under the co-driver's seat
One under the driver's seat
One under the facia, to the extreme left (behind the knee shield)

158 Negative distribution terminal
In the electrical distribution box behind the glove compartment

159 Distribution terminal +15
In the electrical distribution box behind the glove compartment

224 Seat-belt lock illumination
In the seat-belt locks, between the front seats

231 Distribution terminal +54
In the electrical distribution box behind the glove compartment

341 Earthing point
On the left-hand front seat member

Operation
When the ignition switch is in the drive position, the supply is taken from fuse 3, through seat-belt warning lamp 72 to the driver's seat-belt warning switch 70. The switch connects the warning lamp to earth, and the warning lamp will thus light up. When the seat-belt buckle is inserted into the lock, the switch will open the circuit and the lamp will be extinguished.

Seat switch 69 is connected in series to seat-belt switch 71 on the co-driver's side, and the seat switch will close when a load is applied to the seat. The warning lamp will thus only light up if a person is seated in the co-driver's seat and the seat belt is not fastened.

The seat-belt locks are illuminated by lamps 224 which are supplied directly from fuse 3.

Fault-tracing hints
The seat-belt warning lamp is operative when the ignition switch is in the drive position.

1. Check fuse 3 and check that the supply to it is live.
2. Check warning lamp 72.
3. Check seat-belt switches 70 and 71 and check that seat switch 69 operates satisfactorily.
4. Check the wiring, connectors and earthing.
