Trailer Connector

Trailer Diagrams:




Trailer Components:

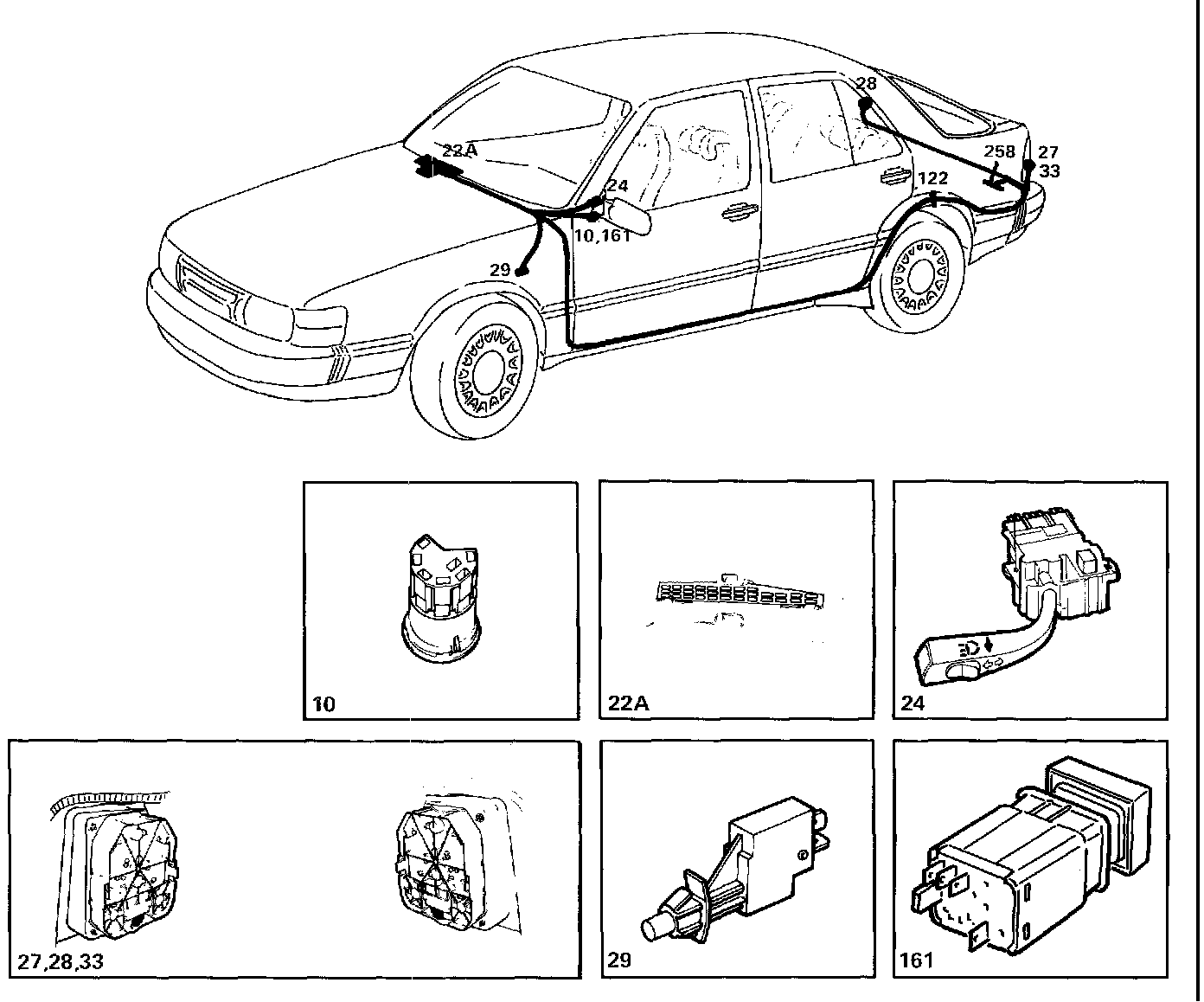

Locations of components

10 Light switch
On the left-hand side of the facia

14 Rear lights
In the rear light clusters

15 Number plate illumination
On the luggage compartment lid

22A Fuse board
Behind the access panel in the glove compartment

24 Direction indicator stalk switch
On the left-hand side of the steering column

27 Direction indicator lamp, left-hand side
In the left-hand rear light cluster

28 Direction indicator lamp, right-hand side
In the right-hand rear light cluster

29 Brake light switch
At the brake pedal

30 Brake lamps
In the rear light clusters

33 Rear fog lights
In the rear light clusters

122 Eight-pole connector
Above the left-hand rear wheel housing

161 Switch for the rear fog lights
On the left-hand side of the facia

258 Eight-pole connector for trailer lighting
At the left-hand rear light cluster

Operation
The electrical system is prepared for fitting a tow bar. An eight-pole connector (258) is provided for this purpose in the luggage compartment, to the right of the left-hand rear lamp cluster.

1987 model
The following lamps are supplied across connector 258:

Pin 1 Brake lights 30 (from brake light switch 29)

Pin 2 Rear lights 14 and number plate illumination 15 (from light switch 10 and fuse 29)

Pin 3 Direction indicator lamps 28, right-hand side (from direction indicator stalk switch 24)

Pin 4 Direction indicator lamps 27, left-hand side (from direction indicator stalk switch 24)

Pins 5 Rear fog lights 33 (from switch 161 for the and 8 rear fog lights)

The earth cable from the electrical connection of the tow bar must be connected by means of a separate connector to rear earthing point 9.

1988 model
The following lamps are supplied across connector 258:

Pin 1 Brake lights 30 (from brake light switch 29)

Pin 2 Rear light 14 (right-hand side) and number plate illumination 15 (from light switch 10 and fuse 29)

Pin 3 Direction indicator lamps 28, right-hand side (from direction indicator stalk switch 24)

Pin 4 Direction indicator lamps 27, left-hand side (from direction indicator stalk switch 24)

Pins 5 Rear fog lights 33 (from switch 161 for the and 8 rear fog lights)

Pin 6 Rear light 14 (left-hand side), from light switch 10 and fuse 30

The earth cable from the electrical connection of the tow bar must be connected by means of a separate connector to rear earthing point 9.

Fault-tracing hints
1. Check the electrical connections at the connector for the trailer (risk of oxidation)
2. Check that the supply to each terminal in connector 258 is live.
3. Check the fuses and wiring.
