Rear Fog Light

Rear Fog Light Components:

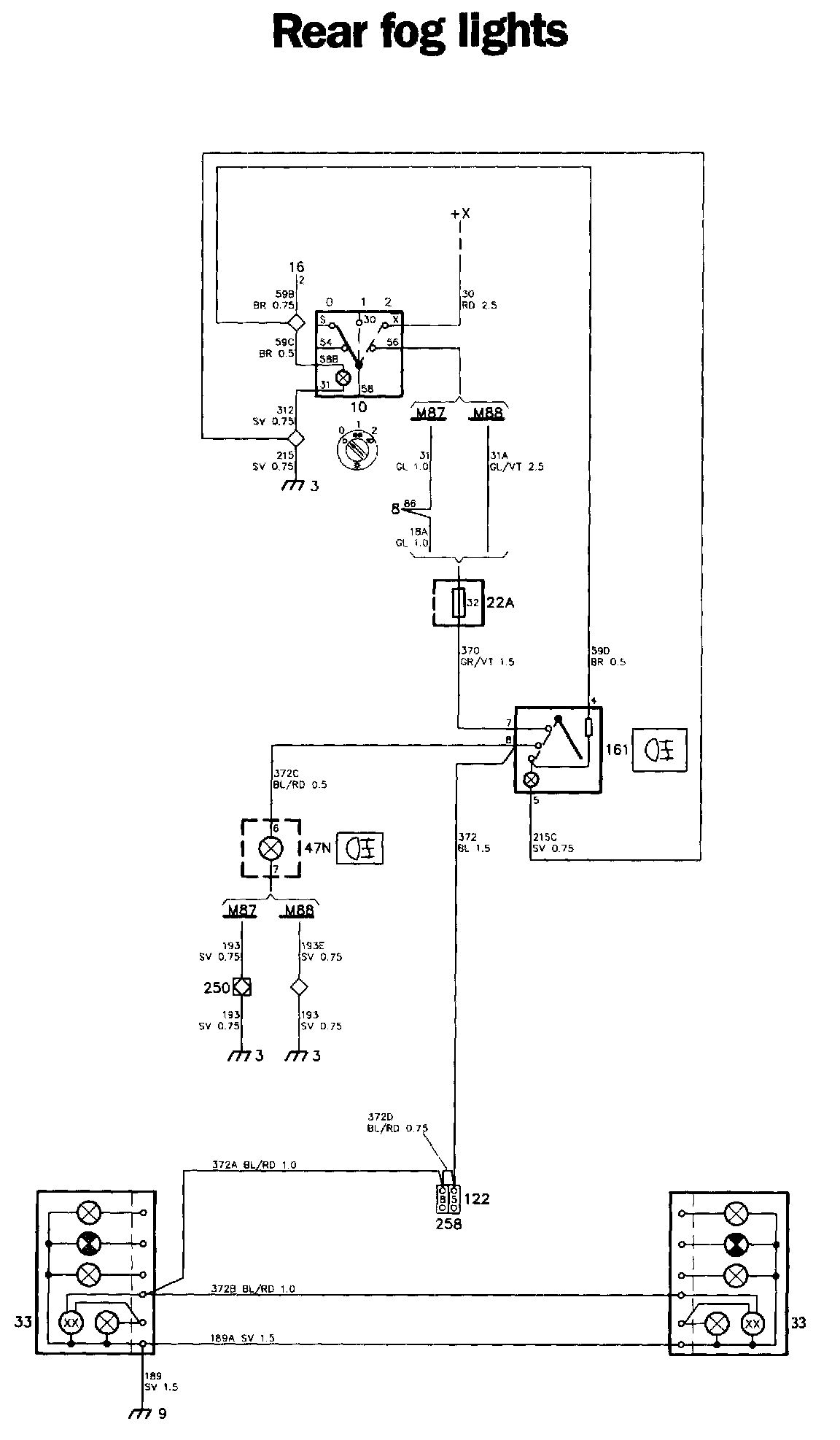

Rear Fog Light Diagrams:

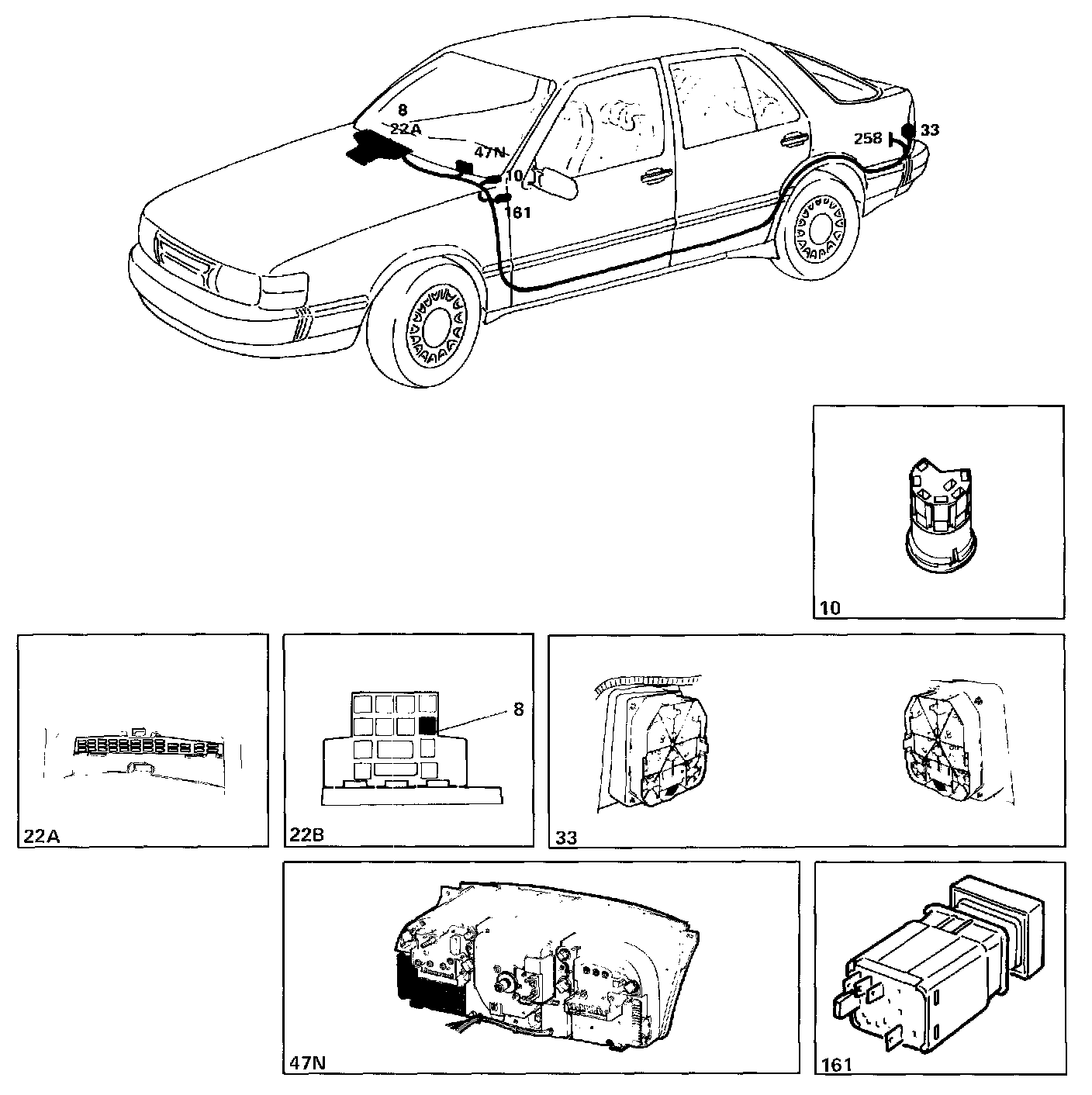

Locations of components

3 Earthing point, facia
At the left-hand front speaker socket

8 Lighting relay
In the electrical distribution box behind the glove compartment (1987)

9 Earthing point
In the luggage compartment, at the left hand light cluster

10 Light switch
On the left-hand side of the facia

16 Instrument lighting rheostat
On the left-hand side of the facia

22A Fuse board
Behind the access panel in the glove compartment

33 Rear fog lights
In the rear light clusters

47N Warning lamp for the rear fog lights
In the combined instrument, on the board for the indicating and warning lamps

161 Switch for the rear fog lights
On the left-hand side of the facia

258 Eight-pole connector for the trailer lighting
In the luggage compartment

Operation
Rear fog lights are fitted only to cars for the SE, FI, EU and GB markets. The rear fog lights cannot be switched on unless the ignition switch is in the parked or drive position.

The supply is taken from the ignition switch to light switch 10. This must be in position 2 before the rear fog lights can be switched on (headlamps on full or dipped beam). The supply is then run to rear fog light switch 161 across fuse 32.

When the switch for the rear fog lights is depressed, both rear fog lights 33 and warning lamp 47N in the combined instrument will light up.

When the switch is depressed, the bulb built into the button will be energized and will light up with full intensity.

The supply to rear fog lights of a trailer is connected across connector 258.

Fault-tracing hints
1. Check fuse 32 and check that the supply to it is live.
2. Check the bulbs and check that the supply to them is live. Check the earthing at each bulb.
3. Check the wiring.
