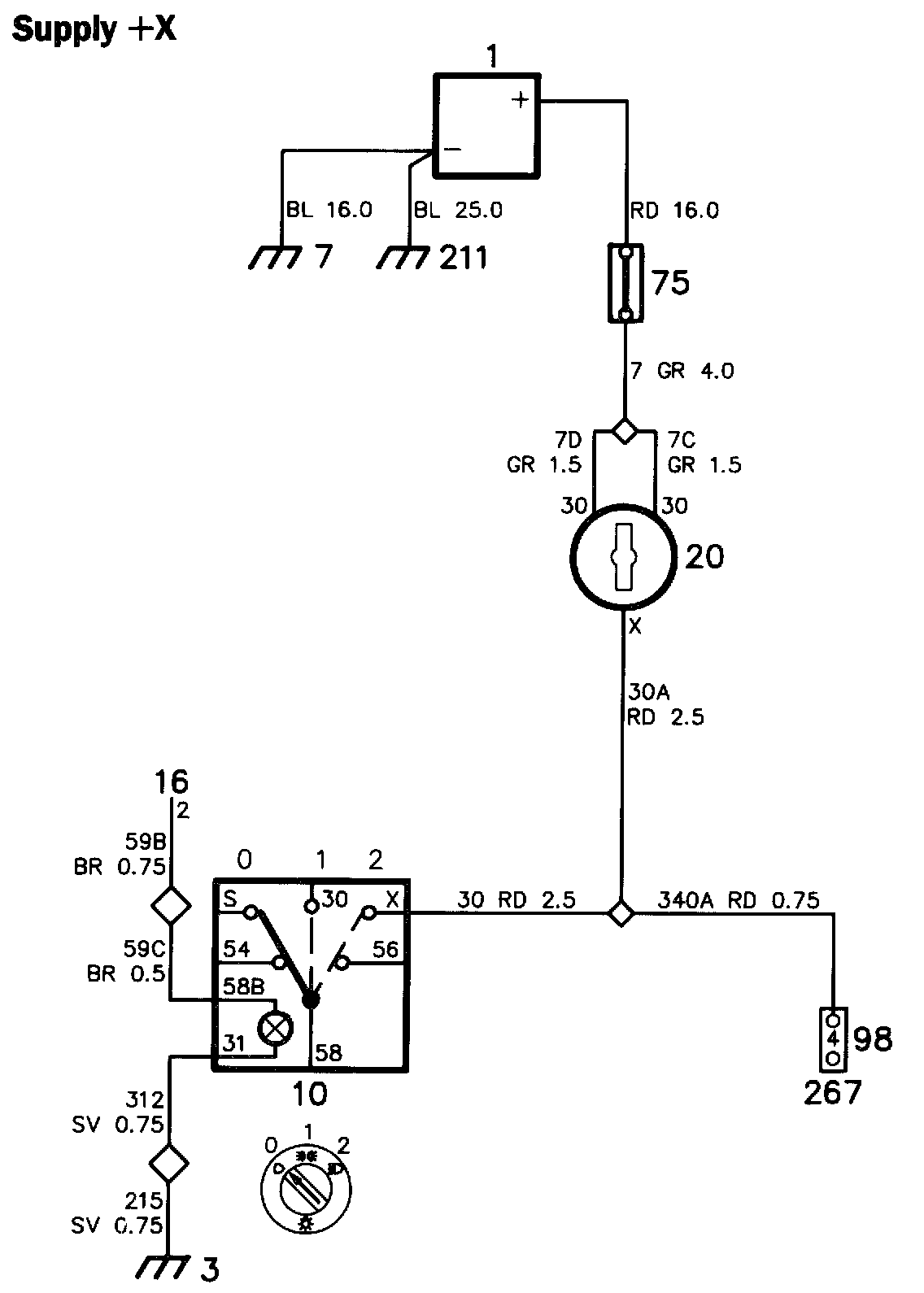

Supply +X

Supply +X:

Operation
The positive supply from battery 1 is taken to ignition switch 20. When the ignition switch is in the parked, drive or start position, power will be supplied from terminal X of the ignition switch to the following components:
- Light switch 10
- Radio connection 267 (ten-pole connector).

Fault-tracing hints
1. Check the battery voltage.
2. Check the terminals of distribution block 75.
3. Check the relevant wiring.
