Home >> Saab >> 1988 >> 900 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk Lamp >> Convertible

Convertible

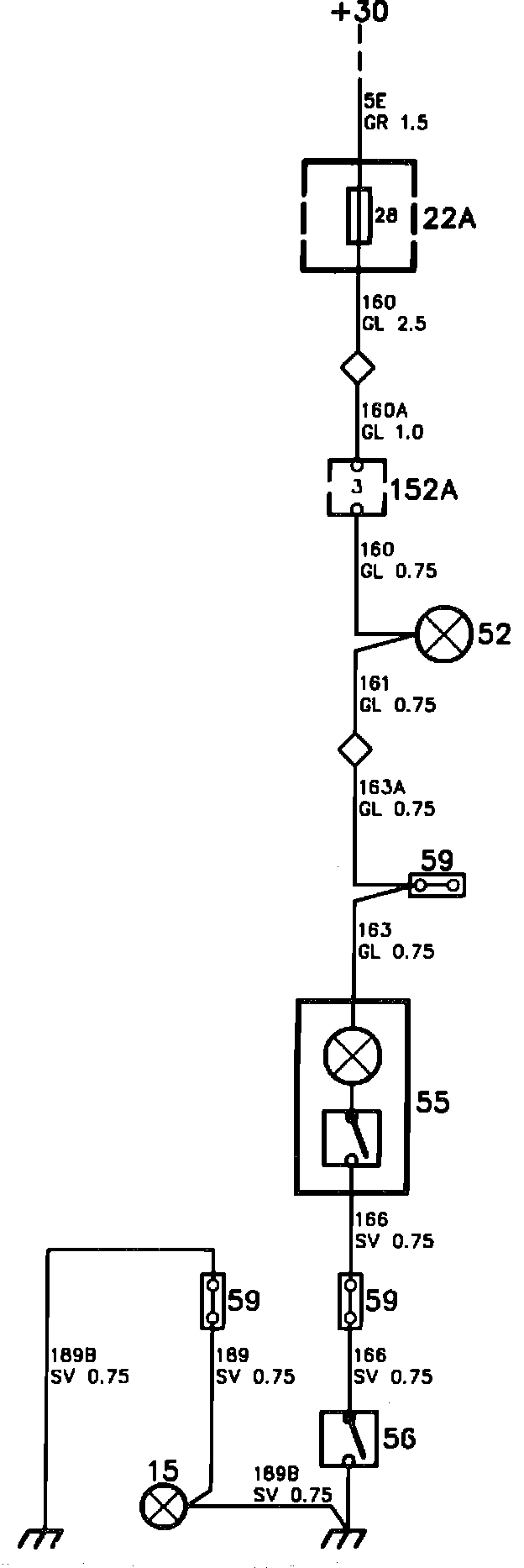

Fig. 34 Luggage Compartment Wiring Circuit -- Convertible:
