LH System

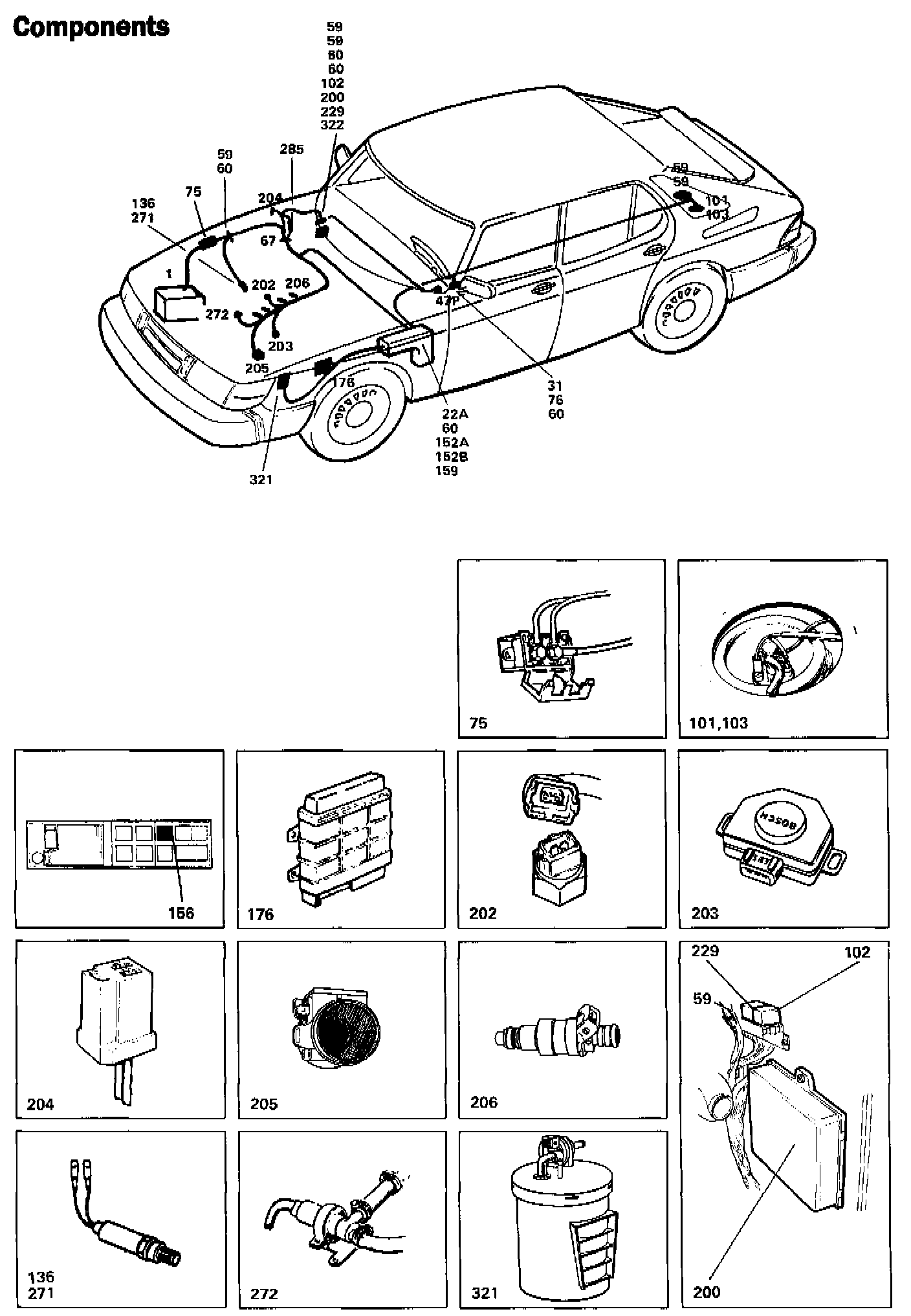

Locations of components





1 Battery on the right-hand side of the engine compartment
7 Earthing point, radiator cross-member
9 Earthing point in the luggage compartment
22A Fuse holder in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
31 Reversing light switch under the centre console, at the selector lever
47P CHECK ENGINE warning lamp in the combined instrument in the instrument panel
59 2-pole connector
two at the fuel pump, under the luggage compartment floor
one at the control unit, forward of the right-hand front door, below the facia (under the trim)
one (for the Lambda sensor) in the engine compartment, on the right-hand wheel housing, next to the distribution block for the positive supply from the battery
60 Single-pole connector
one (for the Lambda sensor) in the engine compartment, on the right-hand wheel housing, next to the distribution block for the positive supply from the battery
one, for connecting the main relay and the fuel pump relay
and one for the automatic transmission, at the control unit, forward of the right-hand front door, below the facia (behind the trim)
one under the centre console, at the selector lever (auto.)
one in the electrical distribution box
67 6-pole connector two in the engine compartment, on the right-hand side at the air intake
75 Distribution block in the engine compartment, on the right-hand side
76 Switch for raising the idling speed, auto.transm. under the centre console, at the selector lever
101 Fuel feed pump in the fuel tank, under the luggage compartment floor
102 Fuel pump relay at the control unit, forward ofthe right-hand front door, below the facia (behind the trim)
103 Fuel pump in the fuel tank, under the luggage compartment floor
136 Lambda sensor on the exhaust manifold
152A 29-pole white connector
152B 29-pole red connector
in the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connectors are accessible from the interior of the car
156 Relay for the AC compressor in the electrical distribution box in the engine compartment, on the left-hand wheel housing
159 Distribution terminal +15 in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
176 Control unit for EZK ignition system in the engine compartment, forward of the left-hand wheel housing
200 Control unit for the LH system forward of the right-hand front door, below the facia (behind the trim)
201 Engine earthing point at the engine lifting lug
202 Engine temperature transmitter on the intake manifold flange, between cylinders 2 and 3
203 Throttle angle transmitter on the engine throttle housing
204 Test connector in the engine compartment, behind the right-hand wheel housing
205 Air mass meter on the air hose at the air cleaner
206 Fuel injection valves on the engine intake manifold
211 Earthing point on the gearbox
229 Main relay for the fuel injection system forward of the right-hand front door, below the facia (behind the trim)
271 Preheater in the Lambda sensor, on the exhaust manifold
272 Idling speed adjustment motor at the extreme front, on the left-hand side of the cylinder head
285 Fuse for Lambda sensor in the engine compartment, on the right- hand side, at the air intake
321 Valve for charcoal cannister in the engine compartment, forward of the left-hand wheel housing, between the wheel housing member and the outer wing
322 Connector, Auto/Man, LH 2.4 at the control unit, forward of the right-hand front door, below the facia (under the trim)
