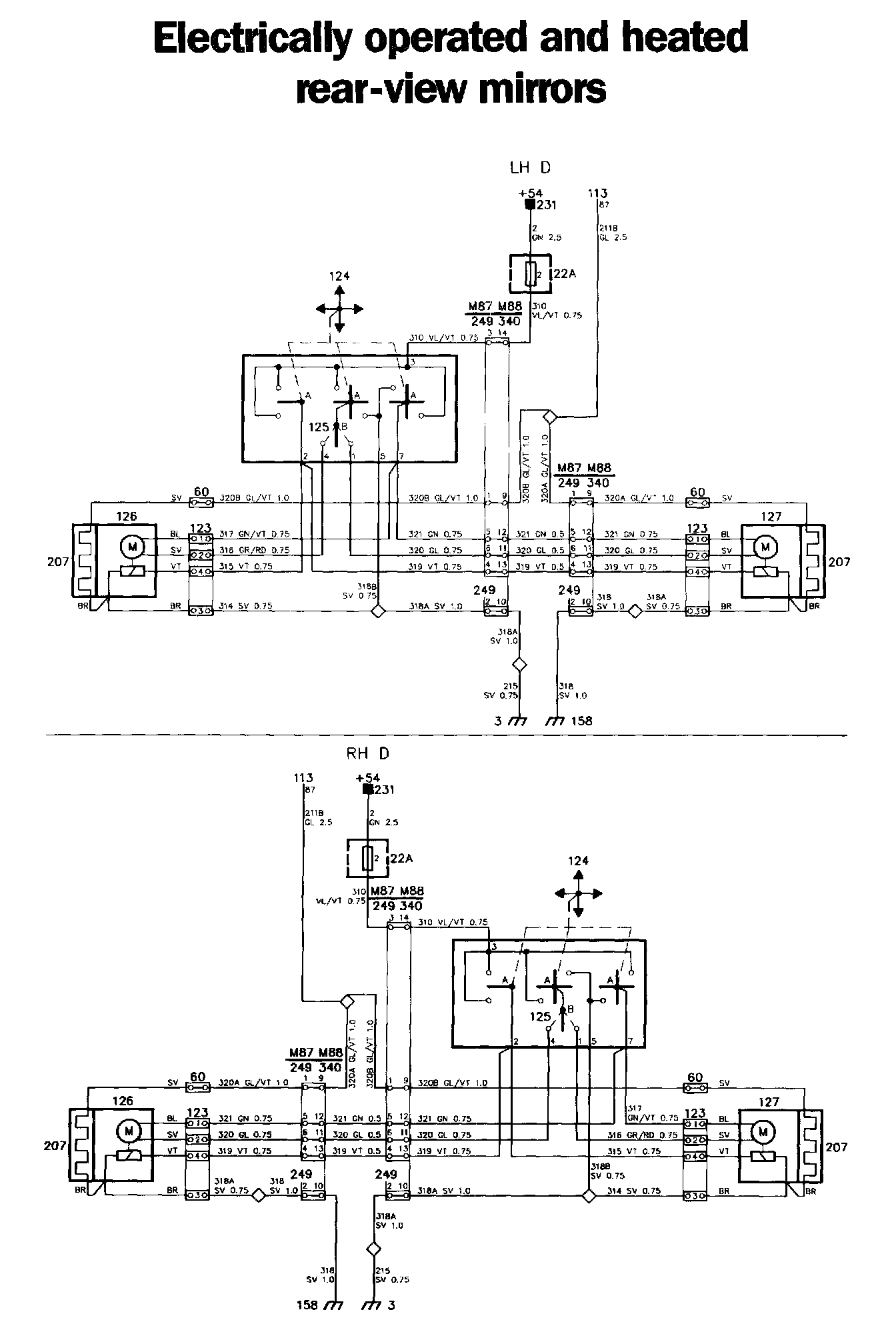

System Diagram

Mirror Diagrams:

Mirror Components:

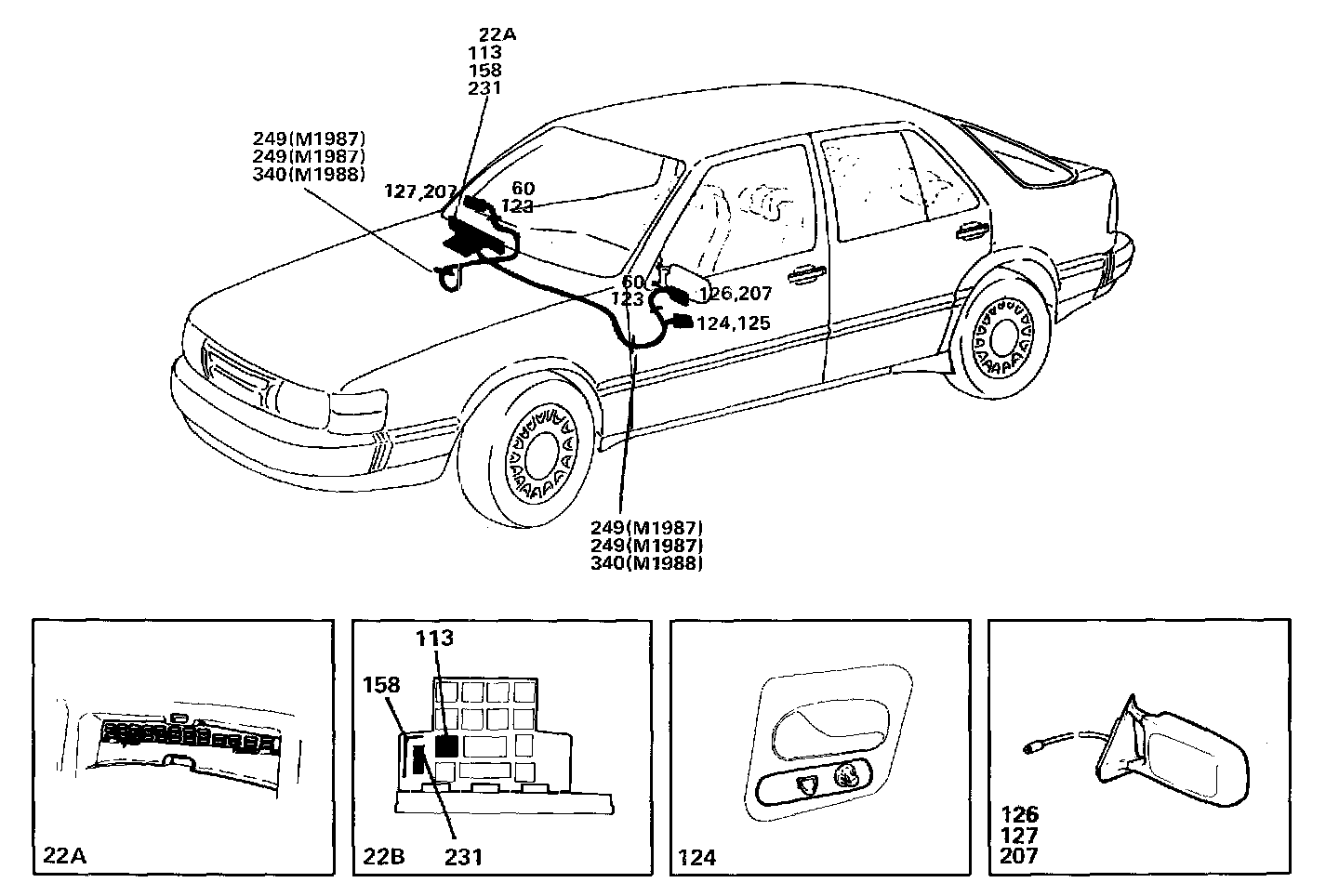

Locations of components

3 Earthing point, facia
At the left-hand front speaker socket

22A Fuse board
Behind the access panel in the glove compartment

60 Single-pole connector
One in the left-hand front door
One in the right-hand front door

113 Relay/time-delay relay for the rear window heater
In the electrical distribution box behind the glove compartment

123 Four-pole connector
One in the left-hand front door
One in the right-hand front door

124 Switch for the rear-view mirrors
In the driver's door

125 Left/right selector switch for the rear-view mirrors
In the driver's door

126 Motor for the left-hand rear-view mirror
In the left-hand front door

127 Motor for the right-hand rear-view mirror
In the right-hand front door

158 Negative distribution terminal
In the electrical distribution box behind the glove compartment

207 Heating element
In each rear-view mirror

231 Distribution terminal +54
In the electrical distribution box behind the glove compartment

249 Seven-pole connector (1987)
Two inside the cable entry to each A-pillar

340 22-pole connector (1988)
One in each A-pillar

Operation
The outer rear-view mirrors are operated by means of a four-position switch and a selector on the drivers side.

The heating elements for the outer rear-view mirrors are switched on and off by means of the switch for the electrically heated rear window.

The supply is taken from fuse 2 to terminal 3 of switch A, which has four positions. Selector B is used for selecting the outer rear-view mirror (left-hand or right-hand) which is to be operated by means of switch A.

The positions of the switches are shown in the figure below:

Position I - right-hand mirror (to turn outwards).

The supply is run from terminal 3, across the contacts in switch A and terminal 7to motor 127. Then through the motor to terminal 1, across the contacts of selector B and terminal 5 to earth.

Position II - right-hand mirror (to turn inwards).

The supply is run from terminal 3, across the contacts of switch A and terminal I to motor 127. Then through the motor to terminal 7, across the contacts in selector A and terminal 5 to earth.

Positions II and IV - right-hand mirror (to turn down or up).

The motor is controlled in the same manner as in positions I and III, except that the supply from terminal 3 is run across the switch to terminal 2 and then to the solenoid and to earth. The solenoid turns the motor to a different position, so that the mirror angle will change vertically.

Heating elements 207 for the outer rear-view mirrors are supplied through cables 320A and 320B. See the section entitled "Electric heating for the rear window".

Fault-tracing hints
The outer rear-view mirrors will be operative as soon as the ignition switch is set to the drive position.

1. Check fuse 2 and check that the supply to it is live.
2. Check the voltage at terminal 3 of switch 124.
3. Operate the switch and check that the supply to motors 126 and 127 is live.
4. Check the connectors, wiring and earth connections.
